thomann TP 105 MA User Manual

thomann TP 105 MA User Manual

Active 2 way full-range speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TP 105 MA
active 2 way
full-range speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP 105 MA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann TP 105 MA

Summary of Contents for thomann TP 105 MA

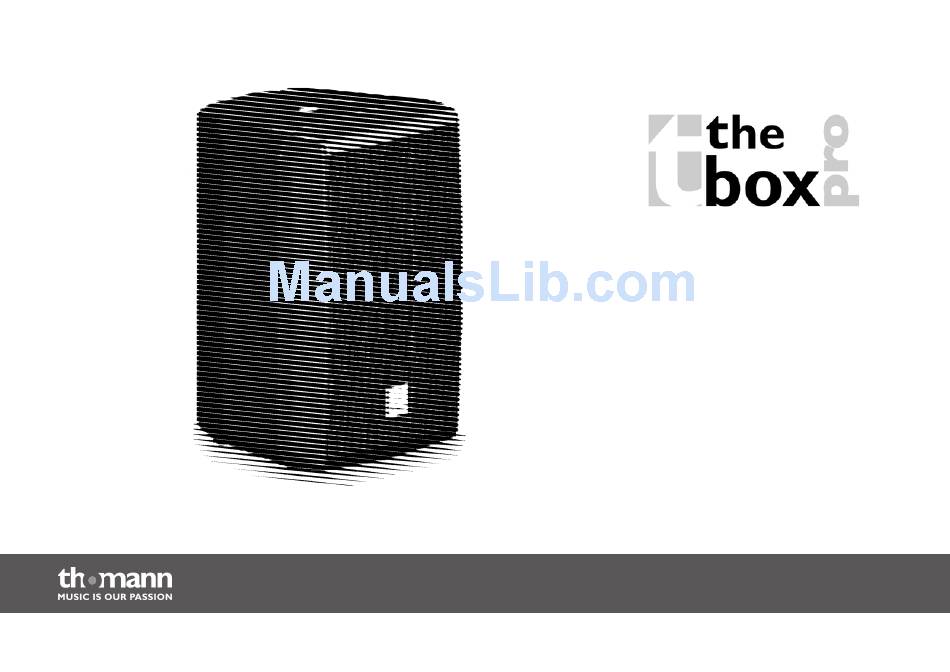

  • Page 1 TP 105 MA active 2 way full-range speaker user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 23.01.2013...

  • Page 3: Table Of Contents

    General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................14 4.2 Hanging the speaker........................15 4.3 Pin assignment..........................15 Connections and operating elements................... 19 Technical specifications........................23 Troubleshooting............................25 Protecting the environment......................28 TP 105 MA...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. TP 105 MA...
  • Page 6 General notes Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. active 2 way full-range speaker...

  • Page 7: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. TP 105 MA...
  • Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
  • Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. TP 105 MA...
  • Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 11: Features

    Features Features Special features of this device: 2-way system: dome tweeter and 5" woofer XLR, 1/4" and RCA connections M6 rigging points on top side and bottom Tripod and wall mounting possible with optional accessories TP 105 MA...

  • Page 12: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 13 Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. TP 105 MA...

  • Page 14: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 15: Hanging The Speaker

    ‘flying mode’. 4.3 Pin assignment You can use XLR and 1/4" plugs with balanced or unbalanced wiring. In the following, we will give you an overview of the various options. TP 105 MA...
  • Page 16 Installation XLR connections for signal in XLR mounting sockets serve as signal inputs, XLR mounting plugs serve as signal outputs. and outputs Drawing and table indicate the XLR pin assignment. Balanced wiring: Ground, shielding Positive signal (+) Negative signal (–) Unbalanced wiring: Ground, shielding Signal...
  • Page 17 Drawing and table indicate the pin assignment of a 1/4" TS phone plug to be used.. and outputs Unbalanced wiring (1/4" TS phone plug): Signal Ground, shielding Unbalanced wiring (1/4" TRS phone plug): Signal 2, 3 Ground, shielding TP 105 MA...
  • Page 18 Installation Balanced wiring (1/4" TRS phone plug): 1 (Tip) Positive signal (+) 2 (Ring) Negative signal (–) 3 (Sleeve) Ground, shielding active 2 way full-range speaker...

  • Page 19: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Rear panel TP 105 MA...
  • Page 20 Connections and operating elements 1 Rotary control [LEVEL] Use this knob to adjust the input signal level. 2 Push button [MIDFIELD / NEARFIELD] Use this switch to select different EQ characteristics and thus the operating mode of the speaker. MIDFIELD: monitor operation NEARFIELD: computer operation or desktop speaker 3 XLR mounting socket LINE IN BALANCED 4 1/4"...
  • Page 21 This LED lights up red when the output signal is limited by the device due to an excessive input signal level. 8 LED ON This LED lights up green when the device is turned on and the supply voltage is available. 9 IEC chassis connector AC Connection for mains supply voltage. TP 105 MA...
  • Page 22 Connections and operating elements 10 Mains switch [POWER] Turns the unit on or off. 11 Rotary switch [LINE VOLTAGE] This switch is used to adapt the device to your local power grid. 120: AC 105…120 V 240: AC 210…240 V active 2 way full-range speaker...

  • Page 23: Technical Specifications

    XLR and phone socket: 0.775 V / 0 dB RCA socket: 0.245 V / –10 dB Input impedance XLR and phone socket: 20 kΩ (balanced), 10 kΩ (unbalanced) RCA socket: 10 kΩ (unbalanced) Dispersion (V × H) 60° × 90° TP 105 MA...
  • Page 24 Technical specifications Operating supply voltage AC 210 – 240 V , 50 Hz AC 105 – 120 V , 60 Hz Power consumption 100 W Dimensions (W × D × H) 175 mm × 170 mm × 260 mm Weight 3.6 kg active 2 way full-range speaker...

  • Page 25: Troubleshooting

    3. Check for proper connection of the signal cable. 3. Check the signal cable and/or the signal source. 4. Try using another signal cable. When the music is loud, the high HF limiting is active. Reduce the volume. frequencies plummet TP 105 MA...
  • Page 26 Troubleshooting Symptom Remedy There's distortion The input signal is too strong. Reduce the signal level. Never operate the speaker box with such a high level, that the BIN/LIMIT LED lights up red constantly! There's different channel levels 1. Check, whether the same kind of cables (balanced, unbalanced) is used for both channels.
  • Page 27 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. TP 105 MA...

  • Page 28: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 29 Notes TP 105 MA...
  • Page 30 Notes active 2 way full-range speaker...
  • Page 32 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
