CEL Robox Quick Start Manual page 6

Hardware Overview

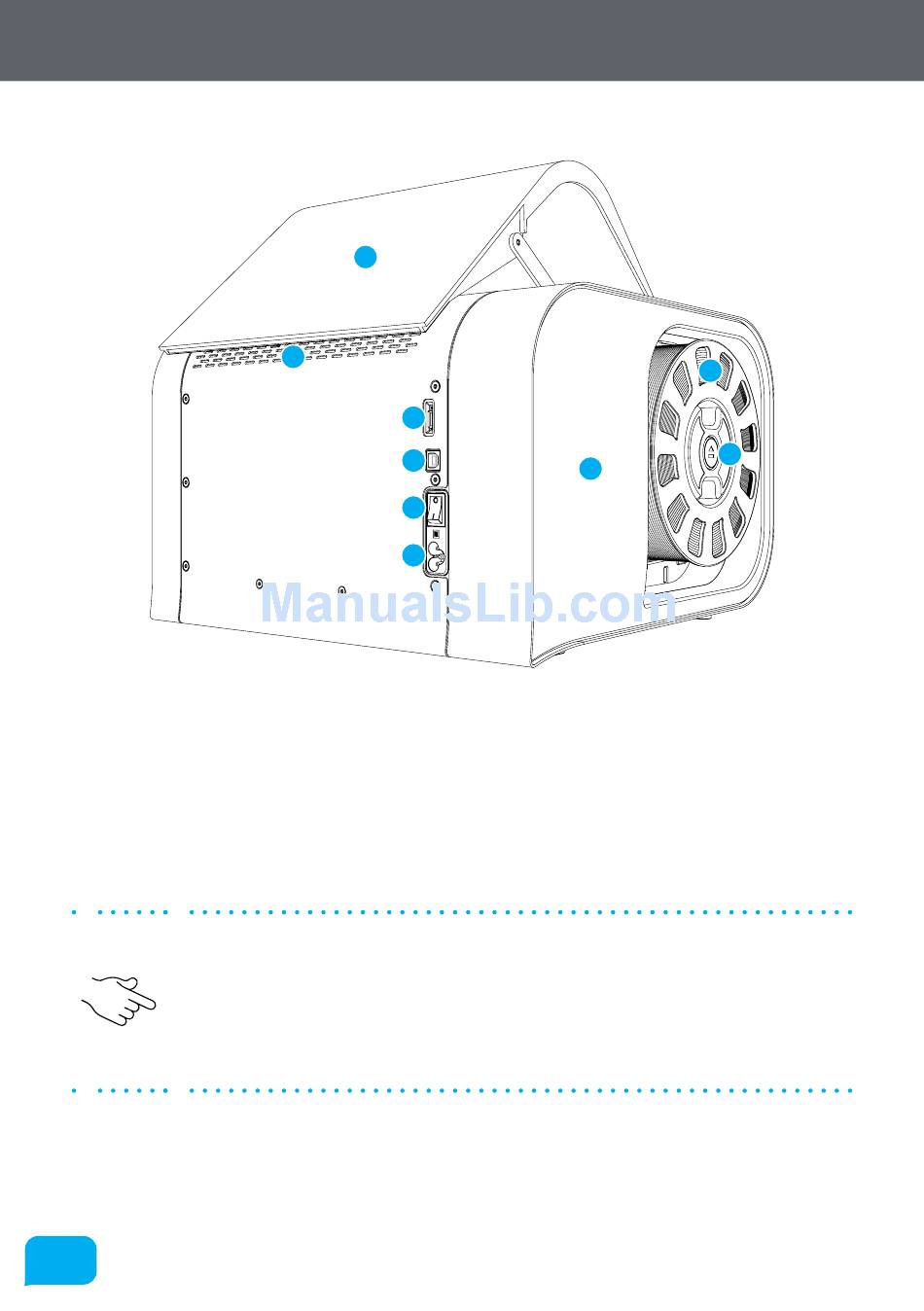

This view shows the rear connections of Robox® and the SmartReel™ location.
1 microSD Card Flash Storage
2 USB Type B Socket
3 Power Switch
4 C5 'Cloverleaf' Power Inlet
5 Robox® SmartReel™
•
Although there is a microSD card accessible from the back of Robox®, this
cannot be read by any other machine and is only for use as internal flash
storage - access is provided only for diagnostic/repair purposes.
•
Do NOT connect the USB cable until you have completed the software
installation on the following page.
6
8
7
1
2
3
4
www.cel-robox.com
9
6 Pause/Resume/Eject Button
7 Outlet Vents
8 Door
9 Side Cover
5
6
