Hardware Setup

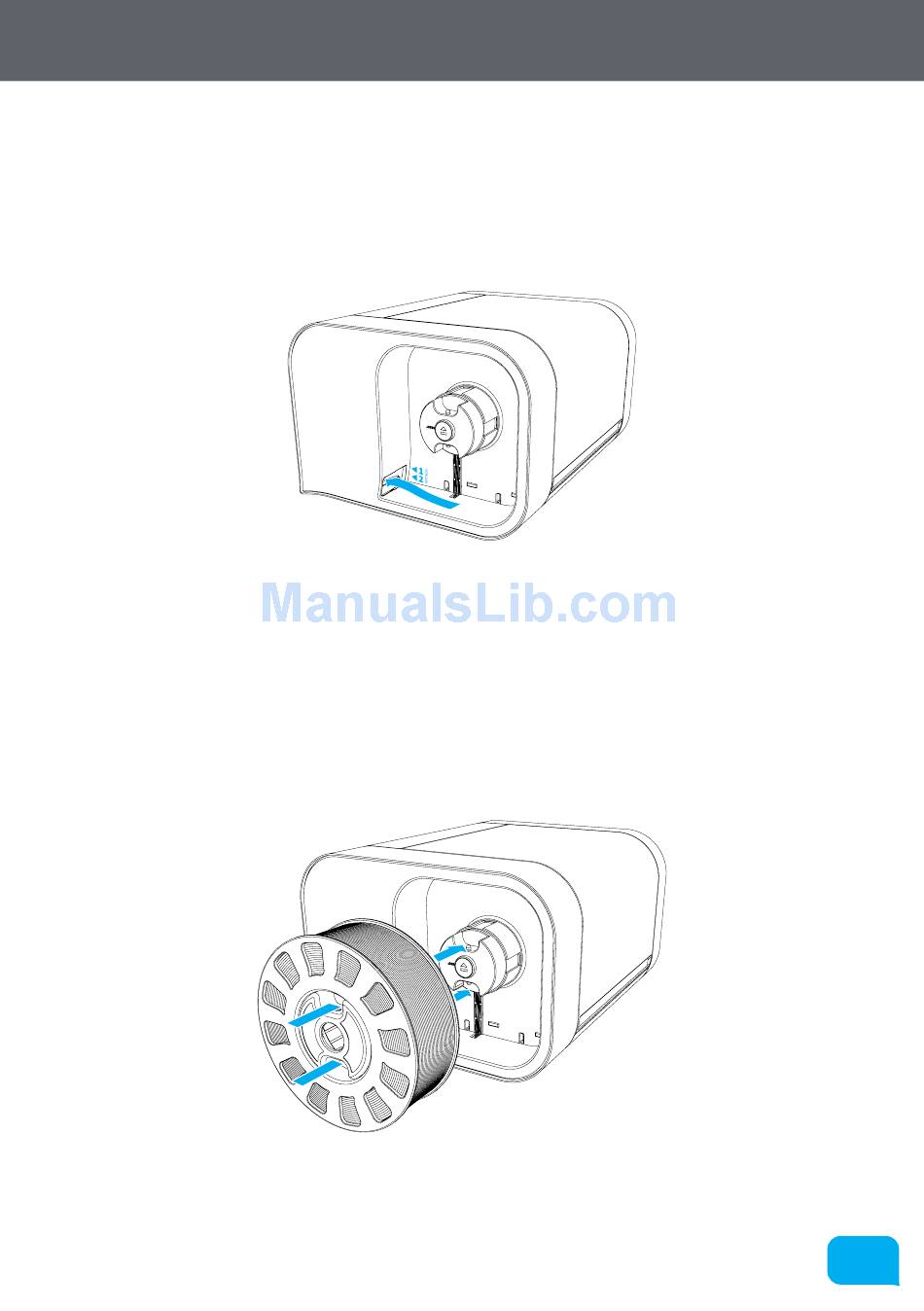

Feeding to the Head
Simply feed the end of the filament into one of the two extruder entrances
located in the bottom-left of the reel storage dock. If only one extruder is installed
in your machine, use the top path marked '1' . It is much easier to perform this
operation BEFORE installing the reel into the dock.
Once the filament reaches the extruder, you will hear the motor start; at this point
continue to feed in until you feel the filament has been grabbed. Robox® will then
automatically feed the material all the way to the head.
Installing the Reel
Finally, install the SmartReel™ into the dock, you should hear a click when it
is correctly located, and it should appear as a recognised reel in AutoMaker™.
Congratulations! You're now ready to print.
