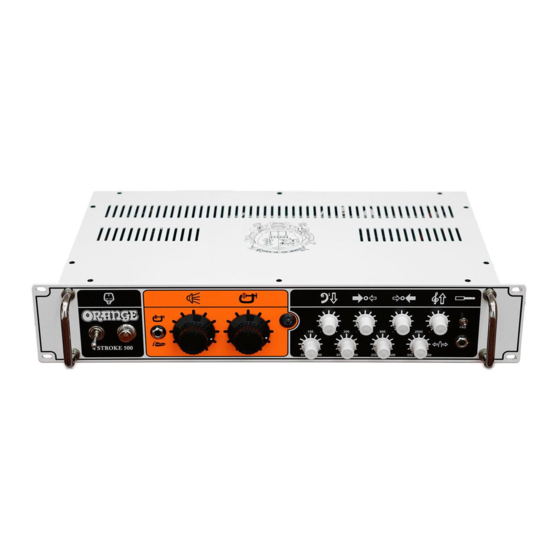

- Page 1 4 STROKE BASS AMPLIFIER SERIES USER MANUAL ORANGE MUSIC ELECTRONIC CO. LTD LONDON, ENGLAND Est. 1968...
- Page 2 ‘Voice of the World’ heard. Welcome to the Orange family. THE 4 STROKE SERIES The 4 Stroke Series is our offering to the demanding modern bass player – everything you need, and nothing you don’t. Featuring all-analogue circuitry throughout, these amps are all about powerful, full-bodied tones with an organic delivery that has passed by a generation of players confronted with an array of lifeless digital offerings.
-
Page 3: Important Safety Instructions
Failure to heed the instructions will result in severe injury or death. This Orange product complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard this electrical/electronic equipment in domestic household waste in the European Union. -
Page 4: Before Using Your Amplifier
The voltage selector switch and mains fuse are set at the factory for the country or region in which this Orange product is intended to be sold. To prevent serious damage to the product, ensure that the rated AC mains voltage indicated on the product's rear panel agrees with the mains voltage from your AC mains outlet before connecting the supplied mains cord. -
Page 5: Front Panel Features
HIGH MID and TREBLE frequency bands are both set to 550Hz, the effect of their CUT/BOOST controls is combined. Connect a latching footswitch (e.g. Orange FS-1) to this jack socket to remotely engage/defeat the compression circuit. Use a standard instrument/tip-sleeve (mono) cable to connect the footswitch. -
Page 6: Rear Panel Features
The mains fuse is located in the tray directly below the AC Mains Inlet. If the mains fuse blows, replace only with the exact rating for your region. Use only the correct fuse type. If the mains fuse repeatedly blows, contact your Orange dealer. MAINS FUSE... - Page 7 Subject to the terms and conditions of your Orange distributor, you can extend this period for free by registering your purchase on our website. Please retain all documents and proof of purchase/receipt for your records.
- Page 8 FOUR STROKE SERIES USER MANUAL SERIOUS BASS AMPLIFICATION V1.0...
