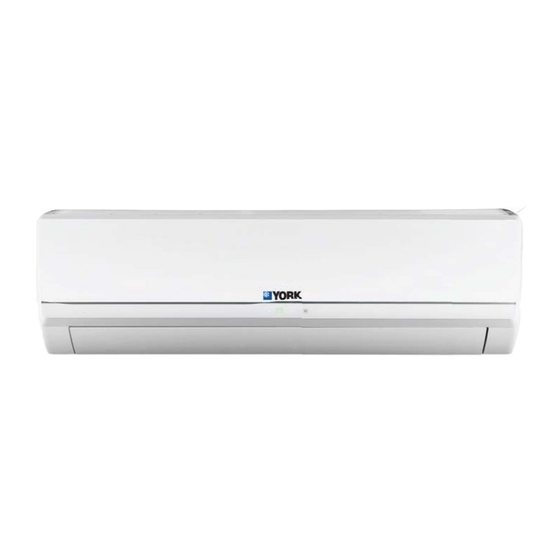

USER'S MANUAL
Mini-Split Air Conditioner
YEHJZH009-24BAM1ABX
YEHJZH009-24BAM1AKX
Read this manual before installation and operation
Make sure that it is well kept for later reference
If you have lost the Owner's Manual, please sent email to
DMEA.Technical-Support@jci.com for electronic version.
UYHJZHAMQ-140505
Advertisement
Table of Contents
Related Manuals for York YEHJZH009-24BAM1ABX
Summary of Contents for York YEHJZH009-24BAM1ABX
- Page 1 USER’S MANUAL Mini-Split Air Conditioner YEHJZH009-24BAM1ABX YEHJZH009-24BAM1AKX Read this manual before installation and operation Make sure that it is well kept for later reference If you have lost the Owner’s Manual, please sent email to DMEA.Technical-Support@jci.com for electronic version. UYHJZHAMQ-140505...
-
Page 2: Table Of Contents
Content Operation Notices Precautions......................1 Parts Name......................6 Screen Operation Guide Buttons on remote controller..................7 Introduction for icons on display screen..............7 Introduction for buttons on remote controller............8 Introduction for special function................13 Operation guide....................Replacement of batteries in remote controller............Emergency operation .................. -
Page 3: Precautions
Precautions WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
- Page 5 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
- Page 6 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
- Page 7 Precautions WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.
-
Page 8: Parts Name
Parts Name Indoor Unit air inlet aux.button horizontal louver air outlet cooling power receiver indicator indicator window display heating temp. drying indicator indicator indicator (Display content or position may be different from above remote controller graphics, please refer to actual products) NOTICE: Actual product may be different from above graphics, please refer to actual products. -
Page 9: Buttons On Remote Controller
Buttons on remote controller ON/OFF button FAN button MODE button +/- button TURBO button button button CLOCK button TIMER ON/ TIMER OFF button TEMP button button (before opening cover (after opening cover I FEEL button ON/OFF button LIGHT button X-FAN button FAN button QUIET button MODE button... -
Page 10: Introduction For Buttons On Remote Controller
Introduction for buttons on remote controller Note: After putting through the power, the air conditioner will give out a sound. Operation indictor " " is ON (red indicator). After that, you can operate the air conditioner by using remote controller. Under on status, pressing the button on the remote controller, the signal icon "... - Page 11 Introduction for buttons on remote controller Presetting temperature can be decreased. Press this button, the temperature can be set up, continuously press this button and hold for two seconds, the relative co- ntents can quickly change, until unhold this button and send the order that the ( ) signal will be displayed all the time.
- Page 12 Introduction for buttons on remote controller button, 2 seconds later, it quickly change, the way of change is: During the initial 2.5 seconds, ten numbers change in the one place of minute, then the one place is constant, ten numbers change in the tens place of minu te at 2.5 seconds speed and carry.
- Page 13 Introduction for buttons on remote controller LIGHT button Press this button at unit On or Off status, Light On and Light Off can be set up. After powered on, Light On is defaulted. X-FAN button Pressing X-FAN button in COOL or DRY mode, the icon is displayed and the indoor fan will continue operation for 2 minutes in order to dry the indoor unit even though you have turned off the unit.
- Page 14 Introduction for buttons on remote controller (4) When setting the initial temperature 30 , under this temperature setting, after 7hours, the temperature will be decreased 1 , after that the unit will keep on running under this temperature; In Heat mode: (1) Under the initial presetting temperature 16 , it will run under this setting tem- perature all along.
-
Page 15: Introduction For Special Function
Introduction for special function About X-FAN function This function indicates that moisture on evaporator of indoor unit will be blowed after the unit is stopped to avoid mould. 1. Having set X-FAN function on: After turning off the unit by pressing ON/OFF button indoor fan will continue running for about 2 min. -
Page 16: About Switch Between Fahrenheit And Centigrade
Introduction for special function About switch between Fahrenheit and Centigrade Under status of unit off, press MODE and - buttons simultaneously to switch Combination of "TEMP" and "CLOCK" buttons: About Energy - saving Function Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving fun- ction. -
Page 17: Operation Guide
Operation guide General operation 1. After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3. -
Page 18: Emergency Operation
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: air conditioner. When the air conditioner is turned on, it will operate under auto mode. - Page 19 Clean and Maintenance Open panel Pull out the panel to a certain ) to clean panel cover tightl . WARNING operation environment, clean frequency can be increased.
- Page 20 Clean and Maintenance NOTICE: Checking before use-season 1. Check whether air inlets are blocked. 2. Check whether air switch,plug and socket are in good condition. 4. Check whether drainage pipe is damaged. NOTICE: Checking after use-season 1. Disconnect power supply. ’s panel.
-
Page 21: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still Phenomenon Check items Solution (such as static electricit , stable the plug after about 3min, and voltage)? then turn on the unit again. within the signal receiving range? Indoor unit... - Page 22 Malfunction analysis...
- Page 23 Malfunction analysis Phenomenon Check items Solution Odours are such as furniture and cigarette, emitted etc. Air conditio- ner operates such as thunder, wireless power, and then turn on the abnormally devices, etc. unit again. suddenly “Water turned off just now? the unit, which is a normal noise phenomenon.
- Page 24 Malfunction analysis Error Code WARNING...
-
Page 25: Installation Dimension Diagram
Installation dimension diagram Space to the wall At least 15cm... -
Page 26: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: Selection of installation location... -
Page 27: Requirements For Electric Connection
Requirements for electric connection Safety precaution 1. Must follow the electric safety regulations when installing the unit. air switch. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner. -
Page 28: Installation Of Indoor Unit
Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3. - Page 29 Installation of indoor unit Indoor outdoor Note: opening the hole. The plastic expansion particles are 5-10 locally. Step four: outlet pipe 1. The pipe can be led out in the 2. When select leading out the pipe direction of right, rear right, left or from left or right, please cut off the rear left.
- Page 30 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench 30~40 union nut pipe torque wrench indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape. insulating pipe 1-4 during installation.
- Page 31 Installation of indoor unit 2. Make the power connection wire go cable-cross through the cable-cross hole at the back hole of indoor unit and then pull it out from the front side. power connection wire 3. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color;...
- Page 32 Installation of indoor unit Step eight: bind up pipe drain hose 1. Bind up the connection pipe, power connection pipe band cord and drain hose with the band. indoor unit indoor and outdoor power cord pipe indoor power cord liquid pipe 3.
-
Page 33: Check After Installation
Check after installation Items to be checked Possible malfunction The unit may drop, shake or emit noise. Have you done the refrigerant leakage test? (heating) capacity. It may cause condensation and water dripping. It may cause condensation and water Is water drained well? dripping. -
Page 34: Configuration Of Connection Pipe
Configuration of connection pipe 1. Standard length of connection pipe fference. Max length Max length Cooling Max height Cooling Max height of connec- of connec- difference difference tion pipe tion pipe 4. The additional refrigerant oil and refrigerant charging required after prolonging connection pipe of connection pipe. - Page 35 Configuration of connection pipe Additional refrigerant charging amount for R22, R407C, R410A and R134a Diameter of connection pipe Outdoor unit throttle Liquid pipe(mm) Gas pipe(mm) Cooling only(g/m) Cooling and heating(g/m)
-
Page 36: Pipe Expanding Method
Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port the distance of indoor unit and hard outdoor unit. mold expander pipe... -
Page 37: Wired Controller (Optional)
Wired Controller (Optional) If the product you bought is equipped with wired controller, please refer to the following introductions of wired controller. 1 Displaying Part Fig1.1.1 Outline of wired controller 1.1 LCD Display of Wired Controller Fig.1.1.2 LCD display... -
Page 38: Instruction To Lcd Display
Wired Controller (Optional) 1.2 Instruction to LCD Display Table 1.1 Symbols Description Swing function Air exchange function (this function is yet unavailable for this unit). Sleep function (Only sleep 1). Each kind of running mode of indoor unit (auto mode) Cooling mode Dry mode Fan mode... - Page 39 Wired Controller (Optional) 2 Buttons 2.1 Layout of Buttons 2.2 Functions of Buttons Table 2.1 Name Function Enter/Cancel Function selection and cancellation. Running temperature setting of the indoor unit, range:16~30 Timer setting, range:0.5-24 hr. Setting of the high/middle/low/auto fan speed. Mode Setting of the Cooling/Heating/Fan/Dry/Auto mode of the indoor unit.
-
Page 40: Operation Instructions
Wired Controller (Optional) 3 Operation Instructions 3.1 On/Off Press On/Off to turn on the unit and turn it off by another press. Note: The state shown in Fig.3.1.1 indicates the “Off” state of the unit after power on. The state shown in Fig.3.1.2 indicates the “On”... -
Page 41: Fan Setting
Wired Controller (Optional) 3.4 Fan Setting Under the “On” state of the unit, press Fan and then fan speed of the indoor unit will change circularly as shown in Fig.3.4.1. Middle High 3.5 Timer Setting Under on-state of the unit, Press Timer button to set timer off of the unit. Under off-state of the unit, press Timer button to set timer on of the unit in the same way. - Page 42 Wired Controller (Optional) Timer on setting under the “Off” state of the unit is shown as Fig.3.5.2. Fig.3.5.2 Timer on Setting under the “Off” State of the Unit Timer range: 0.5-24hr. Every press of will make the set time increased or decreased by 0.5hr.
- Page 43 Wired Controller (Optional) 3.6 Swing Setting Swing On: Press Function under on state of the unit to activate the swing function. In this case, Swing Off: When the Swing function is on, press Function to enter the Swing setting interface,with blinking.
-
Page 44: Sleep Setting
Wired Controller (Optional) 3.7 Sleep Setting Sleep on: Press Function under the On state of the unit till the unit enters the Sleep setting Sleep off: When the Sleep function is activated, press Function to enter the Sleep setting status. After that, press Enter/Cancel to cancel this function. In the Cooling or Dry mode, the temperature will increase by 1°C after the unit runs under Sleep1 for 1hr and 1°C after another 1hr.After that, the unit will run at this temperature. - Page 45 Wired Controller (Optional) 3.8 Turbo Setting Turbo function: The unit at the high fan speed can realize quick cooling or heating so that the room temperature can quickly approach the setting value. In the Cooling or Heating mode, press Function till the unit enters the Turbo setting status and When the Turbo function is activated, press Function to enter the Turbo setting status and then press Enter/Cancel to cancel this function.
- Page 46 Wired Controller (Optional) 3.9 E-heater Setting E-heater (auxiliary electric heating function): In the Heating mode, E-heater is allowed to be Once the wired controller or the remote controller enters the Heating mode, this function will be turned on automatically. Press Function in the Heating mode to enter the E-heater setting interface and then press Enter/Cancel to cancel this function.
-
Page 47: Blow Setting
Wired Controller (Optional) 3.10 Blow Setting Blow function: After the unit is turned off, the water in evaporator of indoor unit will be automatically evaporated to avoid mildew. In the Cooling or Dry mode, press Function till the unit enters the Blow setting status and then press Enter/Cancel to active this function. -
Page 48: Other Functions
Wired Controller (Optional) 3.11 Other Functions a. Lock Upon startup of the unit without malfunction or under the “Off” state of the unit, press the same time for 5s till the wired controller enters the Lock function. In this case, LCD displays After that, repress these two buttons at the same time for 5s to quit this function. - Page 49 Wired Controller (Optional) Fig.4.2 Fig.4.2 shows the installation steps of the wired controller, but there are some issues that need your attention. 1) Prior to the installation, please firstly cut off the power supply of the wire buried in the installation hole, that is, no operation is allowed with electricity during the whole installation.
- Page 50 Wired Controller (Optional) and connection lines between the indoor and outdoor unit, with a minimum interval of 20cm, otherwise the communication of the unit will probably work abnormally. If the air conditioning unit is installed where is vulnerable to electromagnetic interference,then the signal and communication lines of the wired controller must be the shielding twisted pair lines.
- Page 51 Wired Controller (Optional) Table 5.1 Meaning of Each Error Error Error Error Error Code Code Return air temperature sensor open/ Drive board communication error short circuited evaporator temperature sensor open/ Compressor overheating protection short circuited Indoor unit liquid valve temperature Indoor and outdoor units unmatched sensor open/short circuited Indoor gas valve temperature sensor...
- Page 52 www.johnsoncontrols.com 2014 Johnson Controls, Inc. Doc. No.:UYHJZHAMQ-20141225 Johnson Controls reserve the right to change product features without prior notice. 66129917572...
