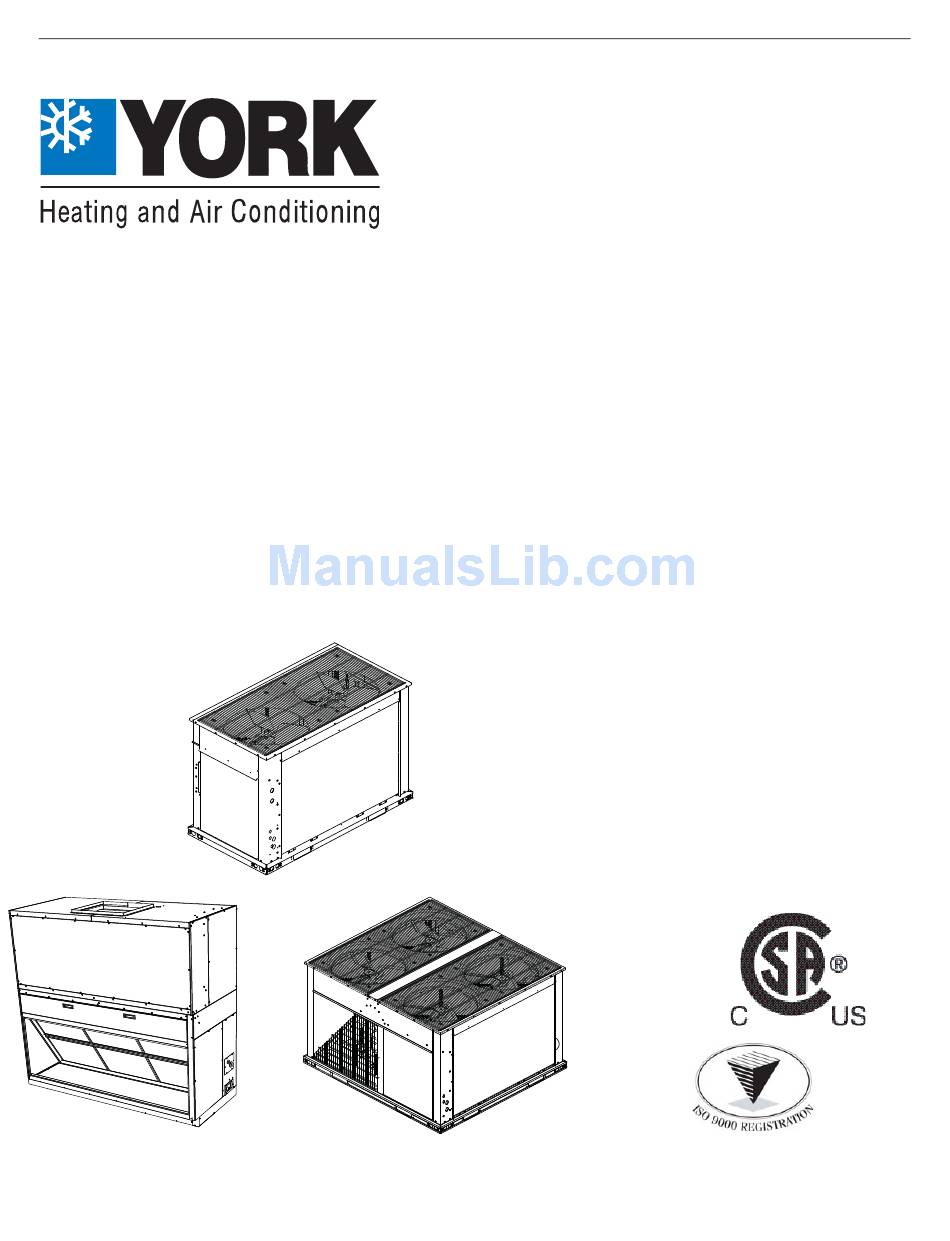

York R-410A Technical Manual

TECHNICAL GUIDE
R-410A
SPLIT-SYSTEM
AIR-COOLED CONDENSING UNITS
AND AIR HANDLERS
PREDATOR® SERIES
YC090-240 and YD120-240
CONDENSING UNIT MODELS
PC090-240 and PD180-240
HEAT PUMP UNIT MODELS
NC090-240 and ND120-240
AIR HANDLING UNIT MODELS
7.5 - 20 Ton
60 Hertz
NC\ND Air Handlers
®

Description

Predator® condensing units and heat pumps are completely
assembled, piped and wired at the factory to provide a single-piece
unit for shipment and rigging. Each unit is pressurized with a holding
charge of refrigerant R-410A for storage and/or shipping.
The compact design, clean styling, small footprint, and quiet operation
make these condensing units and heat pumps suitable for almost any
outdoor location. On rooftops... because they weigh much less than a
single package unit of similar capacity and are much easier to rig and
support. On the ground... because the footprint is compact allowing a
variety of applications.
Both the Predator® condensing units and heat pumps are equipped
with reliable Simplicity® microprocessor controls to assure proper
operation and unit protection for long product life. Products from 10 to
20 tons are available in single or dual (2 or 4 pipe) refrigerant circuits
for redundancy in operation and various application choices such as
one outdoor unit matched with two indoor units.
The Predator® air handling units are completely assembled units,
including a well-insulated cabinet, a DX cooling coil with copper tubing,
aluminum fins, expansion valve(s), distributor(s), 2" throwaway filters,
a centrifugal blower, a blower motor, an adjustable belt drive, a blower
motor contactor and a small holding charge of refrigerant R-410A.
Units are shipped in the vertical position ready for field installation, but
can be easily converted to horizontal position. An added benefit of the
Predator® air handling units is they are designed to operate with either
a condensing unit or a heat pump and no field modification or special
unit is required for heat pump applications.
YC\YD\PC Outdoor Units
YC\YD\PC\PD Outdoor Units
505428-YTG-C-0309
ISO 9001
Certified Quality
Management System
