Paslode PF350-S Operating Manual And Schematic

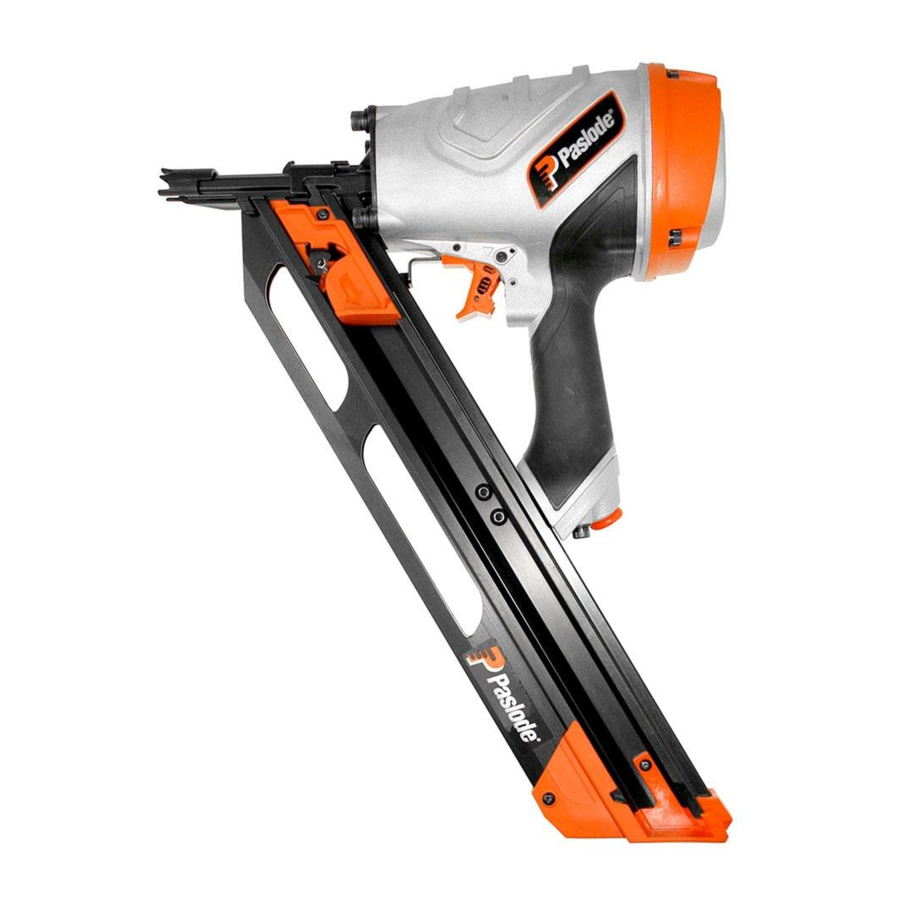

Strip nailer
Hide thumbs Also See for PF350-S:

Advertisement

Table of Contents

P
IMPORTANT!
DO NOT DESTROY
It is the customer s responsibility to have all
operators and service personnel read and
understand this manual.
PRINTED IN U.S.A.
© 2010, Illinois Tool Works, Inc.
502194-11
11/10
04/10
OPERATING MANUAL AND
SCHEMATIC
1
350-S
MODEL PF
Strip Nailer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF350-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paslode PF350-S

Summary of Contents for Paslode PF350-S

  • Page 1 350-S MODEL PF Strip Nailer IMPORTANT! OPERATING MANUAL AND DO NOT DESTROY SCHEMATIC It is the customer s responsibility to have all operators and service personnel read and understand this manual. PRINTED IN U.S.A. © 2010, Illinois Tool Works, Inc. 502194-11 04/10 11/10...

  • Page 2: Table Of Contents

    INTRODUCTION ® The PASLODE PF350-S strip nailer is a quality-built tool designed for use in residential framing applications. This tool will deliver efficient, dependable performance when used according to the manufactures guidelines. Please study this manual including the safety instructions to fully understand the operation of this tool.

  • Page 3: Tool And Fastener Specifications

    TOOL AND FASTENER SPECIFICATIONS TOOL SPECIFICATIONS -S (Part# 502000) MODEL NO. HEIGHT 13” 5" WIDTH LENGTH 18" 7 lbs. 8oz. WEIGHT 80 to 120 p.s.i. (5.5 to 8.3 bars) OPERATING PRESSURE FASTENER SPECIFICATIONS NAIL LENGTH 2" -3-1/2" .113 - .131 SHANK DIAMETER TOOL AIR FITTINGS This tool uses a 3/8”...

  • Page 4: Safety Instructions

    WARNING Failure to follow any of the above instructions could result in severe personal injury to tool user and bystanders or cause damage to tool and property. Contact your local Paslode Representative for presentation of Paslode’s Safety Awareness Program...

  • Page 5: Tool Installation And Operation

    A small tray under the benchtop can hold DIRECTION the fastener supply and the tool when not in use. WORK CONTACT 6. If this tool does not work when it is first connect- ELEMENT ed, do not try to make repairs. Call your Paslode representative immediately.
  • Page 6 TOOL OPERATION - continued Sequential Operation The sequential operating kit prevents succesive or "bounce" driving. Loading of Nails Step 1 - Grasp the handle firmly. ■ Depress the work contacting element and hold it against the work surface before pulling the trigger. Step 2 - Insert one or two strips of nails into the rear of the magazine.

  • Page 7: Air Systems

    Filter/Regulator/Lubricator Units Filter/regulator/lubricator units that can supply All pipes supplying air have a large enough enough air and protection for Paslode tools inside diameter to ensure adequate air supply. must meet the following specifications: The main supply pipe slopes down, away from Minimum 3/8 inch NPT port size .
  • Page 8 Use the air consumption chart in the Tool Schematic for eaxh tool when calculating the For example, given a 20 hp electric compressor operating requirements for the tools. Paslode supplying approximately 80 cfm of air at 120 psi tools are designed to operate efficiently...

  • Page 9: Features And Benefits

    FEATURES & BENEFITS Powerful Motor Tool Less Depth of Consistently drives Drive Compact into all engineered Provides precise control lumber. Design of nail depth without adjusting Able to get into the compressor. tight spots (on other side) Metal Exhaust Cap For maximun Agressive durability.

  • Page 10: Exploded View And Spare Parts List

    PARTS LEGEND 502000 502004 Air Deflector 502047 Lower W.C.E. 502062 Air De ector Gasket 502046 Upper W.C.E. 501299 S.H.C.S. 1/4-20 x 1” 502049 Detent Ball 502003 Top Cap 502061 Detent Spring 502013 Top Cap Gasket 404361 Roll Pin 1/8” x 1/2” 123984 Valve Spring 502050...
  • Page 11 502000 Piston Assembly #502008 Trigger Valve Assembly #502908 Trigger Assembly Note: Install check band #502435 with thick side down. Upper Work Contact Assembly #502734 Torque Values Seal must be installed IN/LBS in this position.

  • Page 12: Maintenance

    Ensure that the required safety information on the tool is legible. ❑ Reduce the regulated air pressure to 30 psi. ❑ Use only Paslode approved fasteners in the tool, and ❑ Remove all fasteners from the tool. ensure that they are correct for the application. ❑...
  • Page 13 Keep lubricator filled. Keep tool lubricated. Fill with Paslode pneumatic tool lubricant. Part No. 403720. Clean filter element-then blow Prevent clogging of filter with Wash with soap and water or air through filter in direction...

  • Page 14: Troubleshooting

    Make sure correct fasteners are being used. ® Use fasteners that meet Paslode specifications only. Increase air flow to tool -- use larger air lines (3/8 ID minimum). Adjust work contacting element where available.

  • Page 15: Warranty

    ONE-YEAR LIMITED WARRANTY Paslode's sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific A one-year warranty will apply to all parts, except time period.

  • Page 16: Accessories

    Part No. 401382 Sequential Only Trigger Part No. 502253 No Mar Work Contact Part No. 502234 For additional information on Paslode products, visit our website at ® www.paslode.com. For technical support call 1-800-222-6990. To purchase parts and accessories, visit www.itwconstructionparts.com.
