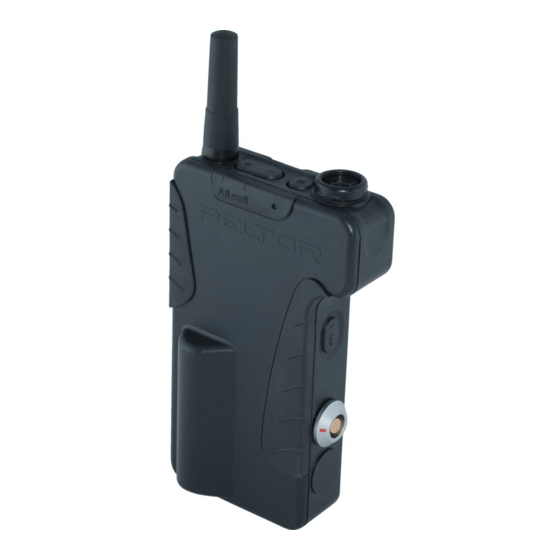

Peltor
DECT-Com II
The Sound Solution
DECT 1.8 GHz System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Peltor DECT-Com II and is the answer not in the manual?

Questions and answers

Summary of Contents for 3M Peltor DECT-Com II

  • Page 1 Peltor DECT-Com II ™ ™ The Sound Solution DECT 1.8 GHz System...
  • Page 2 [+] & [–] All call (short simplex transmission) For latest revised full user’s instructions, please see www.3m.com/peltorcomms on the Internet. Look in section “Rest of the world” and find “PDF LIBRARY”, where you can read or download multilingual information about the Peltor DECT-Com II system! (Fig.
  • Page 3: Table Of Contents

    INDEX INTRODUCTION MAIN UNITS SWITCH A MAIN UNIT ON AND OFF BASE/PORTABLE UNIT PORTABLE UNIT LOG IN TO OR OUT OF A CONFERENCE MAIN UNITS CONTROLS TECHNICAL INFORMATION, MAIN UNITS DC2811, DC2812, DC2815 POWER SUPPLY BATTERIES FIXED MOUNTED POWER SUPPLY ANTENNAS GENERAL ANTENNA OMNI DIRECTIONAL VEHICLE ANTENNA...
  • Page 4: Introduction

    The products in the Peltor DECT-Com II family offer simple and efficient wireless duplex communication with up to 9 active users talking in full conference and additionally up to 40 listeners with possibility to quick “break in” to the conference. In a system with more than 9 users any listening participant can change from listening to speaking.
  • Page 5 When a base unit is ready for use, a voice message “BASE, GROUP 1” is given. The LED on the unit is flashing slower. When a portable unit is ready for use, a voice message “GROUP 1” is given. The LED on the unit is lit. Notice: All units are always started in listen only mode in group 1.
  • Page 6 After the first turn off of the base unit, the configuration of the system is fixed and future change of units has to be handled according to description above. If your system is delivered pre-registered in a certain configuration by your Authorised Peltor DECT-Com II Dealer* , all future registration has to be handled by your Authorised Peltor DECT-Com II Dealer*).
  • Page 7 After the first turn off of the base unit, the configuration of the system is fixed and future change of units has to be handled by your Authorised Peltor DECT-Com II Dealer* If your system is delivered pre-registered in a certain configuration by your Authorised Peltor DECT-Com II Dealer*), all future registration also has to be handled by your Authorised Peltor DECT-Com II Dealer*).
  • Page 8: Log In To Or Out Of A Conference

    Automatic talk mode makes it possible to ensure that all the members in the small group always are speakers in the conference, as soon as they are in range of the base unit. (For further information; contact your Authorised Peltor DECT-Com II Dealer*...
  • Page 9: Main Units Controls

    2.5 MAIN UNITS CONTROLS 2.5.1 MODE The MODE button [M] controls functions of the unit. g Step forward through the MODE steps in the menu by pressing briefly on the [M] button. Voice messages “VOX”, “MICROPHONE”, “VOLUME” are given respectively to confirm the actual mode. g Step backwards through the MODE steps by double press on the [M] button.
  • Page 10 2.5.6 OUT OF RANGE Peltor DECT-Com II is a short range communication system. (See 2.6 TECHNICAL INFORMATION, MAIN UNITS below.) If the portable unit is close to the actual maximum working range from the base unit, a voice message “SIGNAL LOW“ is given in the connected headset.
  • Page 11: Power Supply

    2.6 TECHNICAL INFORMATION, MAIN UNITS DC2811, DC2812, DC2815 Frequency range: 1880 – 1900 MHz Operation mode: Duplex Output power: Max. 250 mW, average 10 mW (portable) / 120 mW (base) Current consumption: Base/Portable unit as base typ. 320 mA (4 portables system) DC2812, DC2815 as portable;...
  • Page 12 Notice: See also 3.1.3 TECHNICAL INFORMATION, DC2033 below. NOTICE! No other power source than the Peltor DECT-Com II mains adapter DC2061 (included in the package at delivery) may be used together with the power supply/holder DC2064! It is equipped with exchangeable European, UK and US type mains connectors, for the input of 100 ─...
  • Page 13 Charging temperature interval: +5°C to +45°C NOTICE! No other power source than the Peltor DECT-Com II mains adapter DC2061 (included in the package at delivery) may be used together with the charger/holder DC2064! It is equipped with exchangeable European, UK and US type mains...
  • Page 14 3.1.3 EXTERNAL BATTERY CARRIER The external battery carrier DC2032 can be mounted on the back of the main unit. It offers extra energy for longer usage time. Any standard batteries (6 x 1.5 Volts, type AA) or rechargeable batteries (6 x 1.2 Volts, type AA) can be used. Notice: It is recommended to extend working time of a main unit used as a portable base, by adding extra energy from batteries in a battery carrier.
  • Page 15: Fixed Mounted Power Supply

    NOTICE! No other power source than the Peltor DECT-Com II mains adapter DC2061 (included in the package at delivery) may be used together with the power supply/holder DC2068! It is equipped with exchangeable European, UK and US type mains connectors, for the input of 100 ─...
  • Page 16: General Antenna

    EXTENSION OF THE SYSTEM The DECT-Com II system may be extended by connecting external communication equipment. a second connector other additional features. Consult your Authorized Peltor DECT-Com II Dealer* for the following options! 5.1 EXTERNAL EQUIPMENT The Extension Base/Portable unit DC2815 is equipped with a connector for connecting external equipment, like...
  • Page 17: Remote Wireless Ptt

    In the list of ACCESSORIES AND SPARE PARTS (see below) you will find adapter cables for some common communication radios, a general telephone cable and a cable for ground mechanic. 5.1.1 FURTHER EXTERNAL EQUIPMENT On demand, Extension Base/Portable unit DC2815 can be equipped with a second connector to further improve the system by connecting even more external equipment.
  • Page 18: Approvals

    ACCESSORIES AND SPARE PARTS Please contact your Authorized Peltor DECT-Com II Dealer* DC2031 Battery lid for use with 3xAA standard batteries in main unit. DC2032 Battery carrier for 6xAA auxiliary batteries (excl. batteries). DC2033 Rechargeable NiMH-accumulator (2100 mAh) DC2035 Screw for battery lid DC2031...
  • Page 19: Warranty

    3M guarantee conformity with the contractual specifications of the quality and performance of the goods. Full information about the Peltor warranty is available on request from your local 3M office. “Non-conformity goods“ should be returned to your Authorized Peltor DECT-Com II Dealer* PROGRAMMING DECT-Com II UNITS Special software and a programming holder is available for customizing several functions in the DECT-Com II system.
  • Page 22 Environmental Safety Division 3M Svenska AB Box 2341, SE-331 02 Värnamo Sweden Phone: +46 (0) 370 65 65 65 Fax: +46 (0) 370 65 65 99 Email: peltorcommunications@mmm.com Please recycle. Printed in Sweden. © 3M 2010. All rights reserved. Internet: www.3M.com/Peltorcomms...
