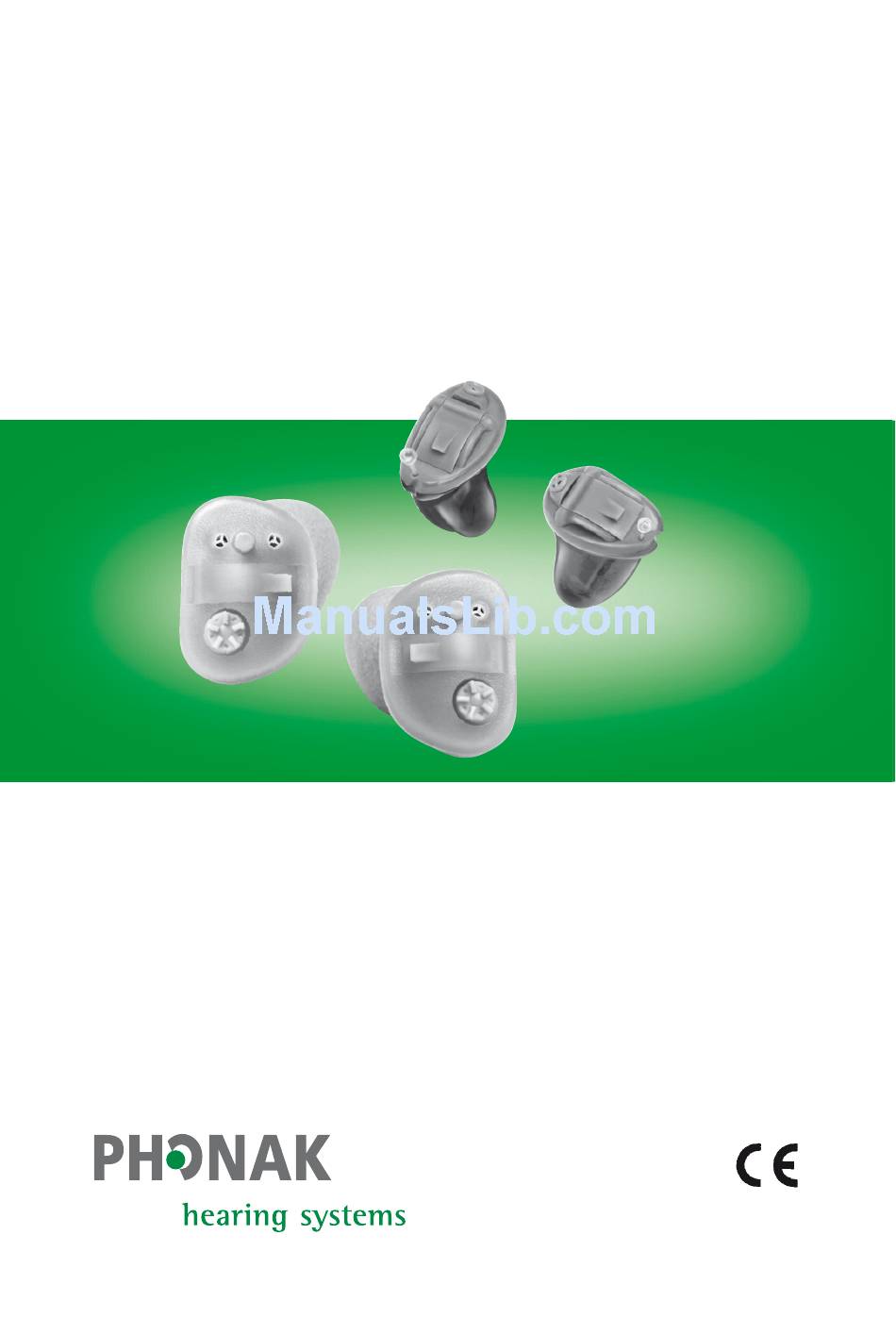

- Page 1 ™ User Guide 0459...
-
Page 2: Table Of Contents
Contents Welcome Description Preparation Replacing the battery Inserting Una in your ear Removing Una from your ear Operation Switching ON /OFF Controlling the volume (optional) Selecting a hearing program Telecoil (optional) EasyPhone plus (optional) Maintenance Important points Warning Service and Warranty... -
Page 3: Welcome
Welcome Your new Una hearing system uses the very latest advances in digital hearing technology. Una provides the highest sound quality and hearing comfort in many hearing situations. High-tech has turned highly sophisticated hearing systems into convenient devices that are easy to use. -
Page 4: Description
Description Una CIC / MC Standard Battery size 10 Una ITC / HS Standard Battery size 312... - Page 5 Standard Battery size 13 Protected Microphone Input (2 on models with AudioZoom technology) Battery compartment with ON / OFF Program switch (optional) Volume control (optional) with ON / OFF Receiver (Sound outlet) Custom made shell Removal handle (Una CIC only)
-
Page 6: Preparation
Preparation Replacing the battery 1) Remove the protective foil from the new battery. 2) Hold the hearing system with the battery compartment upwards and open the battery cover. - Page 7 3) Remove the old battery. 4) Insert the new battery. Please ensure that the “+” sign on the battery (flat side) is on the same side as the “+” sign on the battery cover.
- Page 8 Preparation 5) Gently shut the battery cover, until you feel it “click” into place.
- Page 9 Replacing the battery Handle the battery cover gently and do not use excessive force. Do not try to open the cover further than shown on the drawing. If there is any resistance when closing the cover, ensure that the battery is correctly inserted. The cover will not close if the battery is inserted upside down.
-
Page 10: Inserting Una In Your Ear
Preparation Inserting Una into your ear If possible, select the mute mode (see page 15) before insertion, to avoid whistling. Alternatively, your hearing care professional may have activated a delayed start-up timer. This function delays the activation of the hearing system (for 9 or 15 seconds) after the battery door was closed. - Page 11 Grasp the hearing system between your thumb and index finger, using the hand on the same side you wear your hearing system. Insert it canal end first into the ear canal. Tug gently on your ear lobe and push the hearing system into the correct position.
-
Page 12: Removing Una From Your Ear
Preparation Removing Una from your ear If possible, select the mute mode (see page 15) before removing your Una to avoid whistling. • Una with removal handle Grasp the handle between your thumb and index finger and pull the hearing system upwards out of... - Page 13 • Una without a removal handle Put your thumb behind your lobe, (just below the hard cartilage) and gently press your ear upward to push the hearing system out of the canal. In order to help it along, make chewing movements with your jaw.
-
Page 14: Operation
Operation Switching ON / OFF (without volume control) Switching ON The hearing system is switched ON when the battery cover is closed. Switching OFF To switch the hearing system OFF, open the battery cover. - Page 15 Note Switching Una ON / OFF with volume control see page 16 Your hearing care professional may have delayed the activation of your Una hearing system after switching ON (9 or 15 seconds), in order to avoid any disturbance when placing it in your ear. The activation is confirmed by an acoustic signal.
-
Page 16: Controlling The Volume (Optional)
Operation Controlling the volume (optional) and switching ON / OFF (with volume control) left right down down Increase volume Turn the volume control forwards. Reduce volume Turn the volume control backwards. Note A single beep indicates the default volume setting. -
Page 17: Selecting A Hearing Program
Switching ON Turn the volume control forwards slightly for both left and right ears until a “click” is felt. Wait for about two seconds until the instrument powers-up, then set the volume as desired. Switching OFF Turn the volume control backwards until a “click” is felt. -
Page 18: Telecoil (Optional)
Telecoil (T-coil) (optional) Your hearing care professional may have activated a T-coil in your Una hearing systems. The programs with T-coil are used with telephones that are compatible with hearing systems or with induction loop systems (present in some school settings, theaters,... -
Page 19: Easyphone
(optional) The EasyPhone plus function enables your Una hearing system to automatically select your telephone program when the telephone handset is held close to your ear. An acoustic signal confirms the switching. It automatically returns to the previous hearing program when the telephone handset is removed from your ear. - Page 20 Operation Fixing the EasyPhone plus magnet Clean the telephone handset thoroughly. Hold the telephone handset nearly vertically, similar to making a telephone call. Hold the magnet near to the “listening end” of your telephone handset and release it. The magnet will automatically flip to the correct side at the right location.
- Page 21 Use of EasyPhone plus Use the telephone in a normal manner. At the beginning, you may need to move it slightly to find the optimum position for reliable switching and comfortable hearing. If necessary, move the magnet to another position on the handset to increase your comfort of use.
-
Page 22: Maintenance
5) Daily cleaning and the use of a drying system is highly recommended. We recommend CleanLine from Phonak to care for your Una hearing systems. Your hearing care professional will gladly advise you. Never use household cleaning products (washing powder, soap, etc.) to clean your... - Page 23 6) Hair spray, face creams and make-up can damage hearing systems. Remove them before applying cosmetics. 7) If you experience any soreness or inflammation in your ear, contact your hearing care professional. 8) If your hearing system fails to operate after you have correctly inserted new batteries, contact your hearing care professional for advice.
-
Page 24: Warning
Warning Hearing instrument batteries are toxic when swallowed! Keep them out of reach of children and pets. If batteries are swallowed, please seek the advice of a medical practitioner! Use only hearing instruments that have been specially programmed for you by a hearing care professional. -
Page 25: Service And Warranty
Damage caused by third parties or non-authorized service centers renders the Phonak warranty null and void. This warranty does not include any services performed by a hearing care professional in their office. This warranty applies to the Phonak products listed below: Serial number –... -
Page 26: Phonak Distributors Worldwide
Brazil CAS Produtos Médicos, São Paulo – SP 04363-100 Canada Phonak Canada Limited Mississauga, Ontario L5S 1V9 China Phonak (Shanghai) Co. Ltd., Shanghai City 200233 Denmark Phonak Danmark A/S, Nitivej 10 2000 Frederiksberg France Phonak France SA, 69500 Bron Germany... - Page 27 Manufacturer: Phonak AG, Laubisrütistrasse 28 CH-8712 Stäfa, Switzerland The CE symbol is confirmation by Phonak AG that Una products and accessories meet the requirements of directive 93/42/EEC on medical devices. This symbol indicates that Una products comply with requirements for a BF type applied part according to EN 60601-1.
- Page 28 Your hearing care professional: www.phonak.com...
