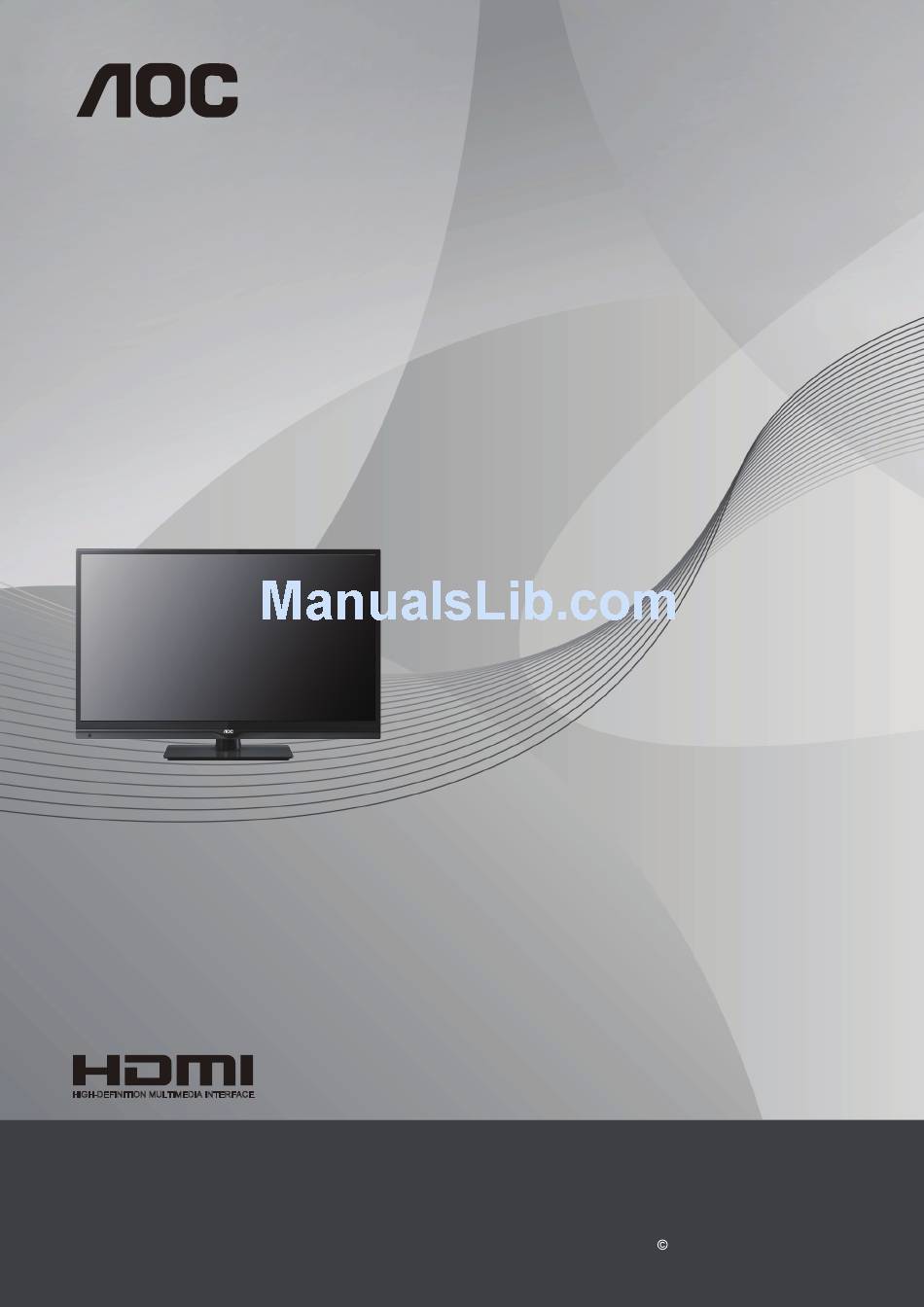

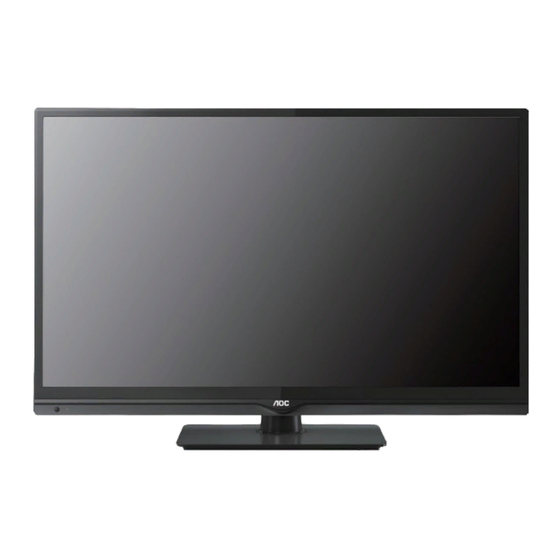

- Page 1 LCD TV with LED backlight User Manual LE32D1331 HIGH-DEFINITION MULTIMEDIA INTERFACE www.aoc.com 2013 AOC. All Rights Reserved.
- Page 3 This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.
-
Page 4: Table Of Contents
Composite Signal Connection ..........................................14 PC Connection ..............................................14 SUPPORTED TIMING TABLE ............................15 VIDEO SYSTEMS SUPPORTED BY THE TV,VIDEO MODES ..................15 USING AOC TV ................................. 16 Initial Setup ................................................16 Switching Input Source ............................................18 OSD Menu Operation ............................................19 Video Menu ................................................19 Audio Menu ................................................20... -
Page 5: Important Information
Use the Wall-Mount bracket or TV stand which was recommended by the TV immediately and have it checked by qualified service AOC, and please consult your dealer for detailed information. personnel before operating it further. Use with other Wall-Mount Bracket or TV stand may cause instability 15 ) Avoid operating the TV at temperatures below 32°F (0°C). -
Page 6: Usage Instructions
If the AC power cord is damaged, it may result in a fire or Outdoor Use an electric shock. Stop using it and ask your dealer or AOC service center to exchange it. Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. -
Page 7: Lcd/Led Screen
LCD/LED Screen Electric Shock Do not touch the AC power cord or the TV with a wet hand. If you Although the LCD/LED screen is made with high-precision plug/unplug the AC power cord from the TV with a wet hand, it may technology and has effective pixels of 99.99% or more, black dots cause electric shock. -
Page 8: Optional Equipment
Optional Equipment Batteries Do not install optional equipment too close to the TV set. Keep Do not dispose of batteries in a fire. optional equipment at least 11.875 inches (30 cm) away from the TV Do not short circuit, disassemble or overheat the batteries. set. -
Page 9: Sound
Sound Install on the wall If a snapping or popping sound from the TV is continuous or frequent 11 7/8 inches 30 cm while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particu larly when being turned on or off. -
Page 10: Volume Adjustment
Ask a qualified service technician to dispose of the Thank you for purchasing this AOC high-definition television. The quality of the image you see on your AOC TV is only as good as the quality of the signal it receives. To experience the stunning detail of your new AOC TV, you need access to HD programming. -
Page 11: Contents In The Box
Contents in the Box After unpack the TV box, please check the TV and all accessories are well presented and undamaged. AOC TV Base Screw x 4 Stand cover Remote Control AAA Battery x 2 Warranty User Card Manual Power cable... -
Page 12: Controls & Connections
Controls & Connections POWER VOL + Press to increase the sound volume level. VOL - Press to decrease the sound volume level. Press to select the next higher program number. Press to select the next lower program number. MENU Press to enter or exit the menu screen. INPUT Press to select the input source. - Page 13 Buttons located at the right side of the TV will operate the same as these buttons on the remote control. 5. AUDIO Press to select the desired audio mode, if available. 6. VOLUME UP / DOWN (VOL + / - ) Press to decrease or increase the audio volume.
-
Page 14: Set-Up
TV, especially to determine the strength of the wall for withstanding the TV’s weight. For product protection and safety reasons, AOC strongly recommends that you use the Wall-Mount Bracket model designed for your TV and the Wall-Mounting of your TV should be performed by AOC dealer or licensed contractor. -
Page 15: Connecting Tv
Connecting TV Cable System or VHF/UHF Antenna System You can enjoy standard-definition and high-definition digital programming (if available in your area), along with standard-definition analog programming. This TV is capable of receiving unscrambled digital programming for both cable and external VHF/UHF antenna. It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. -
Page 16: Composite Signal Connection
Composite Signal Connection AV IN PC Connection Use the TV as a monitor for your PC shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or HDMI output. (Refer to the separate Quick Setup Guide.) VGA IN ... -
Page 17: Supported Timing Table
Supported Timing Table Horizontal Vertical Freq. Nominal Pixel Resolution HDMI-DVI Component Freq. (KHz) (Hz) Clock (MHz) 640x480@60Hz ● ● 31.469 59.940 25.175 720x400@70Hz ● ● 31.469 70.087 28.322 800x600@60Hz ● ● 37.879 60.317 40.000 1024x768@60Hz ● ● 48.363 60.004 65.000 1280x720@60Hz ●... -
Page 18: Using Aoc Tv
USING AOC TV Initial Setup For the first time after powering on your LCD TV, the Setup Wizard appears. 1.Select the language used for the OSD (On-Screen-Display) Menu. Setup Wizard (1/6) Please select language English French Spanish Cancel Move ENTER Select 2.Select either Home or Shop mode. - Page 19 4.Press [ENTER] button to start the channel scan. Setup Wizard (4/6) Please check that the RF cable is connected properly. Scan time may take over 20 minutes. START Previous Cancel Move ENTER Select 5.The channel scanning is now in process. The Setup Wizard shows the scanning process of digital channels first, and then the analog channels next.
-
Page 20: Switching Input Source
Switching Input Source On AOC TV, you can choose signal source on the remote control , using “INPUT” key to choose signal source. INPUT SOURCE 0. TV 1. AV 2. Component 3. HDMI1 4. HDMI2 5. HDMI3 6. PC 7. USB... -
Page 21: Osd Menu Operation
OSD Menu Operation To enter the OSD (On-Screen Display): 1.Press [MENU] button on the remote control to display the OSD nenu. 2.Use the cursor buttons (▲▼◄►) to highlight your selection. 3.Press [ENTER] button to confirm your selection. 4.Press [EXIT] button to exit from any menu layer instantly. Video Menu Video Picture Mode... -
Page 22: Audio Menu
Audio Menu Video Sound Mode Standard Balance Audio Advanced Audio Channels Reset Audio Settings Setup Photos Adjust settings to affect sound quality ENTER Select MENU Previous EXIT Exit Move Items Description Sound Mode Select preset audio modes. The options are: Standard, Movie, Music, News, and Custom. Balance Adjust the audio balance for the TV’s internal left and right speakers. -
Page 23: Setup Menu
Setup Menu Video Menu Language English Parental Conrtrols Audio Closed Caption Channels Sleep Timer Input Labels Setup PC Options System Info Photos Set various TV options ENTER Select MENU Previous EXIT Exit Move Items Description Menu Language Choose English, Spanish, or French for OSD language. Set TV parental controls. - Page 24 To control while in photo folder: Press UP/DOWN/LEFT/RIGHT to browse the photo files. Press ENTER to open a folder or a photo file which will be viewed on the full screen. Press MENU to return to USB Main Menu. ...
-
Page 25: Troubleshooting
Troubleshooting Condition Explanation / Solution No picture No picture Check the Power Saving settings. Make sure the power cord is connected securely. Turn on the power of the TV. Cannot receive any channels Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source. TV is locked to one channel Perform Auto Program to add receivable channels that are not present in the TV’s memory. -
Page 26: Dimensions & Specifications
Dimensions & Specifications Model LE32D1331 Panel size 800 mm diagonal (31.5” viewable) Resolution 1366 x 768 TV System NTSC Speaker 10 W x 2 Antenna impedance 75Ω Input Voltage 100-240V AC, 50/60Hz Power consumption Standby power consumption <1W Video/Audio Terminals Rear AV in x 1 , Side SPDIF x 1 VIDEO: 1 V(p-p), 75 ohm, negative sync.
