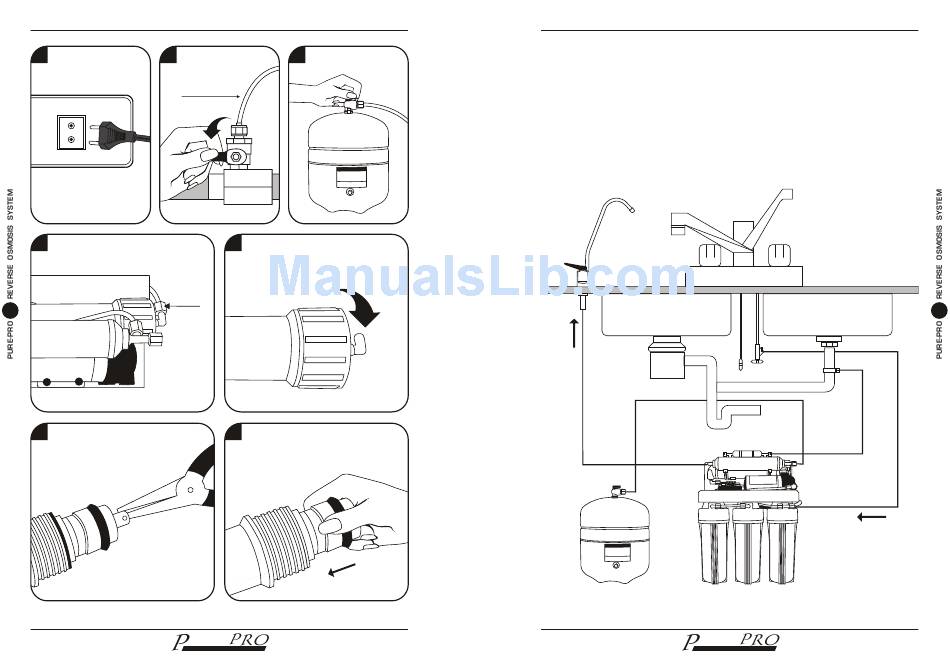

Change membrane

1 Unplug electricity. 2 Turn off water source.
To RO system
4 Loose the Jaco fitting anticlockwise.
09
6 Remove the membrane by a pincer.
EC105P User-Friendly RO System
3 Switch off water tank.
5 Remove the membrane housing
cap anticlockwise.
Jaco
7 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
URE
DRINKING WATER SYSTEM

Tubing connection diagram

CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
D. Connect the RED tubing to the storage tank.
Faucet
B
Tank
D
EC105P User-Friendly RO System
URE
DRINKING WATER SYSTEM
06
C
Drain
A
Input water
