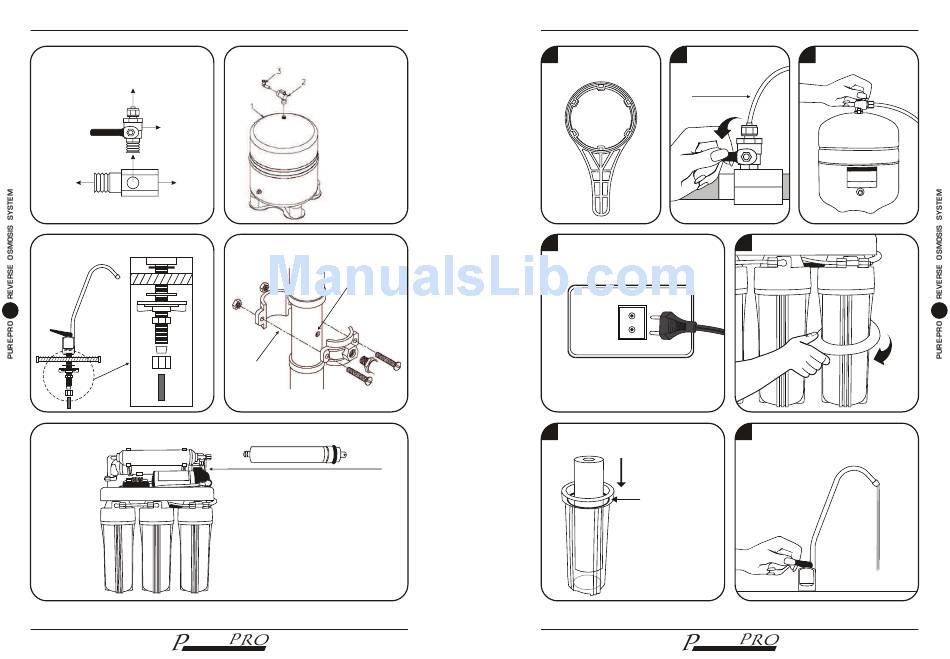

Installation diagram

Input water :
To RO system
Deliver valve
To faucet
To water source pipe
Install faucet :
07
Assemble membrane :
EC105P User-Friendly RO System
Install water tank :
Hand tighten plastic
shut-off valve to tank.
Then connect color
tubing.
Install drain saddle :
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
1.Remove the membrane housing cap.
2.Replace the membrane.
URE
DRINKING WATER SYSTEM

Change filters

1 Prepare a housing 2 Turn off water
wrench. source.
To RO system
4 Unplug electricity.
6 Put the replacement filters in the
housings and double O' ring.
Be sure tighten with
O-ring to prevent
from leaking.
EC105P User-Friendly RO System
URE
DRINKING WATER SYSTEM
3 Switch off water tank.
FULL FLUSH PROCESS SOURCE POWER
Micro Computer Controller
5 Open housings clockwise with a wrench.
7 Drain out 1 Gallon of water to
purify replacement filters.
