Change membrane

1 Unplug electricity.
4 Loose the Jaco fitting anticlockwise.
09
Jaco
6 Remove the membrane by a pincer.
M800-Direct Flow Reverse Osmosis Water Systems
2 Turn off water source.
To RO system
5 Remove the membrane housing
cap anticlockwise.
7 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
URE
DRINKING WATER SYSTEM

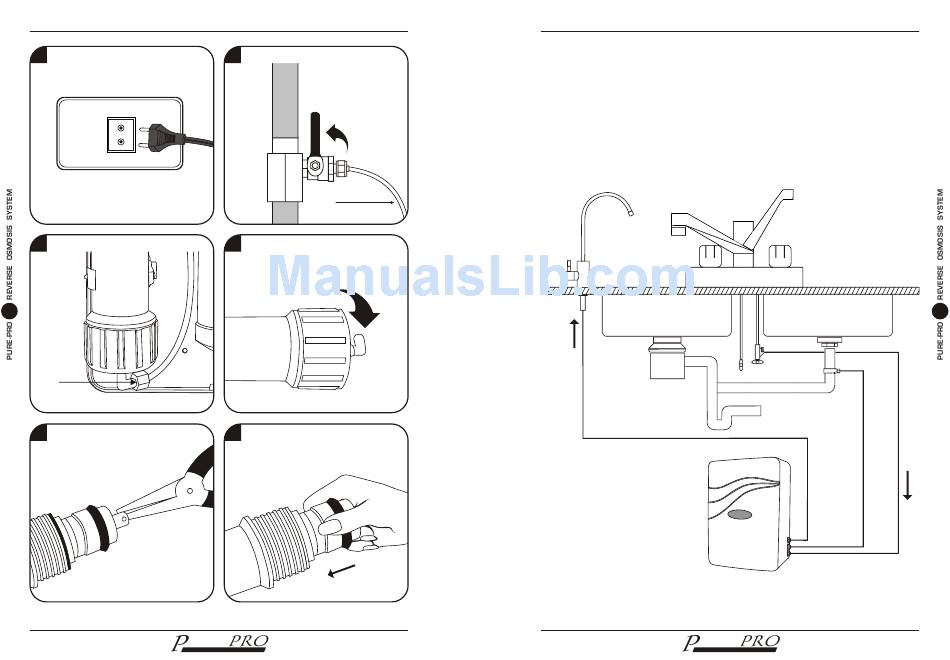

Tubing connection diagram

CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
Faucet
B
M800-Direct Flow Reverse Osmosis Water Systems
URE
DRINKING WATER SYSTEM
06
C
Drain
A
Input water
