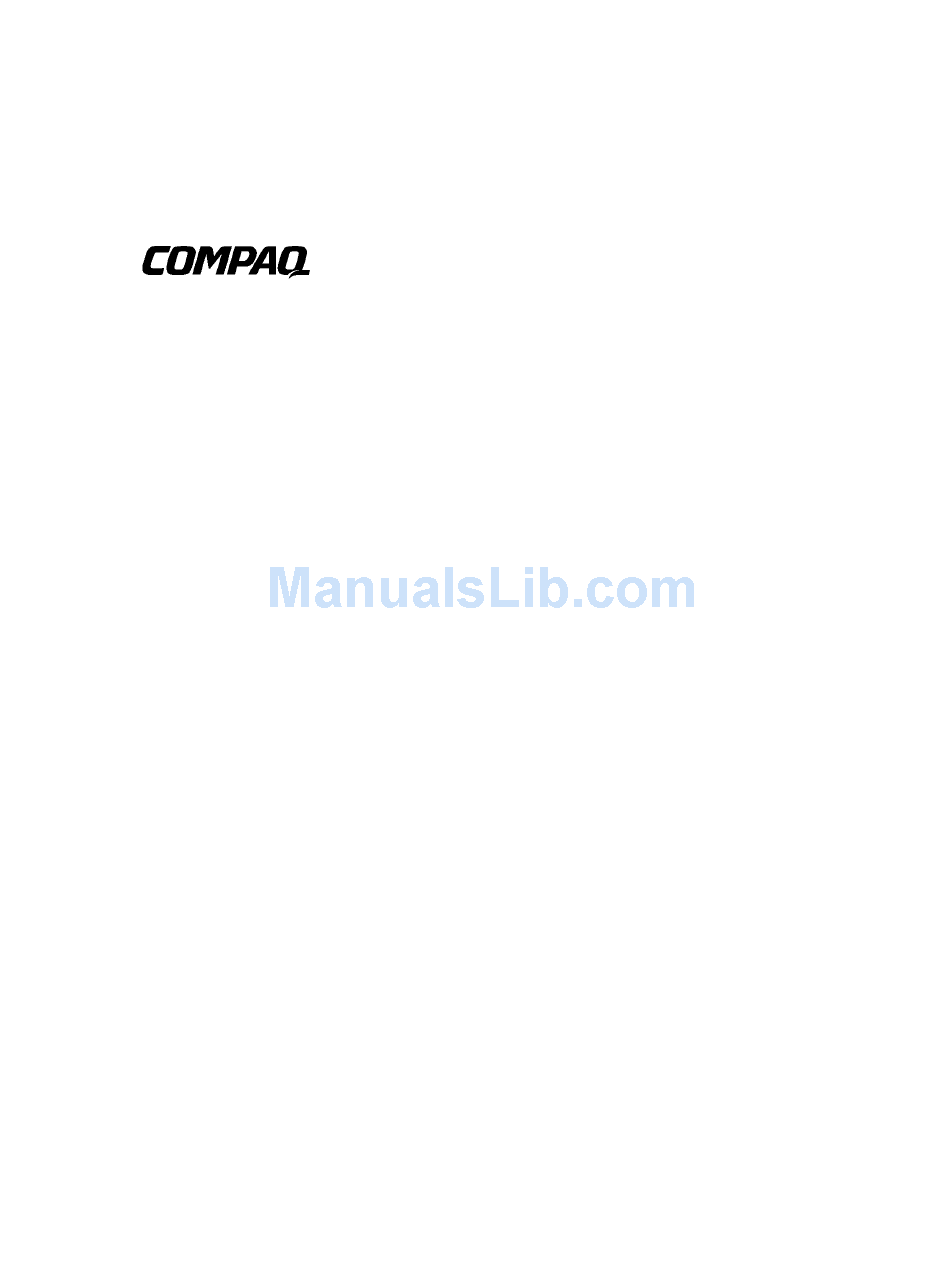

ProLiant 3000 Servers
Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Second Edition (January 1999)
Part Number 179776-002
Compaq Computer Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLiant 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Compaq ProLiant 3000

Summary of Contents for Compaq ProLiant 3000

  • Page 1 ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Second Edition (January 1999) Part Number 179776-002 Compaq Computer Corporation...
  • Page 2 Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Compaq ProLiant 3000 Servers Setup and Installation Guide for use with 350-MHz or greater Intel processor-based servers only Second Edition (January 1999)

  • Page 3: Table Of Contents

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM...
  • Page 4 Optional Installation Service ....................3-29 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 5 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM...
  • Page 6 Taiwanese Notice ........................A-5 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 7 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM...

  • Page 8: About This Guide

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 9: Text Conventions

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM...

  • Page 10: Symbols In Text

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 11: Rack Stability

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM...

  • Page 12: Getting Help

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 13: Compaq Proliant 3000 Server Features

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 14: Cache Memory And System Architecture

    PCI slot For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 15: Media Bays

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 16: Scsi

    Optional RAID support with Smart Array family controllers For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 17: System Management

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 18: Warranty

    Utilities.” For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 19: Disk Drive Fault Tolerance

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 20: Automatic Server Recovery-2 (Asr2)

    Library (SRL) CD for more information on these security features. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 21: Compaq Integrated Remote Console

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 22: Supported Drive Configurations

    This configuration would yield a total storage capacity of 1890 GB. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 23: Installation Overview

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM...

  • Page 24: Server Warnings And Precautions

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 25: Pre-Installation Planning

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM...

  • Page 26: Grounding

    35°C (95°F). For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM...

  • Page 27: Installation Procedure

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM...

  • Page 28: Installing A Tower Model

    Compaq server is complete. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM...

  • Page 29: Rack-Mountable Server Installation

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 30 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 31: Rack Warnings And Precautions

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 32 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 33: Rack Temperature Requirements

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 34: Airflow Requirements

    These gaps should be covered with blanking panels. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 35: Unpacking The Server

    Locating Materials and Documentation All of the equipment needed to install the ProLiant 3000 server in the rack is included with the rack and with the server. Figure 3-1. Rack mounting hardware included with the server...
  • Page 36 (not shown) For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 37 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 38: Preparing The Mounting Brackets And Slide Rail Assemblies

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 39: Attaching The Bracket Rail To The Mounting Bracket

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 40 Figure 3-5. Separated bracket rail (top) and component rail For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 41 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 42 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 43 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 44: Attaching The Mounting Bracket Slide Assembly To The Rack

    Do this on both the front and the back of the rack. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 45 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 46: Inserting Cage Nuts In The Rack Frame

    2. Hook one of the lips of the cage nut through the square rail perforation. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 47: Attaching The Mounting Bracket Assembly To The Rack

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 48 Figure 3-11. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 49 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 50: Attaching Component Rails To The Server

    Figure 3-12. Attaching a component rail to the server For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 51: Attaching The Cable Management Arm Bracket

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 52: Loading The Rack Server

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...
  • Page 53 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 54: Attaching The Cable Management Arm

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 55 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 56: Attaching The Optional Cable Support

    M6 x 1.0-12L Phillips screws. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 57: Optional Installation Service

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM...

  • Page 58: Installing Hardware Options

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 59: Preparing The Server

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 60 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 61 Figure 4-1. Removing the server cover For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 62: Accessing Non Hot-Plug Areas

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 63 System Configuration settings switch For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 64 NV RAM is valid NV RAM is invalidated, configuration is lost * See the ProLiant 3000 Service and Maintenance Guide for information on the use of this switch. Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 65: Installing Processor

    Figure 4-3. Installing the Intel processor For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 66 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 67: Installing Dimm Memory

    Server." For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 68 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 69: Installing Pci/Isa Expansion Boards

    Server." For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 70: Installing Fans

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 71: Accessing Drive Cage And Media Bays

    2 to 3 inches to allow better access to cables. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 72 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 73 Figure 4-13. Removing the Duplex Enable board For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 74 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 75 Figure 4-15. Removing face plate For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 76 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 77 Server." For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 78: Installing Integrated Management Display

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 79 Server." For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 80: Accessing Hot-Plug Areas

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 81 NOTE: Press the drive lever to unlock, then swing the lever out. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 82: Scsi Id Numbers

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...
  • Page 83 (Simplex Mode) with 1-inch drives For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 84 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 85: Accessing The Hot-Plug Power Supplies

    Figure 4-31. Installing power supply For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 86: Pre-Failure Warranty

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM...

  • Page 87: Server Configuration And Utilities

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...
  • Page 88 Data can be retrieved from the disc. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 89: Using The System Configuration Utility

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 90: Resolving Resource Conflicts

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 91: Starting The System Configuration Utility

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 92: System Configuration Utility Main Menu

    Configuration Backup For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 93 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 94: System Partition

    Delete Files For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 95: Creating A New System Partition

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 96: Verifying The System Partition

    CD to the system partition. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 97: Configuration Backup

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...
  • Page 98 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 99: Configuring Pci Boards Automatically

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 100: Smp Operating System Support

    SCO UnixWare 2.1.x OSMP, UnixWare 7.0.x OSMP For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 101: Loading Compaq Device Drivers

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 102: Microsoft Windows Nt Device Drivers From Compaq

    4. Follow the instructions that display on the monitor. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 103: Sco Openserver And Sco Unixware Device Drivers From Compaq

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 104: Ibm Os/2 Device Drivers From Compaq

    4. Follow the instructions that display on the monitor. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 105: Banyan Vines Device Drivers From Compaq

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 106: Diagnostics And Other Utilities

    Compaq Systems Reference Library CD. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM...

  • Page 107: Integrated Management

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...
  • Page 108 Figure 6-1. Idle screen text For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 109: Navigation Buttons

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 110: Display Symbols

    Press and hold the button to scroll. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 111: System Behavior With Error Events

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 112: Menu Structure

    Custom Menu Screen (if entered) For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 113: Integrated Management Log

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 114: Multiple Ways Of Viewing The Log

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...
  • Page 115 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...
  • Page 116 IML Management Utility. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 117: List Of Events

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 118: Event Messages

    Continued For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 119 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: G-CH06.DOC Last Saved On: 1/6/99 12:21 PM...

  • Page 120: Regulatory Compliance Notices

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM...

  • Page 121: Class A Equipment

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 122: Modifications

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM...

  • Page 123: Cables

    EN60950 (IEC950) - Product Safety For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 124: Japanese Notice

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM...

  • Page 125: Laser Devices

    IEC 825. For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 126: Laser Product Label

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM...

  • Page 127: Battery Replacement Notice

    For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...

  • Page 128: Regulatory Compliance Label Location

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: H-APPA.DOC Last Saved On: 1/12/99 1:31 PM...

  • Page 129: Power Cord Set Requirements

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: I-APPB.DOC Last Saved On: 1/4/99 5:20 PM...
  • Page 130 Continued For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: I-APPB.DOC Last Saved On: 1/4/99 5:20 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 131 Japanese Industrial Standard C8303 (7A, 125V) configuration. Compaq ProLiant 3000 Servers Setup and Installation Guide Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: I-APPB.DOC Last Saved On: 1/4/99 5:20 PM...

  • Page 132: Appendix C Internal Cd-Rom Drive

    Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: J-APPC.DOC Last Saved On: 1/4/99 5:17 PM...
  • Page 133 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...
  • Page 134 5-6 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 135 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...
  • Page 136 3-1, 3-29 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 137 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...
  • Page 138 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 139 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...
  • Page 140 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 141 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...
  • Page 142 PCI/ISA slots 4-5 For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED...
  • Page 143 Compaq ProLiant 3000 Servers Setup and Installation Guide For use with 350-MHz or greater Intel processor-based servers only Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002 File Name: K-INDX.DOC Last Saved On: 1/12/99 1:34 PM...

Table of Contents
