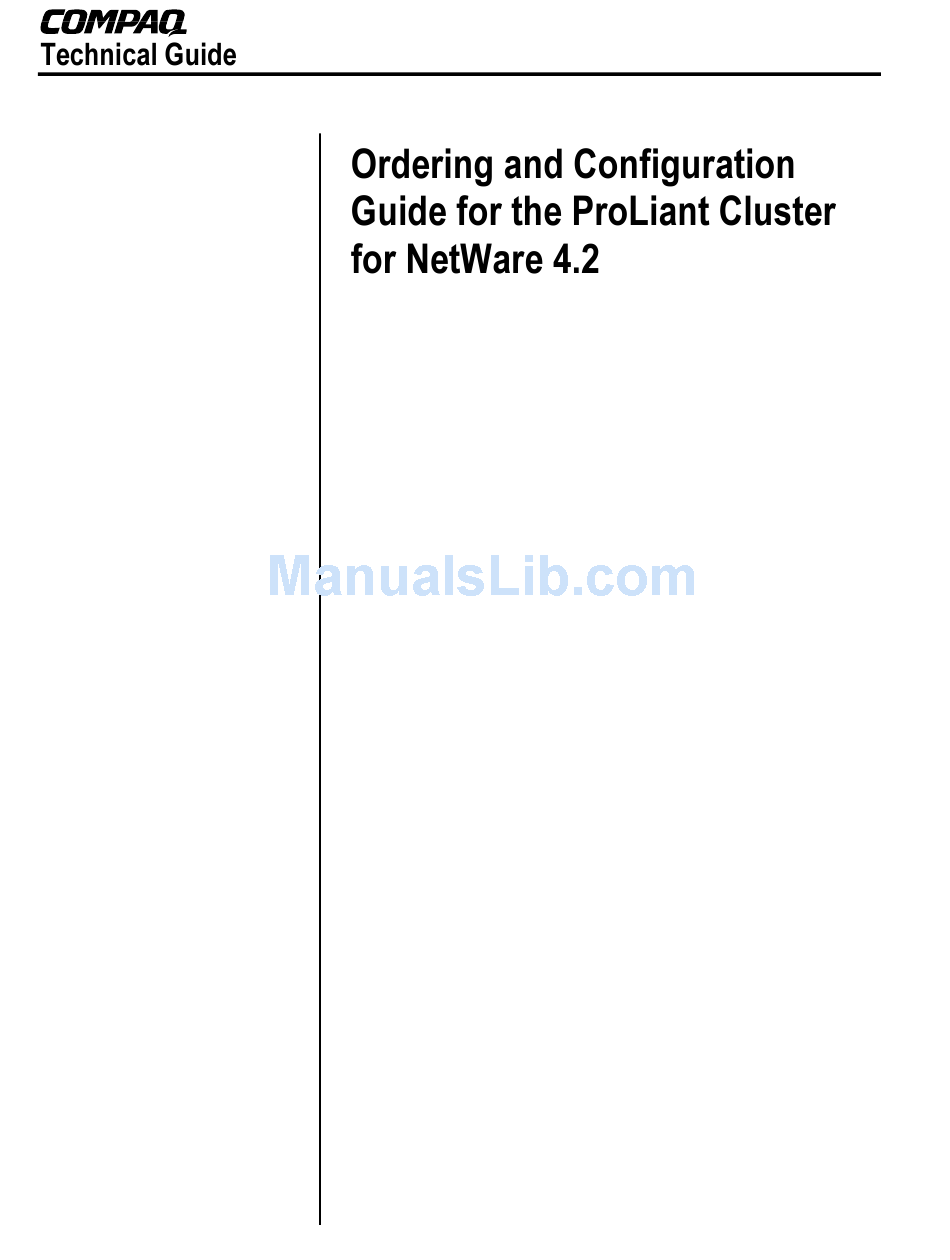

Compaq ProLiant 1850R Configuration Manual
Ordering and configuration guide for the proliant cluster for netware 4.2
Hide thumbs
Also See for ProLiant 1850R:
- Setup and installation manual (203 pages) ,
- Technical manual (19 pages) ,
- White paper (13 pages)
Advertisement
Quick Links
Download this manual
See also:
Manual
September 1999
0095-0699-A
Prepared by ECG Technology
Communications Group
Compaq Computer Corporation
Contents
Introduction..................................3
Cluster Configurations................5
Components.................................6
Ordering Process ........................8
Abstract: The Compaq ProLiant Cluster for NetWare 4.2, featuring
the Novell High Availability Server (NHAS) for NetWare 4.2/4.11
and Compaq servers and storage, extends reliability on the system
level and provides automatic failover and failback between two
servers with a No Single Point of Failure shared storage system. As a
result, the Compaq ProLiant Cluster for NetWare 4.2 delivers to
NetWare 4.2 environments the highest level of availability in the
industry.
This document details the hardware necessary and provides
configuration guidelines to help select the components needed to set
up the ProLiant Cluster for NetWare 4.2.
Advertisement
Related Manuals for Compaq ProLiant 1850R
Summary of Contents for Compaq ProLiant 1850R
- Page 1 Introduction........3 the Novell High Availability Server (NHAS) for NetWare 4.2/4.11 Cluster Configurations....5 Part Numbers and and Compaq servers and storage, extends reliability on the system Components.........6 level and provides automatic failover and failback between two Ordering Process ......8 servers with a No Single Point of Failure shared storage system. As a result, the Compaq ProLiant Cluster for NetWare 4.2 delivers to...
- Page 2 PROFITS, BUSINESS INTERRUPTION OR LOSS OF BUSINESS INFORMATION), EVEN IF COMPAQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. The limited warranties for Compaq products are exclusively set forth in the documentation accompanying such products. Nothing herein should be construed as constituting a further or additional warranty.
-
Page 3: Introduction
Each server must be able access to the other’s storage in order to respond successfully to requests that had been handled by the failed server. Currently, only the Compaq RAID Array 4000, formerly the Compaq Fibre Channel Storage System, allows for multi-server (multi- initiator) control of external storage on ProLiant servers. - Page 4 Fibre Channel Array Controllers, and cables for the Disk link. If the primary interconnect fails, communication continues over the backup. The ProLiant Cluster for NetWare 4.2 consists of ProLiant Servers, the Compaq StorageWorks RAID Array 4000 storage system, Novell High Availability Server, Novell NetWare 4.2, and at least two network adapters.
-
Page 5: Cluster Configurations
The racks shown are configured for optimal placement of cluster components. Compaq recommends the Compaq Rack Builder Pro software to customize and optimize rack configurations to your needs. You can download the Rack Builder or Rack Builder Pro software from the Compaq website at http://www.compaq.com/products/servers/options/rackacces/rackbuilder.html... -
Page 6: Part Numbers And Components
Part Numbers and Components Part numbers as of June 1999 Servers 123740-001 ProLiant 1850R 6/550 Model 1 386745-001 Proliant 1850R 6/500 Model 1 328970-001 ProLiant 1850R 6/450 Model 1 333100-001 ProLiant 1850R 6/400 Model 1 126747-001 ProLiant 3000 6/550 Model 1 512K (128MB) - Page 7 Related Storage Part Numbers 223100-001/291 RAID Array 4000 – Rack Mount 241300-001/291 RAID Array 4000 – Tower 223180-B21/291 Fibre Channel Host Adapter/P 262394-B21/291 Fibre Channel Host Adapter/E 234453-001/B31/291 Fibre Channel Storage Hub 7 295573-001 Fibre Channel Storage Hub 12 234459-B21 GBIC-SW Connector Kit 340412-B21 GBIC-LW Connector Kit...
-
Page 8: Ordering Process
Order Compaq RAID Array configuration. 4000 Storage System(s) 6. If you order a Compaq Fibre Channel Storage Hub 7 and will be mounting the unit in a rack, you will need a Fibre Channel Storage Hub 7 Rackmount Kit. Order Compaq RAID Array 4000... - Page 9 8. Order Compaq Fibre Channel Storage options as needed. Order hard drives, cabling, and redundant power supplies as per your requirements. The RAID Array 4000 Redundant Controller can also be ordered. This option enables you to configure a dual redundant Fibre Channel loop, and includes an additional Fibre Channel Array Controller, two GBIC-SW Connector Kits, and a Fibre Channel cable.
