Summary of Contents for Optex BTR-5030
-

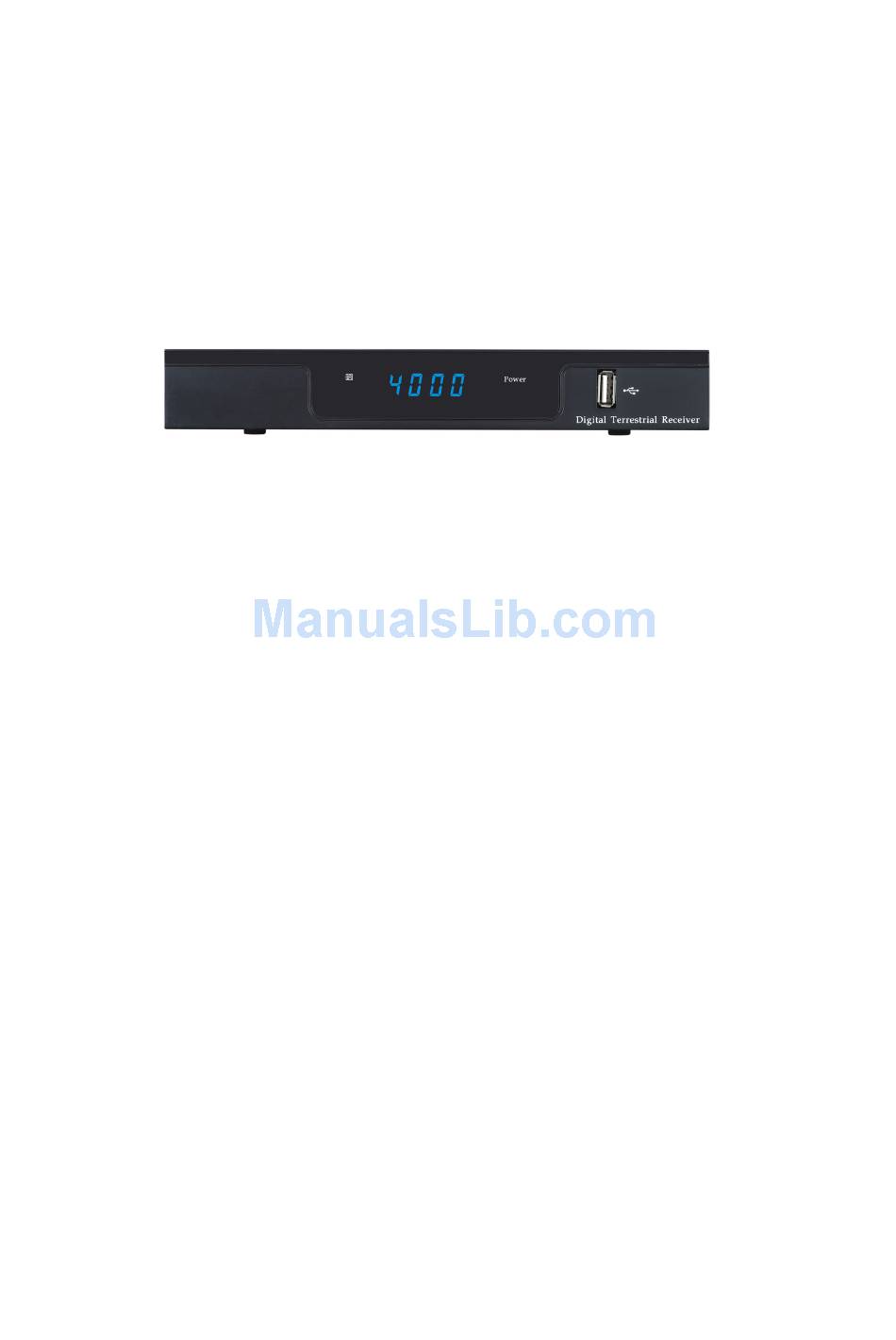

Page 1: Digital Terrestrial Receiver
BTR-5030 Digital Terrestrial Receiver User Manual... -
Page 2: Table Of Contents
Table of contents Safety Instructions.……………………………………………………………………3 General Introduction…………………………………………………………….……5 Front Panel / Rear Panel…………………………………………………………..7 Remote Control Unit………………………………………………………….….……8 S.T.B Connection………………………………………………………………..11 Main Menu…………………………………………………………………………..13 Digital TV Part................1. Installation………………………………………………………………….…..13 2. Channel Manager...……………………………………...……………………..15 3. Configuration…..………………………………………………….………….…..17 4. Software Upgrading……………………………………….……………………..20 5. Factory default………………………………………………………….….……..21 6. Version……………………………………………………………………………..21 USB PVR……………………………………………………………….. PVR Instruction………………………………………………………………………23 USB Media Play Part ……..……………..……………………………………..24 1. -
Page 3: Safety Instructions
Safety Instructions This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. MAIN SUPPLY AC 100/240V, 50/60Hz, 15W. OVERLOADING Do not overload a wall outlet, extension cord or adapter as this may result in fire or electric shock. - Page 4 Safety Instructions CONNECTION TO THE CABLE Disconnect the STB from the main supply before connecting or disconnecting the cable. FAILURE TO DO SO CAN DAMAGE THE BOX. CONNECTION TO THE TV Disconnect the STB from the main supply before connecting or disconnecting the cable from TV.
-
Page 5: General Introduction
General Introduction INTRODUCTION This manual will help you learn basic functions such as installation, selecting channels and many other functions of the STB. All functions can be operated by the remote control. You can easily install it by selecting ”Installation” function and upgrade its software through communication cable. - Page 6 General Introduction UNPACKING Unpack the unit and check to make sure that all of the following Items are included in the packaging. 1 x Remote Control Unit (RCU) 1 x User Manual 2 x AAA batteries 1 x Digital Terrestrial Receiver We hope you enjoy using your digital Terrestrial receiver!
-
Page 7: Front Panel/ Rear Panel
Front Panel/ Rear Panel Front Panel USB slot available both in front panel and rear panel! Dimension:220 x 125x 32 (W x D x H ) Rear Panel TV ANT IN: Use to connect an antenna. LOOP OUT: Use it when connecting to another STB. TV/VCR SCART: For the Video/Audio input of the TV and VCR. -
Page 8: Remote Control Unit
Remote Control Unit... - Page 9 Remote Control Unit STANDBY: Switch between Operation and Standby mode NUMBERIC BUTTONS： Changes channels or selects the menu options. FAV： Enter into favorite list PAGE UP Press to jump one page up or ZOOM up while zoom is enabled VOL (◄/►) Turn up/down volume;...
- Page 10 Remote Control Unit 22. TIMER: Enter into Wake-up timer menu 23. SUBTL To display the Subtitle information 24. INFO: Display information of programs; show help information of Buttons in current menu. 25. TV/RADIO Switch between TV and Radio mode. 26. PVR LIST: Press to show recorded file list 27.
-
Page 11: Connection
S.T.B Connection Various equipment and TV/VCR can be connected to STB. This manual will explain common ways to connect to the equipment. If you experience any problem, please contact your sales agency. How to connect the STB to a TV set (1) Connect one end of the SCART cable to the TV SCART socket on the back of the STB and the other end to the SCART input socket on your TV. - Page 12 S.T.B Connection How to connect the Audio system Connect the AUDIO R/L socket of the STB to the Audio System like HI-FI, Amplifier, etc. Audio System must capable of stereo audio ability. ③If Digital Audio or S/PDIF Optical output are available on STB, you can get better stereo experience.
-
Page 13: Main Menu
Main Menu Plug in the STB, the Main Menu screen, the beginning of the OSD screen, will appear as shown in the following picture. The Main Menu displays various functions of the STB or you can select with “CH” buttons and the numeric buttons on the remote control. - Page 14 Main Menu 1.2 Manual Search If you are familiar about digital TV and know the frequency of the program or if you want to scan the program at any frequency required, you can select manual scanning, which can save your much time. You can move the cursor to “area search”...
-
Page 15: Channel Manager
Main Menu If any program is detected and the scanning process is finished, system will exit the scanning page and save the program. 2. Channel Manager System offers an efficient function of channel management such as channel deleting, marking, moving, locking, sorting and grouping. - Page 16 Main Menu programs to be sorted via the selection area; Second Option: Press FTA (free of charge), Scramble (encrypted), ALL Free and Encrypted Channels; Third Option: According to alphabetic order A-Z, or Z-A; 2.3 Channel Grouping Channel Grouping enable you to set different channels into...
-
Page 17: Configuration
Main Menu Press the YELLOW button to enter Edit Channel menu. The operation for this menu is as same as for Add Channel function 2.5 Delete All If you do not like all of the TV or Radio channels, you can enter Delete All menu to choose to delete all TV, RADIO, and Carriers. - Page 18 Main Menu Audio Language: Select the desired audio languages (This function is valid only when the broadcasting program contains the multi audio service) 3.2 TV TV menu provides convenient TV input mode in variety. All options are listed on the left of the TV menu Display Mode TV mode can change the mode of the output video, you can adjust TV mode according to the actual situation of you receiving equipment.
- Page 19 Main Menu default: Standard Surround: To set Stage Effect OFF, Concert, Church, Passive, Live; Default: OFF Active Antenna: To set 5V voltage output to Terrestrial Antenna JPEG Effect: To set different fading in effect for viewing Photo over USB device LCN: To set LCN function on (Logical Channel Number) Area: To set the country for LCN function 3.4 Time...
-
Page 20: Software Upgrading
Main Menu 3.6 Parental Lock prevent unauthorized Accessing of your STB, you can set the Parental control password to you receiver. (Default password: 0000) Press the number key 0-9 on the RCU to input Old password. If the password is input correctly, the cursor can move onto Input New password option, press number key 0-9 to input new 4-digit password;... -
Page 21: Factory Default
Main Menu such as 0001 /sda. Select the bin code file, which you want to be upgraded, such as p1.bin. STB will upgrade by itself, but remember that, do not power off. After being upgraded, system will restart itself, you will see the new software interface. -
Page 22: Usb Pvr
Main Menu USB PVR This STB provide you a powerful RECORDING function, which enable you to record the favorite TV program to your portable HDD (Hard Drive Disk) 1. Recording Plug you HDD to STB, and press REC button on RCU, the recording will begin, press STOP button to stop at anytime you like. -
Page 23: Pvr Instruction
Main Menu PVR INSTRUCTION Supported Device: Most of popular USB2.0 Hard Drive Disk can be supported by our STB, however due to there are too many types of HDD available in the market, if you find one particular HDD can not work with our STB, please kindly provide it to us, and we will be happy to solve it for you in shortest time. -
Page 24: Usb Media Play Part
Main Menu USB MEDIA PLAY This STB integrates powerful function to support USB features and you can connect USB equipments via the USB input to play movies, MP3, and viewing pictures, At present, system can support usual USB media players. Video supporting format: dat / mpg / vob / Audio supporting format: LPCM/PCM / WAV / MP3... -
Page 25: Game
Main Menu 1. In main menu, press UP/DOWN to choose Photo option, press ENTER key to confirm. 2. Press ENTER key to enter next directory, every directory can show photo file and folder name Press ENTER key to play Photo file;... -
Page 26: Troubleshooting
Troubleshooting When you found some problems about this STB, please check the table in below. Because these may not be any serious problems: Fault Phenomenon Probably reasons Resolve Power on, but no Please carefully check the Put firmly the display on screen power plug, to see it is in power plug to the socket of wall or not? Is... -
Page 27: Specification
Specification Tuner Demodulator Input Frequency Range 51MHz ~ 858 MHz Input Level 32dBm Input socket IEC 169-24 Female XI Output socket IEC 169-24, 5V75mA Max Demodulator Coding COFDM Mode 2K or 8K Code rate 1/2,2/3,3/4,5/6,7/8 Guard 1/4,1/8,1/6,1/32 Video decoder Profile Lever MPEG-2 MP@ML Bit rate Max 15Mbps...
