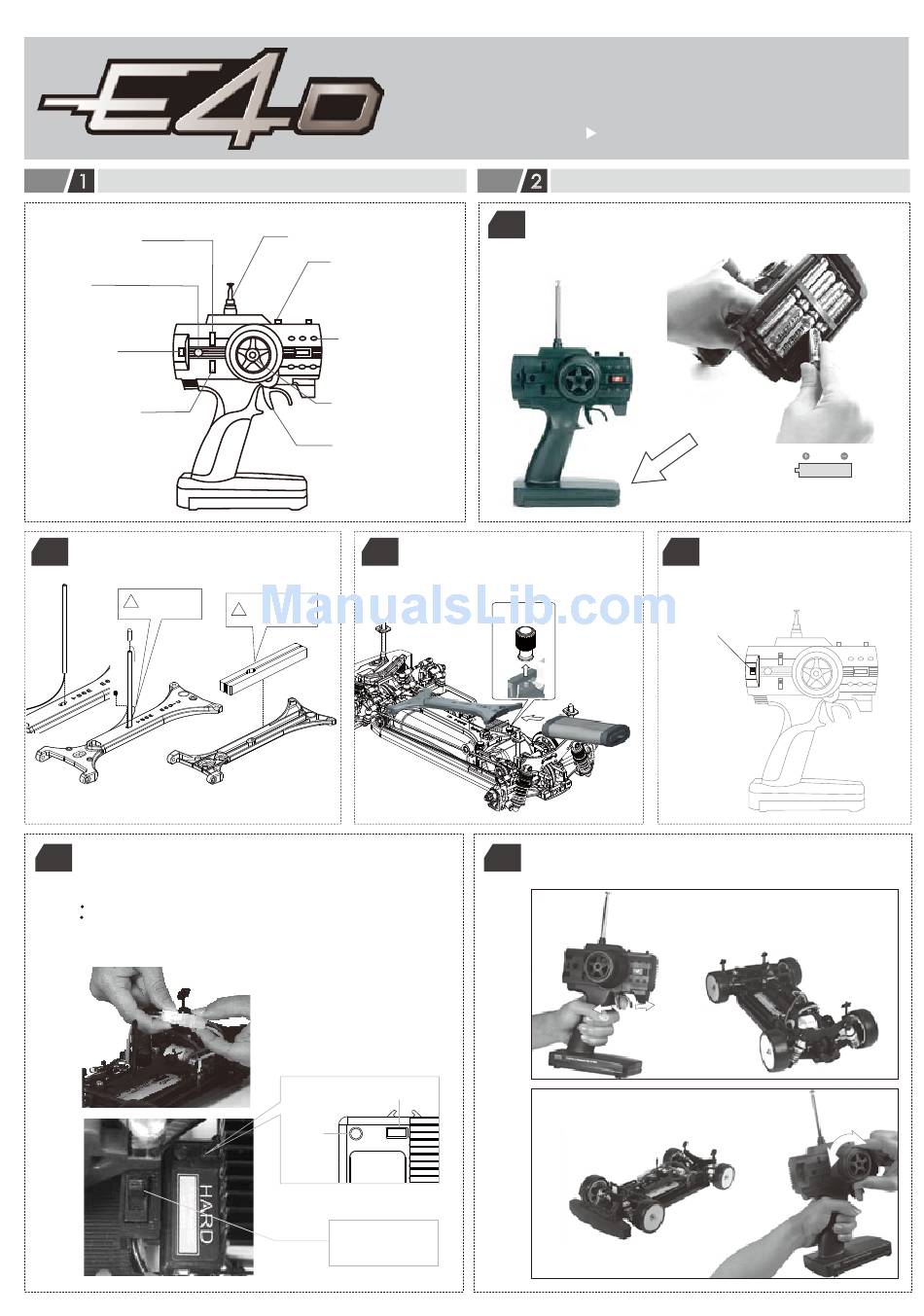

Team Magic E4D Instruction & Setup Manual

1
Tramsmitter Function
ST Servo
Reversing Switch
Battery Level
Indicator
If the Red led flashes , replace
batteries.
Power Switch
When slid upward,the power
is turned on.
TH Servo
Reversing Switch
Insert the antenna wire into the tube as shown.
02
Fasten the tube with a set screw and put on the
tube cap.
Notice there is
!
a small space for
wire to go through.
Connect the battery pack to the speed controller. Finally, switch on
05
the speed controller power.
H.A.R.D. Dual Mode Speed Controller is the most advanced speed
controller at the market.
Fierce.
Gentle Mode: Yellow Indication Light (50% output)
Fierce Mode: Red Indication Light (100% output)
After switch on, the speed controller will auto-reset the throttle
neutral position within 5 seconds with beep sound. Push the button
for 3 seconds on the speed controller to switch the mode.
Antenna
Steering Trim
Adjusts the steering in small
increments so the model will
run straight.
Throttle Trim
Adjusts the throttle in small
increments so the model will
not move at neutral
Steering Wheel
Tum model to left or right
Throttle Trigger
Control the speed of the
model and movement
forward and backward
03
Optional The cushion
! foam usage depends
on the battery type.
There are two modes available: Gentle &
Mode Switch Button
LED Light
Red 100%
Yellow 50%
Switch
2
Operating Procedure
Install 8pcs AA batteries to the H.A.R.D. transmitter.
01
Thumb nuts are used to fasten the battery
holder. Use appropriate charger to charge
the included receiver battery pack.
Rotate the transmitter wheel for left and right.
06
Pull the trigger for acceleration and push the trigger for brake and
reverse.
Instruction & Setup Manual
Turn on the transmitter first.
04
Switch
Not Included
A A
