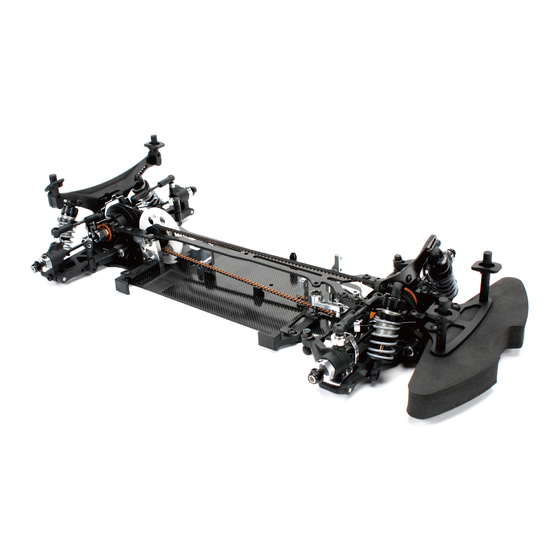

Team Magic E4RSII Instruction Manual

Thank you for choosing the Team Magic E4RSII. Before you start building the E4RSII, we suggest you
read though the instruction manual first. Be sure to check all assembly and performance tips before
you start. We hope you enjoy the fine building processes.
General Building Tips:
Read the instruction manual before building.
Clear a work area and try to work on a light color towel to avoid missing dropped parts.
Don't forge the thread lock. Be certain to use thread-lock on all the machine screws that thread into metal. Put it
on the screws that are secured with locknuts and the setscrews that secure the linkage stops, too. Don't skimp on
the thread-lock or you'll be searching in the dirt for screws that vibrated loose.
Don't over-tighten fasteners. Many assembly problems are caused by over-tightening screws or nuts. Don't use too
large a grip. Please go slowly and feel the resistance build. Just snug it up.
As you put more time and runs on the car, the suspension arms, and basically anything else that moves, can stretch
and wear. Though we have a very rigorous quality control program and make every effort to ensure that the parts
have the best possible fit when you get them. Unfortunately there is very little, or nothing we can do to prevent
these parts from wearing out. When the arms begin to wear you will notice that some slop develops between the
carrier or hub and the arms. This slop can be taken out by shimming the arm, hub or carrier. If you take a look at
any of the factory driver's cars you will definitely find that they use shims to take up some of the slop that occurs over
a period of time. The shims can also be used on the inside of the suspension arms in the same manner. When
shimming the parts, care must be taken not to add too many shims. The parts must still move freely without binding.
When it doesn't fit, please double check. If an assembly is not going together correctly, then either there really is a
bad fit (e.g. a part is damaged or defective) or a mistake in assembly. Always re-read the instructions when there
are any problems. If you cannot figure out what's wrong, always ask dealer, distributor or Team Magic. Don't use
force beyond what the instructions call for.
Using the right tools makes assembly much easier. The instructions below finely indicate you what tools to get to
make things easier. We don't want to scare you by saying that all these tools are required, but you will have an
easier time if you have them. Borrow them from a friend to check if necessary.
The assembly is arranged so that you will open the bag and finish that bag before you go on to the next bag.
Sometimes, you will have parts remaining at the end of a bag. These will become part of the following bags.
A Good Dealer Is Extremely Important!!
A good hobby dealer can help you with most assembly problems you might encounter. This is the main reason why
you should buy your kits from a good dealer rather than from the cheapest dealer. Bring your problematic parts to
the dealer and, most likely, you'll walk away soon thereafter with the problem solved. If you think that you really
don't have the mechanical skills to complete the assembly, you may pay your dealer to finish the job for you. We
can recommend good dealers to you if you need.
