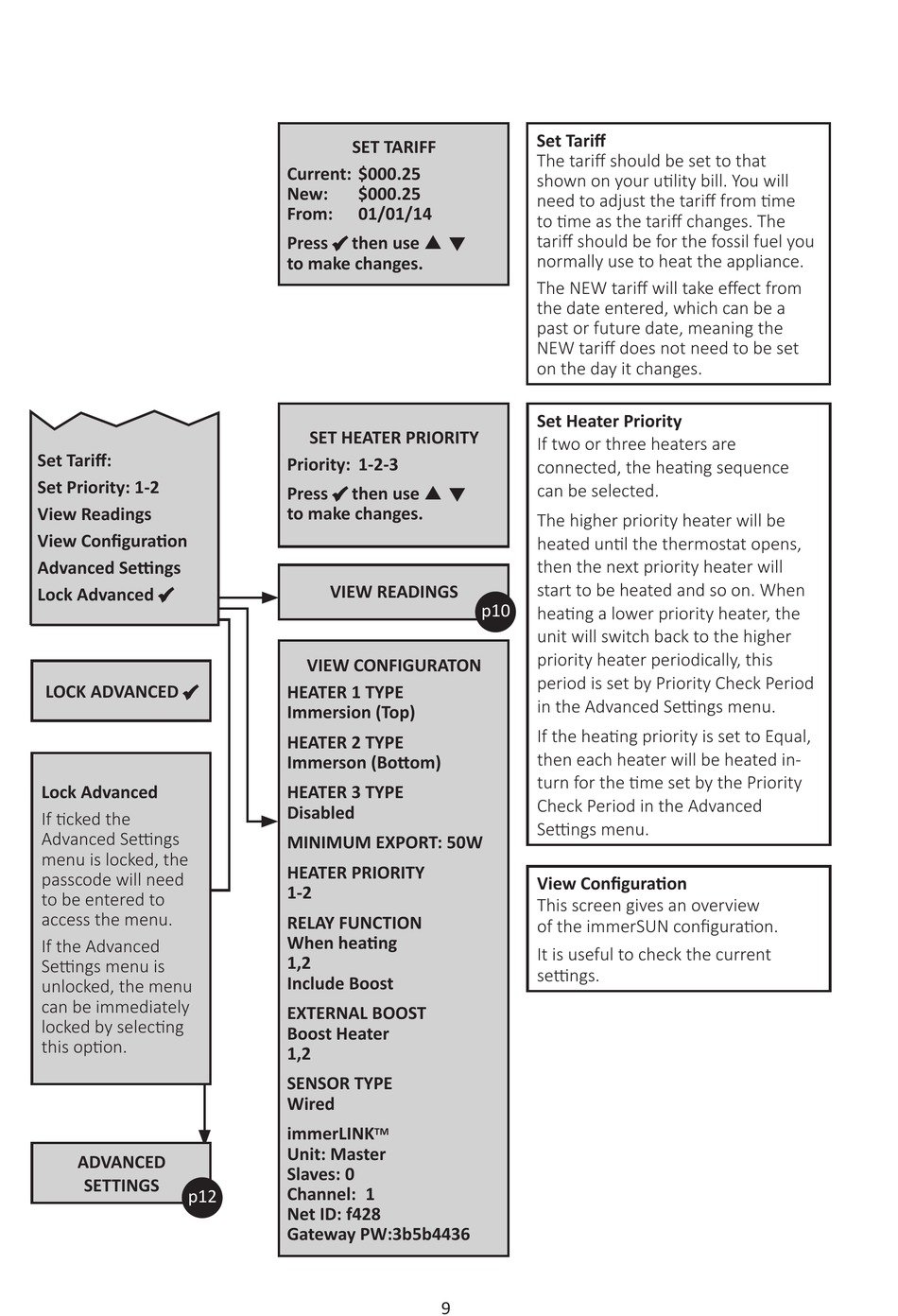

EnaSolar immerSUN Installation And User Manual page 9

Set Tariff:
Set Priority: 1-2
View Readings
View Configuration
Advanced Settings
Lock Advanced 
LOCK ADVANCED 
Lock Advanced
If ticked the
Advanced Settings
menu is locked, the
passcode will need
to be entered to
access the menu.
If the Advanced
Settings menu is
unlocked, the menu
can be immediately
locked by selecting
this option.
ADVANCED
SETTINGS
p12
SET TARIFF
Current: $000.25
New: $000.25
From: 01/01/14
Press  then use  
to make changes.
SET HEATER PRIORITY
Priority: 1-2-3
Press  then use  
to make changes.
VIEW READINGS
VIEW CONFIGURATON
HEATER 1 TYPE
Immersion (Top)
HEATER 2 TYPE
Immerson (Bottom)
HEATER 3 TYPE
Disabled
MINIMUM EXPORT: 50W
HEATER PRIORITY
1-2
RELAY FUNCTION
When heating
1,2
Include Boost
EXTERNAL BOOST
Boost Heater
1,2
SENSOR TYPE
Wired
immerLINK
TM
Unit: Master
Slaves: 0
Channel: 1
Net ID: f428
Gateway PW:3b5b4436
9
Set Tariff
The tariff should be set to that
shown on your utility bill. You will
need to adjust the tariff from time
to time as the tariff changes. The
tariff should be for the fossil fuel you
normally use to heat the appliance.
The NEW tariff will take effect from
the date entered, which can be a
past or future date, meaning the
NEW tariff does not need to be set
on the day it changes.
Set Heater Priority
If two or three heaters are
connected, the heating sequence
can be selected.
The higher priority heater will be
heated until the thermostat opens,
then the next priority heater will
start to be heated and so on. When
p10
heating a lower priority heater, the
unit will switch back to the higher
priority heater periodically, this
period is set by Priority Check Period
in the Advanced Settings menu.
If the heating priority is set to Equal,
then each heater will be heated in-
turn for the time set by the Priority
Check Period in the Advanced
Settings menu.
View Configuration
This screen gives an overview
of the immerSUN configuration.
It is useful to check the current
settings.
