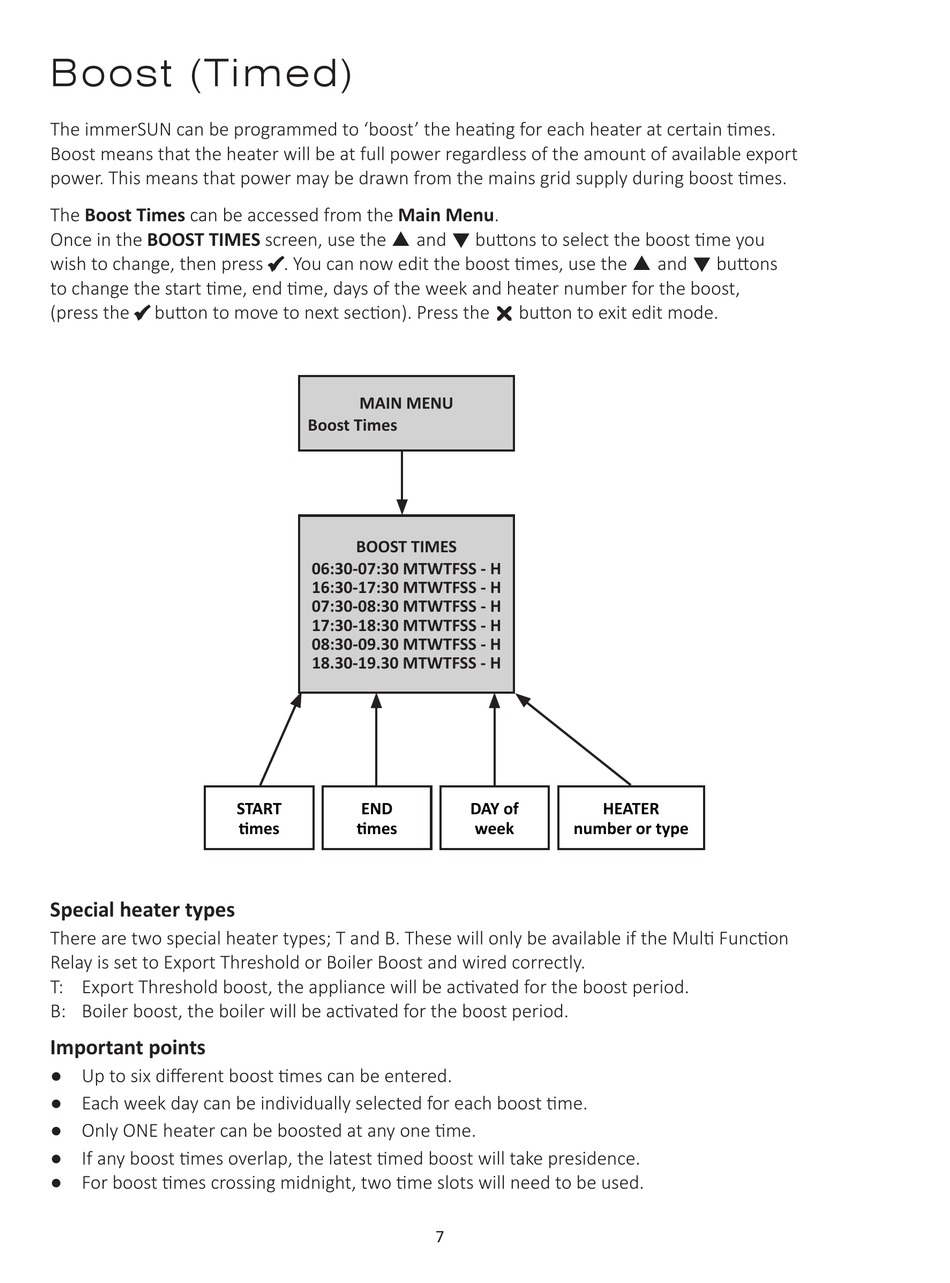

Boost (Timed)

The immerSUN can be programmed to 'boost' the heating for each heater at certain times.
Boost means that the heater will be at full power regardless of the amount of available export
power. This means that power may be drawn from the mains grid supply during boost times.
The Boost Times can be accessed from the Main Menu.
Once in the BOOST TIMES screen, use the  and  buttons to select the boost time you
wish to change, then press  . You can now edit the boost times, use the  and  buttons
to change the start time, end time, days of the week and heater number for the boost,
(press the  button to move to next section). Press the  button to exit edit mode.
Special heater types
There are two special heater types; T and B. These will only be available if the Multi Function
Relay is set to Export Threshold or Boiler Boost and wired correctly.
T: Export Threshold boost, the appliance will be activated for the boost period.
B: Boiler boost, the boiler will be activated for the boost period.
Important points
● Up to six different boost times can be entered.
● Each week day can be individually selected for each boost time.
● Only ONE heater can be boosted at any one time.
● If any boost times overlap, the latest timed boost will take presidence.
● For boost times crossing midnight, two time slots will need to be used.
MAIN MENU MAIN MENU
Boost Times Boost Times
BOOST TIMES
06:30-07:30 MTWTFSS - H
16:30-17:30 MTWTFSS - H
07:30-08:30 MTWTFSS - H
17:30-18:30 MTWTFSS - H
08:30-09.30 MTWTFSS - H
18.30-19.30 MTWTFSS - H
START END
times times
DAY of
week number or type
7
HEATER
