Main Screen - EnaSolar immerSUN Installation And User Manual

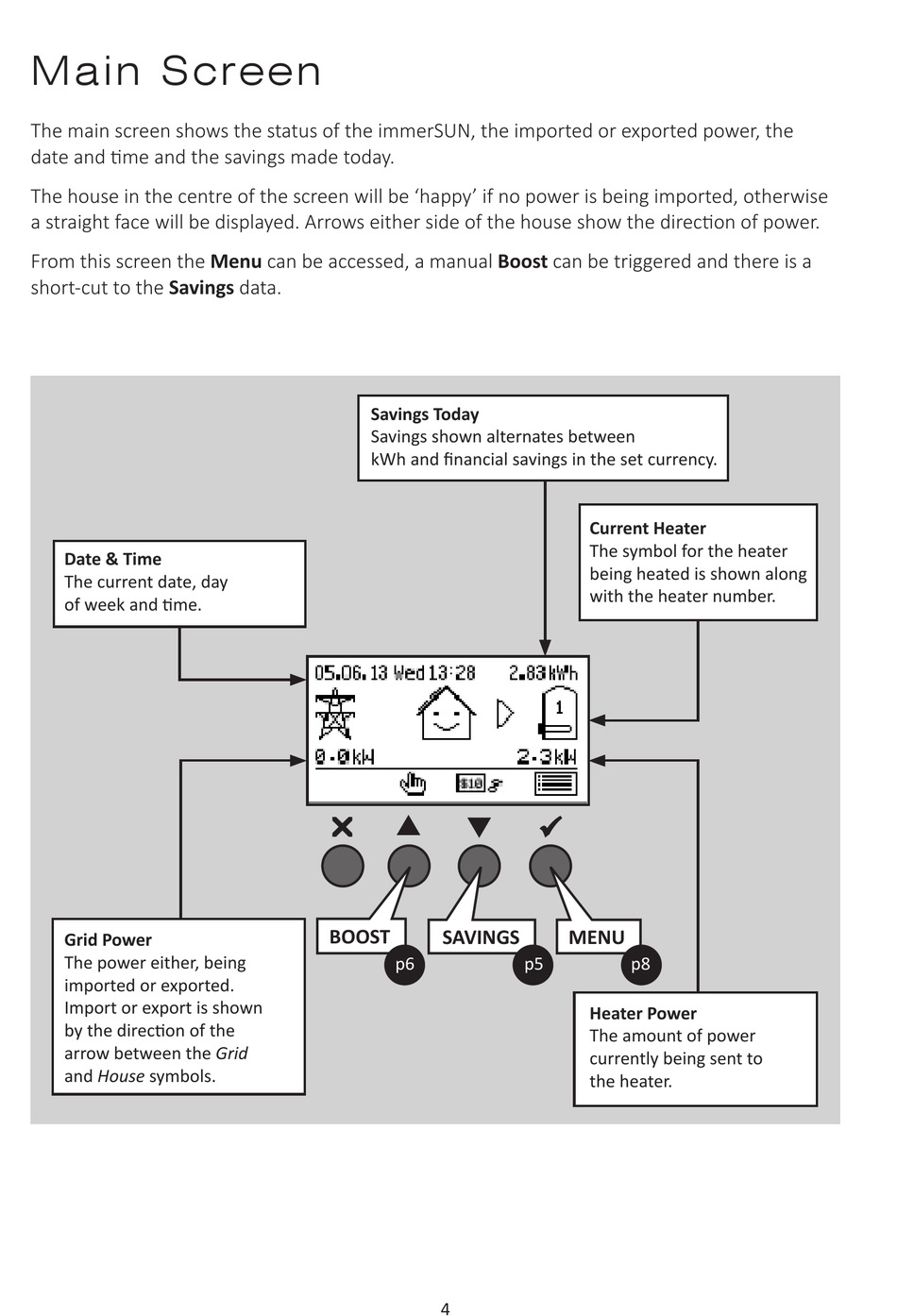

Main Screen

The main screen shows the status of the immerSUN, the imported or exported power, the
date and time and the savings made today.
The house in the centre of the screen will be 'happy' if no power is being imported, otherwise
a straight face will be displayed. Arrows either side of the house show the direction of power.
From this screen the Menu can be accessed, a manual Boost can be triggered and there is a
short-cut to the Savings data.
Date & Time
The current date, day
of week and time.
Grid Power
The power either, being
imported or exported.
Import or export is shown
by the direction of the
arrow between the Grid
and House symbols.
Savings Today
Savings shown alternates between
kWh and financial savings in the set currency.



BOOST
SAVINGS
p6
4
Current Heater
The symbol for the heater
being heated is shown along
with the heater number.

MENU
p5 p8
Heater Power
The amount of power
currently being sent to
the heater.
