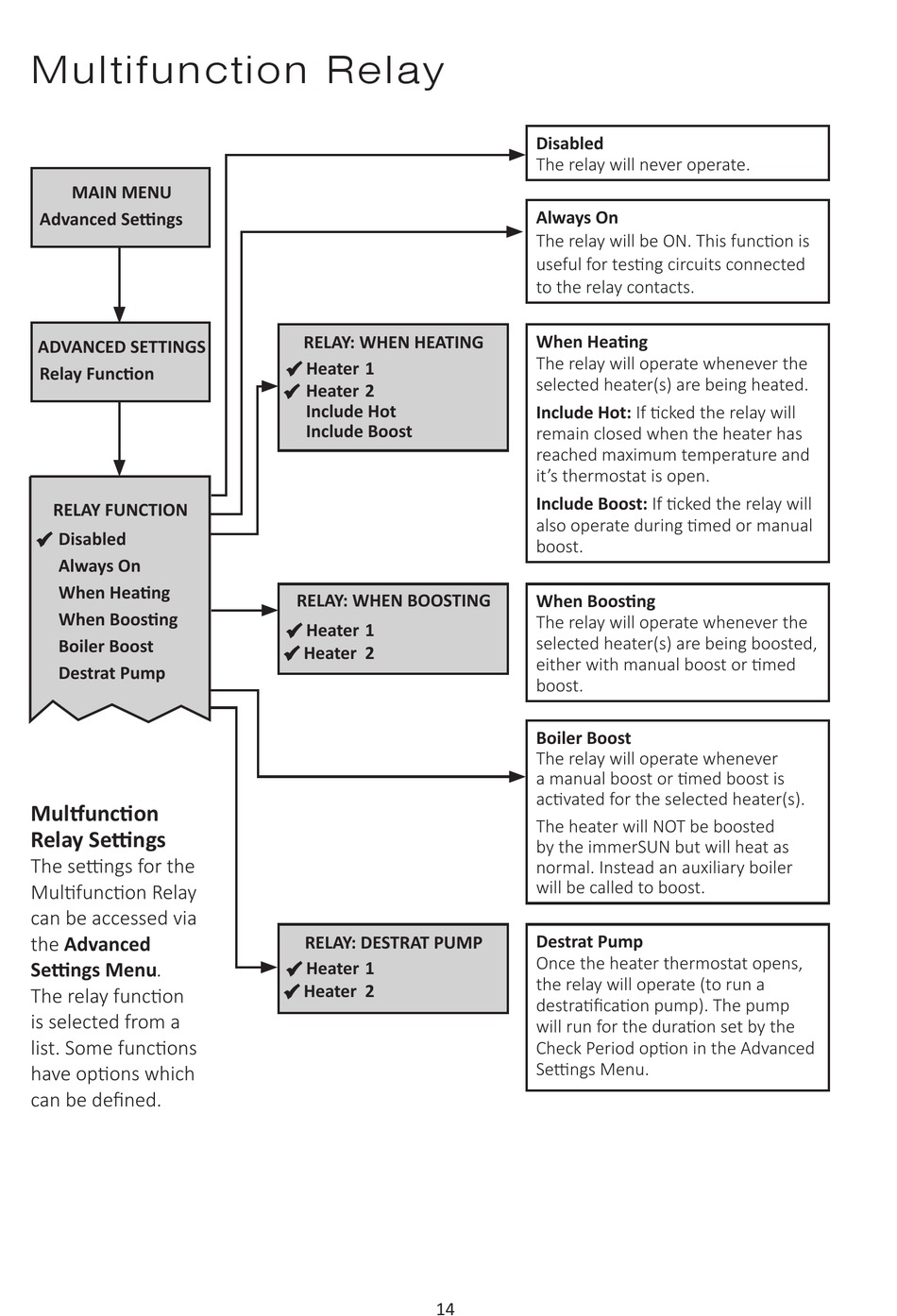

Multifunction Relay
MAIN MENU
Advanced Settings
ADVANCED SETTINGS
Relay Function
RELAY FUNCTION
 Disabled
Always On
When Heating
When Boosting
Boiler Boost
Destrat Pump
Multfunction

Relay Settings

The settings for the
Multifunction Relay
can be accessed via
the Advanced
Settings Menu.
The relay function
is selected from a
list. Some functions
have options which
can be defined.
RELAY: WHEN HEATING
 Heater 1
 Heater 2
Include Hot
Include Boost
RELAY: WHEN BOOSTING
 Heater 1
 Heater 2
RELAY: DESTRAT PUMP
 Heater 1
 Heater 2
14
Disabled
The relay will never operate.
Always On
The relay will be ON. This function is
useful for testing circuits connected
to the relay contacts.
When Heating
The relay will operate whenever the
selected heater(s) are being heated.
Include Hot: If ticked the relay will
remain closed when the heater has
reached maximum temperature and
it's thermostat is open.
Include Boost: If ticked the relay will
also operate during timed or manual
boost.
When Boosting
The relay will operate whenever the
selected heater(s) are being boosted,
either with manual boost or timed
boost.
Boiler Boost
The relay will operate whenever
a manual boost or timed boost is
activated for the selected heater(s).
The heater will NOT be boosted
by the immerSUN but will heat as
normal. Instead an auxiliary boiler
will be called to boost.
Destrat Pump
Once the heater thermostat opens,
the relay will operate (to run a
destratification pump). The pump
will run for the duration set by the
Check Period option in the Advanced
Settings Menu.
