JVC VN-T16U Quick Manual page 6

1. CS mount: connect the 1/3-type CS mount lens with the camera
2. Screw: lock Back focus Adjustment
3. Back focus Adjustment
4. Base: connect the camera with the tripod
5. SD card slot: insert a SD card into this slot for recording and storage
6. Video: not supported (for factory use only)
7. RJ45 Ethernet Connector/ PoE: insert the RJ45 cable for network connection. It also supports
PoE (Power over Ethernet).
8. Default Button: reset all of the camera parameters to factory default by pushing 5 seconds.
9. Reset Button: restart the system.
10. Power Indicator: Red light indicates power connection.

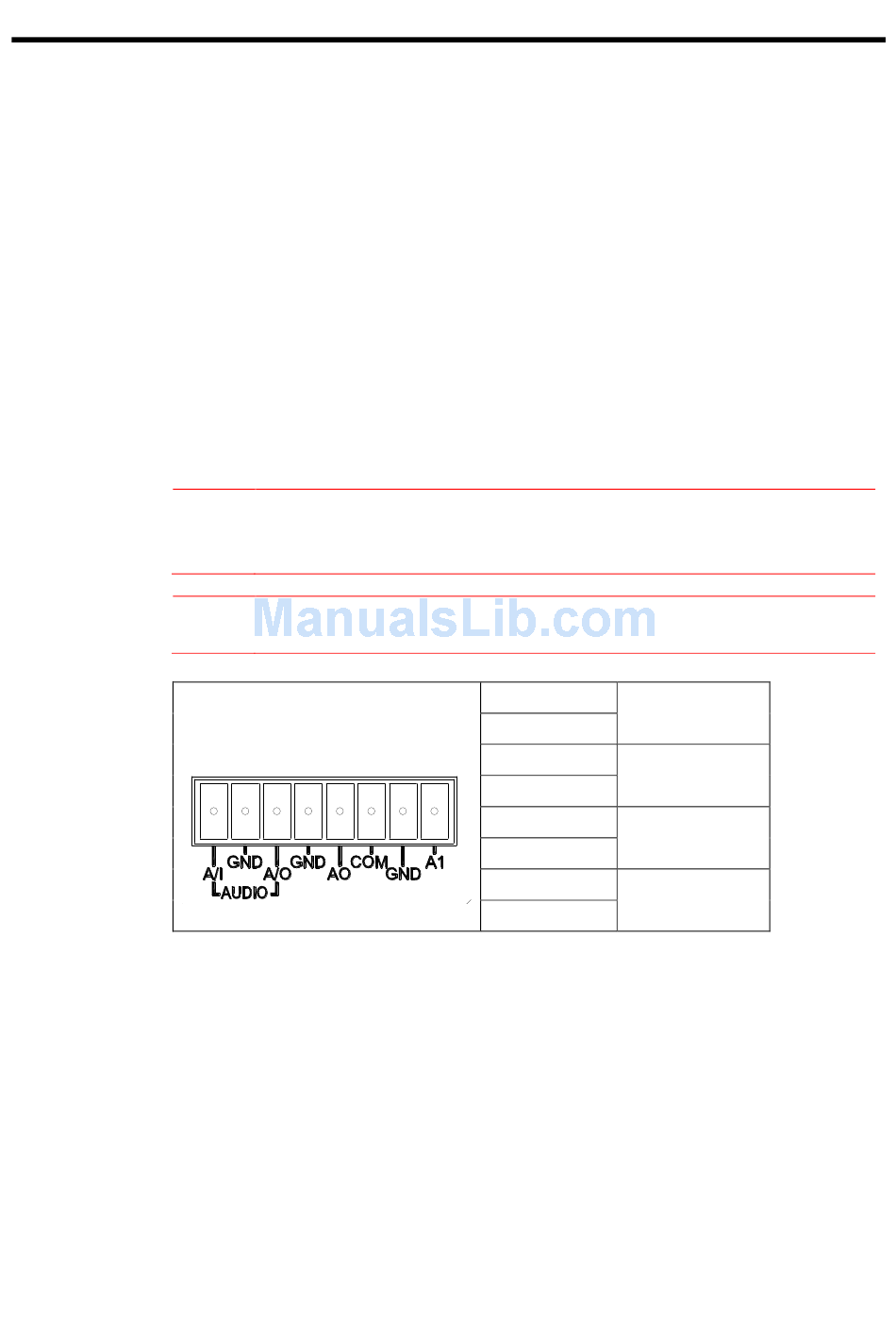

11. I/O Connector: Input/Output Connector
12. Power Terminal
Connectors and field wiring terminals for external Class 2 circuits provided with
marking indicating minimum Class of wiring to be used. Class 2 shall be marked
Note
adjacent to the field wiring terminals.
To avoid damage to the camera, never connect more than one type of power supply
Caution
(PoE or DC12V or AC24V power plug) at the same time.
A/I
GND
A/O
GND
AO
COM
AI
GND
5
Audio in
Audio out
Alarm out
Alarm in
