6. After modification, press turn wheel and then loosen, out of the editing state.
7. Turn the wheel select "back", press turn wheel and then loosen, back into the main interface.
2.

Interface description

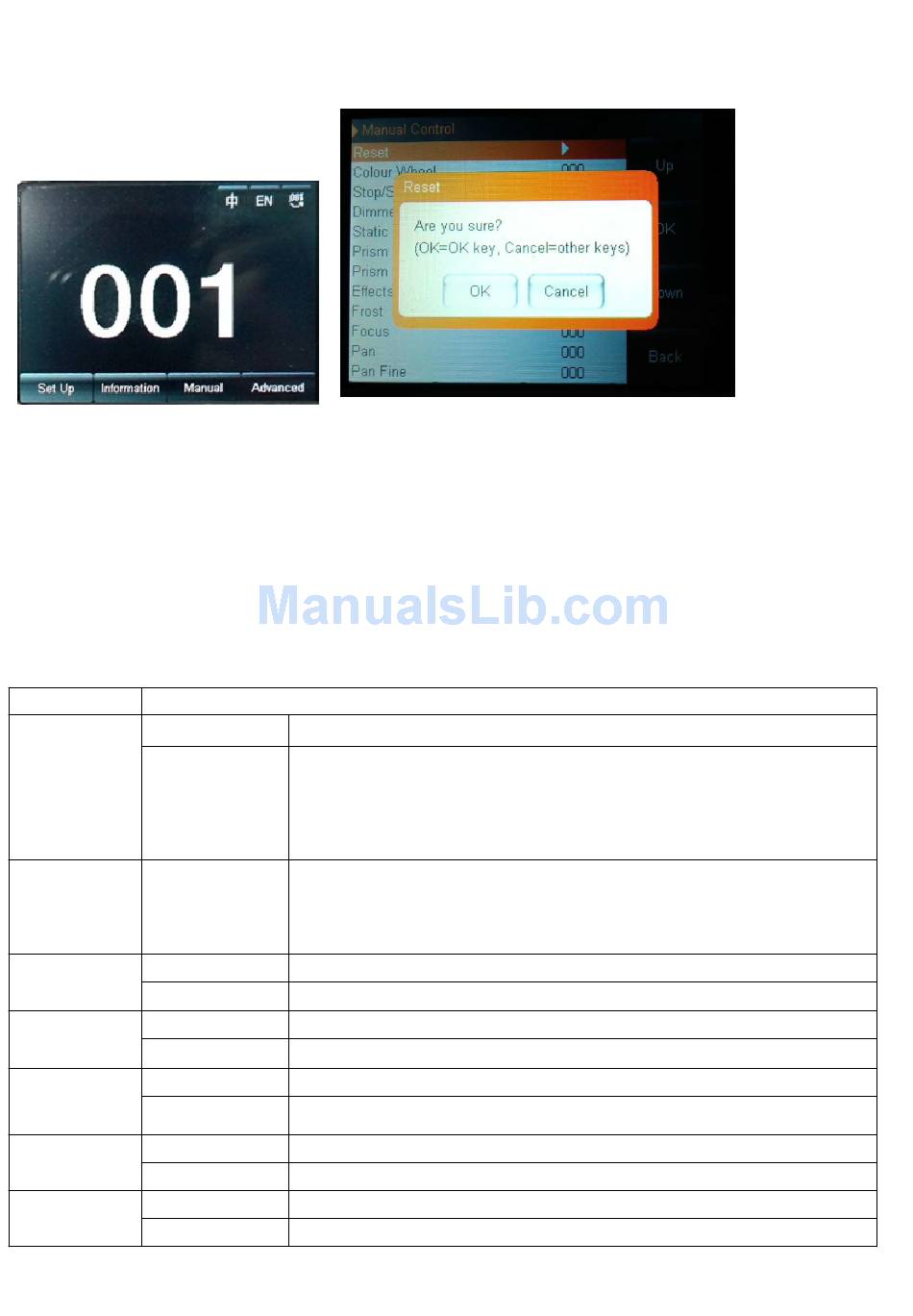

2.1 Main Interface

Top right corner 3 button for language switching and screen rotation
Bottom row four button corresponding sub interface is introduced, it's in the back.
With touch operating mode sub interface is introduced, if use wheel, corresponding relation
follows:
Press up : turn left
Press down : turn right
Press ok : press the wheel
Use wheel operation dialog box
If ok ,press the wheel.if cancel ,turn the wheel.（as above the display)
2.2 Set up the interface
Option
Run Mode DMX
Automatic
DMX 1-512
Address
Channel 16
Mode
20
Invert OFF
Pan/Tilt
NO
Swap OFF
Pan-Tilt
NO
Encoder NO
Pan-Tilt
OFF
No DMX KEEP
Signal
CLEAR
Guangzhou Best Stage Light Equipment Co.' Ltd
Slave state:Accept control table or main engine
Statistics : Automatic operation and send DMX signal for slave
Note:If the bulb is put out before , the light bulb will not be full
light. If you need to observe the lighting effects, please keep the
light on，and then into the automatic state
Press OK key into edit state, its selected hundred. Press up or
down,change address code.Press again OK key, selected ten
editor. Press again OK key, select the edit. Press it again to exit
the edit state.
The 17 th to 20 th channels are invalid.
Control speed of the 17
Change the channel of XY axis （include trimming）
Use encoder correct position
Do not use encoder correct position
According to the original state continues to run
The return of the motor, stop running
instruction
th th
to 20 channels （see the channel list ）
3
