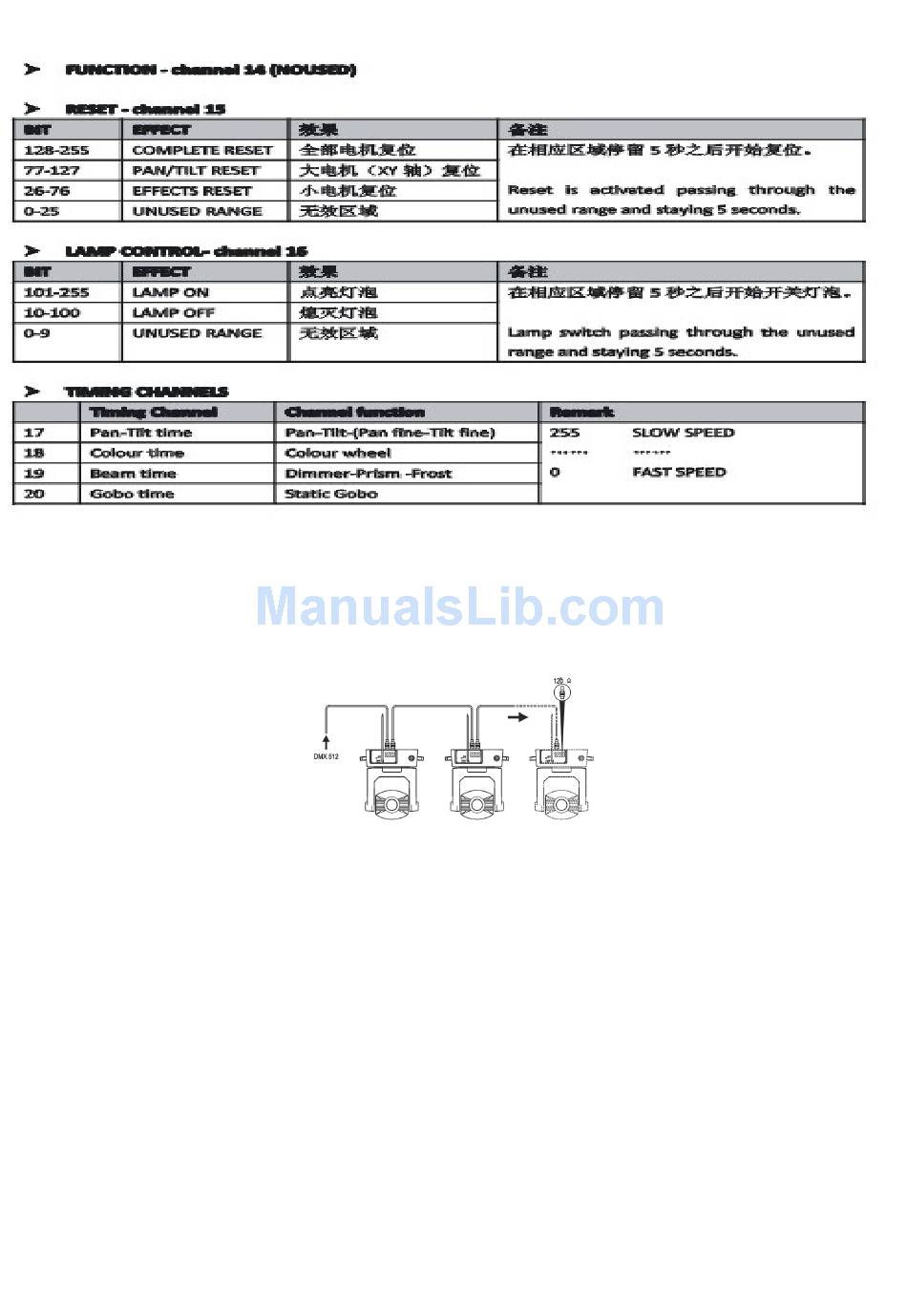

Control signal wire connection
Use the CLR-XLR controller line connect every light's DMX input port from controller's DMX input port,
and start from the first light's DMX input port connect to the second light's DMX input port, in this way,
until connect all of the lights, and then use the loop accompanied connect to the last light's signal input
port the connect complete, as the follow picture:
Note
Please remember that in the last table lamps and lanterns signal outlet connection a loop plug.In this
loop inserted in The CANON plug between 2 and 3 feet . Connect a 120 European resistance, conne
ct this loop plug can avoid DMX512 signal reflection phenomenon in the transmission process of sig
nal.
This lamp use 3 core XLR plug(（plug seat）. If use 3 core XLR plugs（plug seat）, you must use a
conversion line （5 core to 3 core）, as shown:
The conversion of three and five core plug (male and female)
