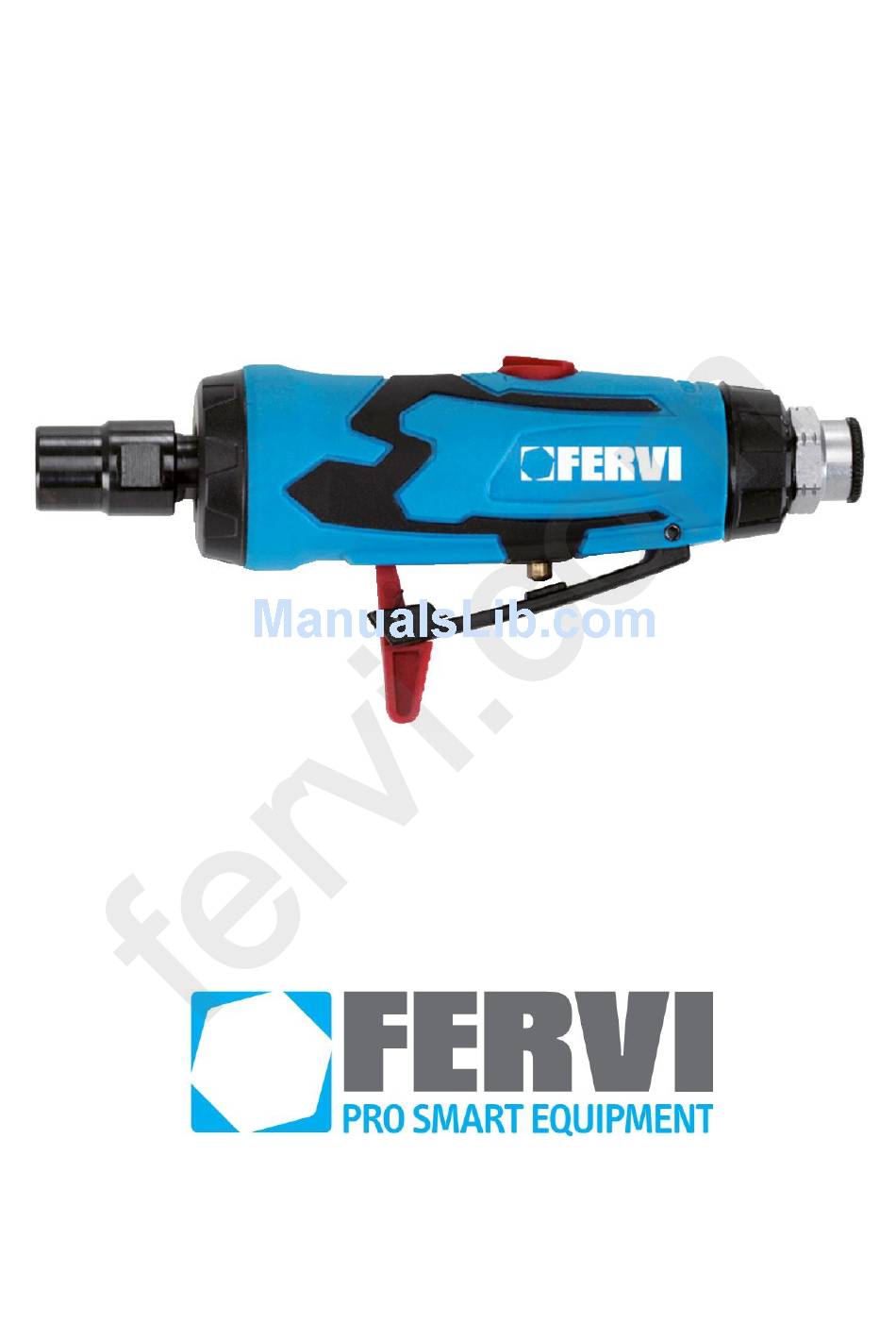

OPERATION AND MAINTENANCE MANUAL Mini air die grinder Art. 0413 TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
Page 2
Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2...
HARDWARE CONTENTS GENERAL SAFETY INSTRUCTIONS............. 4 Risks Associated with the Work Area ................4 Risks Associated with the Presence of Rotating and/or Moving Parts......4 Personal Protective Equipment ..................5 Technical Assistance .....................5 DESCRIPTION OF THE GRINDER AND INTENDED USE ....... 6 Technical specifications ....................6 Pictograms ........................7 Identification plate .......................7 IMPROPER USES AND PRECAUTIONS ............
HARDWARE 1 GENERAL SAFETY INSTRUCTIONS During use, maintain control of the tool. The operators represent the most important aspect of safety. Working cautiously and carefully is the best protection against the risk of injury. The pneumatic tool should not be used and repaired by someone under the influence of drugs or alcohol.
HARDWARE 1.3 Personal Protective Equipment When using the pneumatic tool, always wear the following: Safety shoes; Work gloves; Hearing protection Protective goggles. (cap, earplugs, etc.); 1.4 Technical Assistance For any problems and/or concerns, please contact, without hesitation, the Customer Service Department of the dealer, who has specialised staff, specific equipment and spare parts.
Replacing the abrasive tools (grinding wheels) it is possible to grind or polish different materials, such as metals, wood and plastic. The grinder Art. 0413 is composed of (see Figure 1): 1) the "torch" shaped shell, which contains the vane rotor and other moving parts;...
Maximum working pressure; nominal rotation speed. Figure 3 – Close-up of the identification plate Mini air die grinder Art. 0413 Batch no. Year of manufacture: 2013 Maximum working pressure: 600 Kpa (6 bar) Normal speed (spinning freely): 25000 r/min...
HARDWARE 3 IMPROPER USES AND PRECAUTIONS IT IS STRICTLY FORBIDDEN !! To allow the tool to be used by untrained personnel and those who have not read the instruction manual; To use the tool for different purposes and uses other than those for which it was designed, i.e.
HARDWARE 4 COMMISSIONING 1. Remove the air inlet cap, then screw the supplied nozzle into the hole: 1/4" NPT Male Quick-Release Coupling 2. Put a few drops of lubricating oil (without resin acid) in the air inlet nozzle. 3. Check the flexible air supply hose. If it is damaged, broken, torn or deformed it must not be connected to the tool.
HARDWARE 5 HOW TO USE 5.1 Attaching the Abrasive Tools (wheels) Crushing and Cutting Before attaching and/or removing the grinding wheels, always remove the air supply hose. Protective gloves Before attaching and/or removing the grinding wheels, wear suitable protective gloves. 1.
HARDWARE 5.2 Power On / Off (Personal Protective Equipment) PPE Before using the grinder, wear suitable work clothing, gloves, shoes and protective goggles. Also wear a mask if you work with materials that produce dust or fumes. Also wear protective devices for the ears (hearing protectors), such as earmuffs, earplugs, etc.
Page 12
HARDWARE The grinder's start lever is a continuous hold lever, in the sense that the function controlled (i.e., the rotation of the grinding wheel) is active as long as the lever itself is kept pressed. Therefore, release the lever to shut it down in an emergency. Emergency In case of an emergency, immediately release the grinder's power lever.
HARDWARE 6 MAINTENANCE AND CLEANING The purpose of this chapter is to provide all the information on maintenance procedures and frequency that the Grinder requires. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. Clean the air outlet nozzle 4.
HARDWARE 7 BILL OF MATERIALS AND SPARE PARTS Ref. Description Ref. Description 0413/01 Body of the Machine 0413/20 Sealing gasket 0413/02 Trigger 0413/21 Bearing 0413/03 Safety lock 0413/22 Rear cylinder head 0413/04 Spring 0413/23 Straight pin 0413/05 Straight pin 0413/24 Blade...
