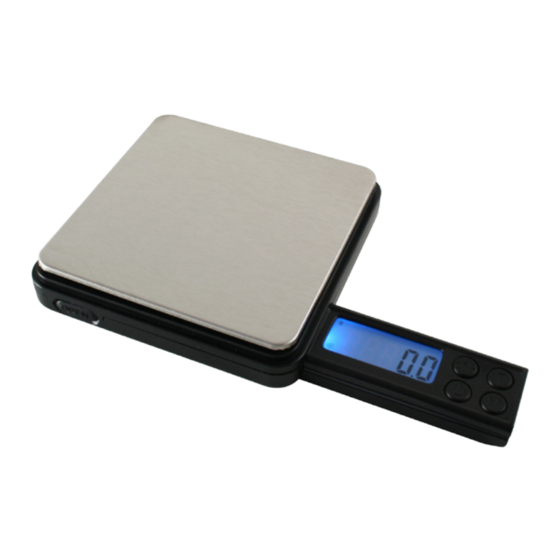

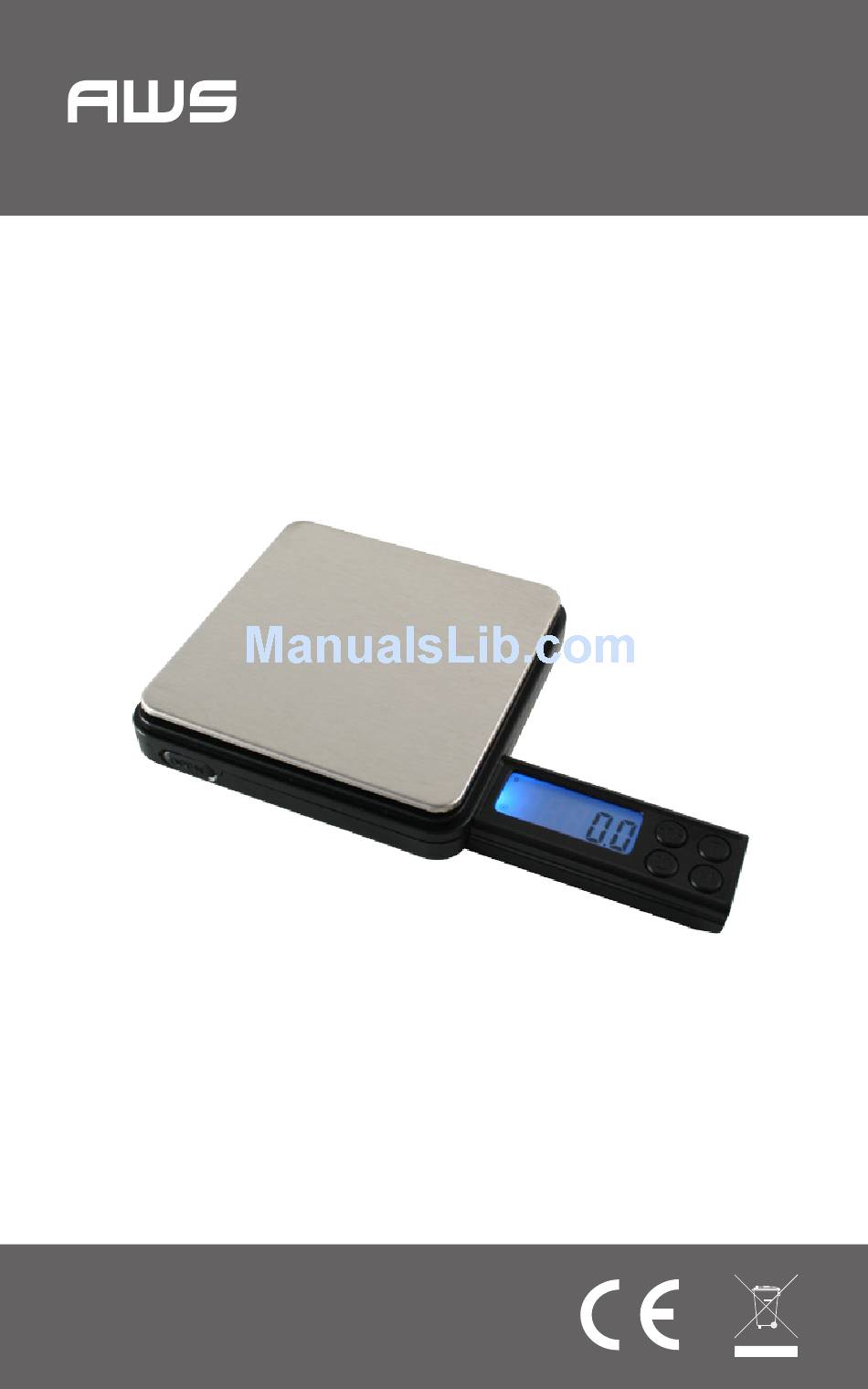

- Page 1 American Weigh Scales BLADE V2 User Manual BL2-50 (50g x 0.01g) BL2-100 (100g x 0.01g) BL2-400 (400g x 0.1g) Copyright © 2011 American Weigh Scales, Inc. All rights reserved. Rev. 2.0...
- Page 2 Blade V2 Manual Thank you for purchasing the American Weigh Blade v2 digital pocket scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 I. Part List 1. Scale 2. Cover/Expansion Tray (top and bottom) 3. AAA Batteries (x2) II. Key Description 1. Power Key - Turns the scale on or off. 2. Mode Key - Changes the displayed unit of measure. Enters calibration if pressed during startup (see VII) 3.
- Page 4 Blade V2 Manual Low batteries can cause inaccuracies in digital scales. If you are experiencing issues with your scale, first try new batteries. Most times, this will solve the problem. 1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.
- Page 5 of an empty container or vessel for net weight determination. NOTE: The weight of the container will subtract from the available capacity (subtractive taring). 1. Place the empty container or vessel on the weighing platform. 2. Press the T key once. The display will then reset to zero.
- Page 6 Blade V2 Manual Model Acceptable Calibration Recommended Tolerance (±) Mass Accuracy Class BL2-50 0.02g OIML M2 BL2-100 0.02g 100g OIML M2 BL2-400 0.2g 200g OIML M2 VIII. Adjustment 1. Press the key to turn the scale on, then immediately press and hold the M key until “CAL” is displayed then release.
- Page 7 Problem: Displayed weight is inaccurate • • Solution: Perform a calibration adjustment. If you are still having trouble, contact our warranty department. X. Error Codes 1. OUTZ - Zero point has drifted out of the acceptable range. Try to perform a calibration adjustment. If the problem persists, the load cell may be permanently damaged due to overloading.
- Page 8 Blade V2 Manual XII. Capacity/Readability Charts BL2-50 BL2-100 50g x 0.01g 100g x 0.01g 1.76oz x 0.001oz 3.527oz x 0.001oz 1.61ozt x 0.001ozt 3.215ozt x 0.001ozt 32.15dwt x 0.01dwt 64.30dwt x 0.01dwt 250ct x 0.05ct 500ct x 0.05ct 771.6gn x 0.2gn 1543.2gn x 0.2gn BL2-400 400g x 0.1g...
