1.2 Framework and Dimension

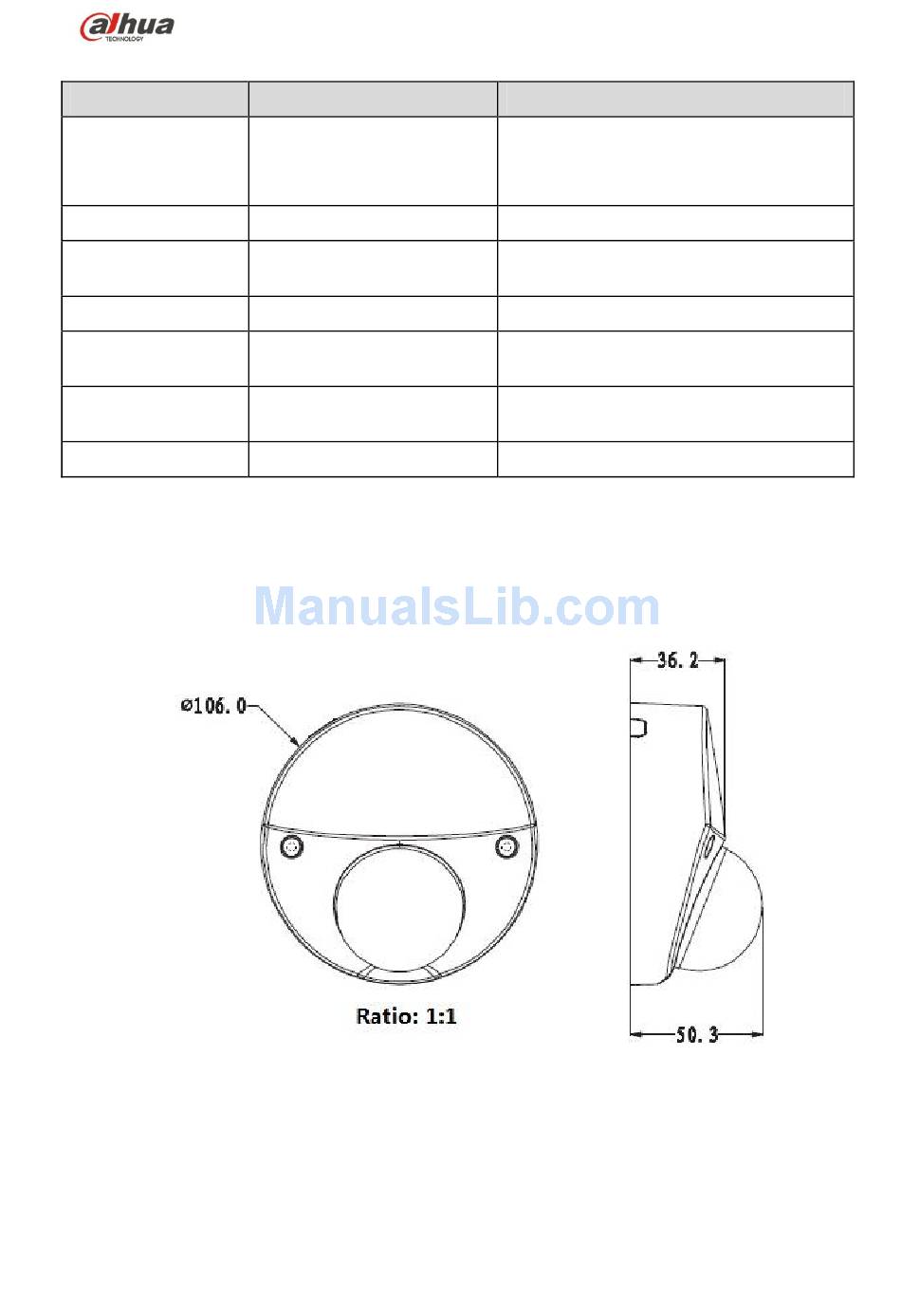

The figures are for reference only, which are used to know the device dimension. See Figure1-2 and
Figure 1-3. The unit is mm.
Port Name
Internet access port
Power input port
Audio input port
Audio output port
ALARM_IN1(Yellow)
ALARM_OUT1(Orange)
ALARM_GND (Gray)
Function
Network data in/out and PoE.
Note:
Some devices do not support PoE.
Connect to DC 12V power, input power.
Input audio signal, receive analog audio
signal from sound pick-up.etc
Output audio signal to speakers.etc
Alarm input port, receive on-off signal of
external alarm source.
Alarm output port, output alarm signal to
alarm device.
Ground terminal
Sheet 1-2
Figure1-2
