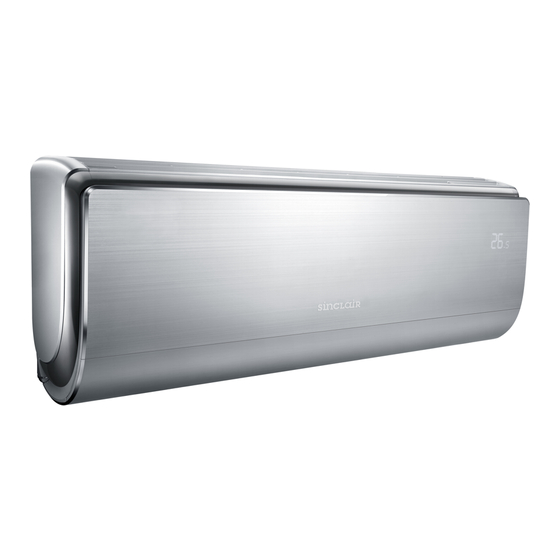

Sinclair ASH-13AIA PT User Manual

Arctic series
Hide thumbs Also See for ASH-13AIA PT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
USER'S MANUAL
ARCTIC SERIES
indoor unit
ASH-13AIA PT, ASH-18AIA PT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASH-13AIA PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sinclair ASH-13AIA PT

Summary of Contents for Sinclair ASH-13AIA PT

  • Page 1 USER'S MANUAL ARCTIC SERIES indoor unit ASH-13AIA PT, ASH-18AIA PT...
  • Page 2 „Original instruction“...
  • Page 3 Specialties note Matching instructions This model adopts RF remote control. The remote controller shall be matched with the air conditioner before operation, otherwise the remote control will be invalid. Before operation, please read the instructions in this page carefully and then do the corresponding matching operation. Note Please done the following operation within 2m from the unit.

  • Page 4: Operation And Maintenance

    Precautions WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
  • Page 6 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
  • Page 7 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
  • Page 8 Precautions WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.

  • Page 9: Parts Name

    Parts name Indoor Unit air inlet panel power wire filter horizontal louver air outlet remote controller power display tem.display NOTICE: Actual product may be different from above graphics, please refer to actual products.

  • Page 10: Buttons On Remote Controller

    Buttons on remote controller ON/OFF button +/- button Cool button Heat button Fan button I FEEL button up down swing button Mode button Left right swing button T-ON/T-OFF button Clock button Humidity button/Health button X-fan button Air button Light button Sleep button WIFI button Introduction for icons on display screen...

  • Page 11: Introduction For Buttons On Remote Controller

    Introduction for buttons on remote controller Note: ● After putting through the power, the air conditioner will give out a sound. Operation indictor " " is ON (red indicator). After that, you can operate the air conditioner by using remote controller. ●...
  • Page 12 Introduction for buttons on remote controller I FEEL button Press this button to start I FEEL function and " " will be displayed on the remote controller. After this function is set, the remote controller will send the detected ambient temperature to the controller and the unit will automatically adjust the indoor temperature according to the detected temperature.
  • Page 13 Introduction for buttons on remote controller ● When selecting auto mode, air conditioner will operate automatically according to ambient temperature. Set temperature can’t be adjusted and will not be displayed as well. Press "FAN" button can adjust fan speed. Press " "...
  • Page 14 Introduction for buttons on remote controller T-ON/T-OFF button ● T-ON button “T-ON” button can set the time for timer on. After pressing this button, " " icon disappears and the word “ON" on remote controller blinks. Press “+” or “-”button to adjust T-ON setting.
  • Page 15 Introduction for buttons on remote controller Humdity/health button Press this button to select your required operation mode. cancel INTELLIGENT INTELLIGENT Note:there is no this function for this unit. If press this button,the main unit will click, but it also runs under original status. X-FAN button Pressing this button in COOL or DRY mode, the icon "...
  • Page 16 Introduction for buttons on remote controller In Sleep 1 and Sleep 2, the air conditioner will run according to a group of presetting ● temperature curves. Sleep 3 - the sleep curve setting under DIY Sleep mode: ● (1) Under Sleep 3 mode, long press "AIR" button, the remote controller will enter the setting of personalized sleep.

  • Page 17: Function Introduction For Combination Buttons

    Function introduction for combination buttons About X-FAN function This function indicates that moisture on evaporator of indoor unit will be blowed after the unit is stopped to avoid mould. 1. Having set X-FAN function on: After turning off the unit by pressing ON/OFF button indoor fan will continue running for about 2 min.

  • Page 18: Replacement Of Batteries In Remote Controller

    Operation guide After putting through the power, press "ON/OFF" button on remote controller to turn on the air conditioner. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN, HEAT. Press "+" or " - " button to set your required temperature. (Temperature can’t be adjusted under auto mode).

  • Page 19: Emergency Operation

    Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: air conditioner. When the air conditioner is turned on, it will operate under auto mode.
  • Page 20 Clean and maintenance Open panel Open the panel into a certain ● Use dust catcher or water to angle(less than 60°, do not open the panel too forcibly) along the arrow direction from the two the water (below 45℃ ) to clean sides of panel.

  • Page 21: Notice For Recovery

    Clean and maintenance NOTICE: Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether air switch, plug and socket are in good condition. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.

  • Page 22: Malfunction Analysis

    Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Check items Solution ● Whether it's interfered severely ● Pull out the plug. Reinsert (such as static electricity,stable the plug after about 3min, and voltage)?
  • Page 23 Malfunction analysis Phenomenon Check items Solution ● Power failure? ● Wait until power recovery. ● Is plug loose? ● Reinsert the plug. ● Air switch trips off or fuse is ● Ask professional to replace burnt out? air switch or fuse. Air condit- ●...
  • Page 24 Malfunction analysis Phenomenon Check items Solution ● Whether there’s odour source, ● Eliminate the odour source. Odours are such as furniture and cigarette, emitted ● Clean the filter. etc. ● Whether there’s interference, ● Disconnect power, put back Air conditioner such as thunder, wireless power, and then turn on the operates nor-...

  • Page 25: Error Code

    Malfunction analysis Error Code ● When air conditioner status is abnormal, temperature indictor on indoor unit will ation of error code. Error code Troubleshooting It can be eliminated after restarting the unit. If not , please It can be eliminated after restarting the unit. If not , please It can be eliminated after restarting the unit.

  • Page 26: Installation Dimension Diagram

    Installation dimension diagram Space to the wall At least 15cm At least 15cm Space to the wall...

  • Page 27: Tools For Installation

    Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: ●...

  • Page 28: Requirements For Electric Connection

    Requirements for electric connection Safety precaution 1. Must follow the electric safety regulations when installing the unit. air switch. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.

  • Page 29: Installation Of Indoor Unit

    Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3.
  • Page 30 Installation of indoor unit Indoor outdoor Note: ● Pay attention to dust prevention and take relevant safety measures when Φ55 opening the hole. 5-10 ● The plastic expansion particles are not provided and should be bought locally. Step four: outlet pipe 1.
  • Page 31 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench Φ 6 15~20 Φ 9.52 30~40 union nut Φ 12 45~55 pipe Φ 16 60~65 torque wrench Φ 19 70~75 indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape.
  • Page 32 Installation of indoor unit 2. Make the power connection wire go cable-cross through the cable-cross hole at the back hole of indoor unit and then pull it out from the front side. power connection wire 3. Remove the wire clip; connect the power connection wire to the wiring terminal with wire clip.After finishing wiring of 18K unit, clamp the grounding wire (yellow- green wire) into the wire-crossing groove as shown in the following figure, in order to avoid pressing the wire when closing the electric box cover.
  • Page 33 Installation of indoor unit Step eight: bind up pipe 1. Bind up the connection pipe, power drain hose connection pipe band cord and drain hose with the band. indoor and outdoor power cord indoor unit pipe indoor power cord liquid pipe 3.

  • Page 34: Vacuum Pumping

    Vacuum pumping Use vacuum pump 1. Remove the valve caps on the liquid valve and gas liquid valve piezometer valve and the nut of refri- gas valve gerant charging vent. 2. Connect the charging hose refrigerant charging valve cap vent of piezometer to the refri- gerant charging vent of gas nut of refrigerant...

  • Page 35: Check After Installation

    Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been installed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling Have you done the refrigerant leakage test? (heating) capacity.

  • Page 36: Configuration Of Connection Pipe

    Configuration of connection pipe 1. Standard length of connection pipe ● 5m, 7.5m, 8m. 2.Min. length of connection pipe is 3m. 3.Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling Max height of connec- of connec- capacity...
  • Page 37 Configuration of connection pipe Additional refrigerant charging amount for R410A Diameter of connection pipe Outdoor unit throttle Liquid pipe(mm) Gas pipe(mm) Cooling only(g/m) Cooling and heating(g/m) Φ6 Φ9.52 or Φ12 Φ6 or Φ9.52 Φ16 or Φ19 Φ12 Φ19 or Φ22.2 Φ16 Φ25.4 or Φ31.8 Φ19...

  • Page 38: Pipe Expanding Method

    Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port ● Confirm the pipe length according to ● Expand the port with expander. the distance of indoor unit and hard outdoor unit.
  • Page 39 ELECTRIC SCHEMATIC DIAGRAM ASH-13AIA PT indoor ASH-18AIA PT indoor...
  • Page 40 RATING LABEL...
  • Page 41 ENERGY LABEL...
  • Page 42 In case of quality problem or other please contact your local supplier or authorized service center. Emergency number: 112 PRODUCER Producer: SINCLAIR CORPORATION Ltd., 1-4 Argyll St., London W1F 7LD, UK, www.sinclair-eu.com This product was manufactured in China (Made in China). REPRESENTATIVE, TECHNICAL SUPPORT NEPA spol.
