AJ Aircraft 73" Laser 230z Assembly Manual

Hide thumbs Also See for 73" Laser 230z:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73" Laser 230z and is the answer not in the manual?

Questions and answers

Related Manuals for AJ Aircraft 73" Laser 230z

Summary of Contents for AJ Aircraft 73" Laser 230z

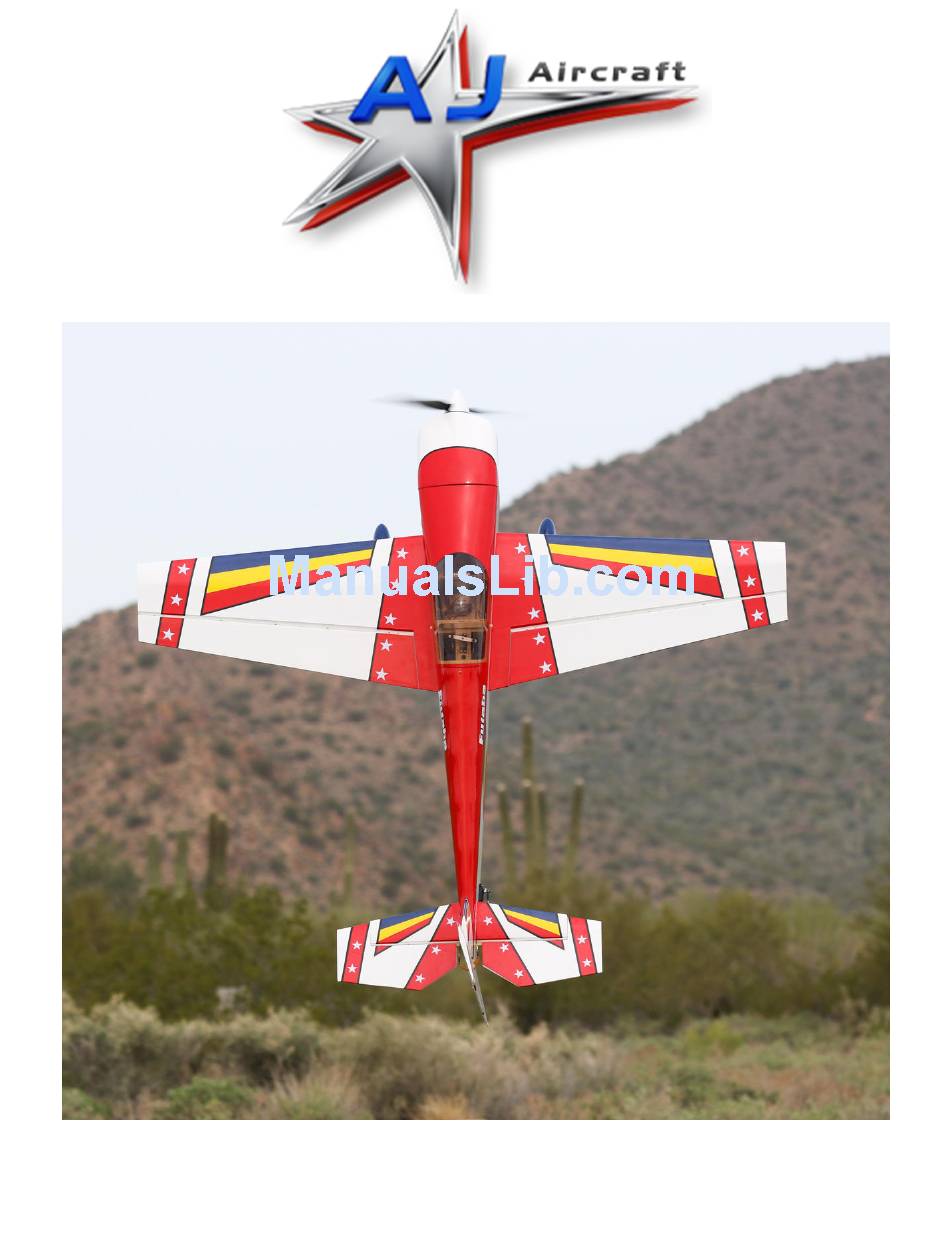

  • Page 1 Assembly Instructions...
  • Page 2 Congratulations AJ Aircra thanks you for the purchase of this airplane. Top grade materials and precision assembly has gone into this to make this a top quality aircra . Following the direc ons closely, will assure you many hours of thrilling flight.
  • Page 3 Assembly Instructions Section 1 — Wings 1) U lizing a hot knife, cut carefully and remove the covering exposing the servo pocket located on the un- derside of each wing. 2) Carefully locate and cut the aileron control horn slot on the underside of the aileron. 3) Using low tack masking tape, tape around the edges of the aileron control horn slot leaving slot exposed.
  • Page 4 Assembly Instructions Section 2— Fuselage 1) Remove the fuselage and using the hot knife, remove the covering from the areas to allow the dowels, wing tube, aileron extensions and wing capture bolt to pass through. 2) Carefully remove the covering exposing the horizontal stabilizer slot. 3) Test fit the horizontal stabilizer making sure it is centered and aligned to the fuselage.
  • Page 5 Assembly Instructions Section 2 Fuselage — Elevator (continued) Installa on of Elevator Control Hinges 11) Test fit all hinges into elevator and horizontal stabilizer to make sure alignment and posi on is correct. Also make sure there is enough clearance between the elevator joiner so as not to rub on the fuselage. Should there be clearance issues, you may touch it up with a Dremel and a sanding drum 12) Clean the points with denatured alcohol.
  • Page 6 Assembly Instructions Section 3 Fuselage — Landing Gear Tail Gear 1) Remove tail gear from package and associated screws. 2) Slide the rod on the tail gear through the ball link on the bo)om of the rudder. 3) Line up the bolt holes in the landing gear mount with those on the bo)om of the fuselage. 4) Place a drop of blue Loc te on the bolt and screw them in place securely.
  • Page 7 Assembly Instructions Section 4 Fuselage — Motor Mount (Electric) 1) Remove pre-fabricated motor mount. 2) Align the motor mount with the lines on the fuselage. 3) Make sure the mount is level and u lize masking tape to hold the mount in place. 4) Mark and drill 4 holes for the moun ng 5) Install mount using supplied hardware.

  • Page 8: Control Throws

    Assembly Instructions Section 5 Radio Installation & Setup Suggested Servo Extension Lengths: Elevator—24 inch Speed Controller— 18 inch Ailerons— 12 inch with 6 inch extension coming from receiver While the final setup is of personal preference, these are some general guidelines to make your first flight a success Control Throws Low Rates: A.
