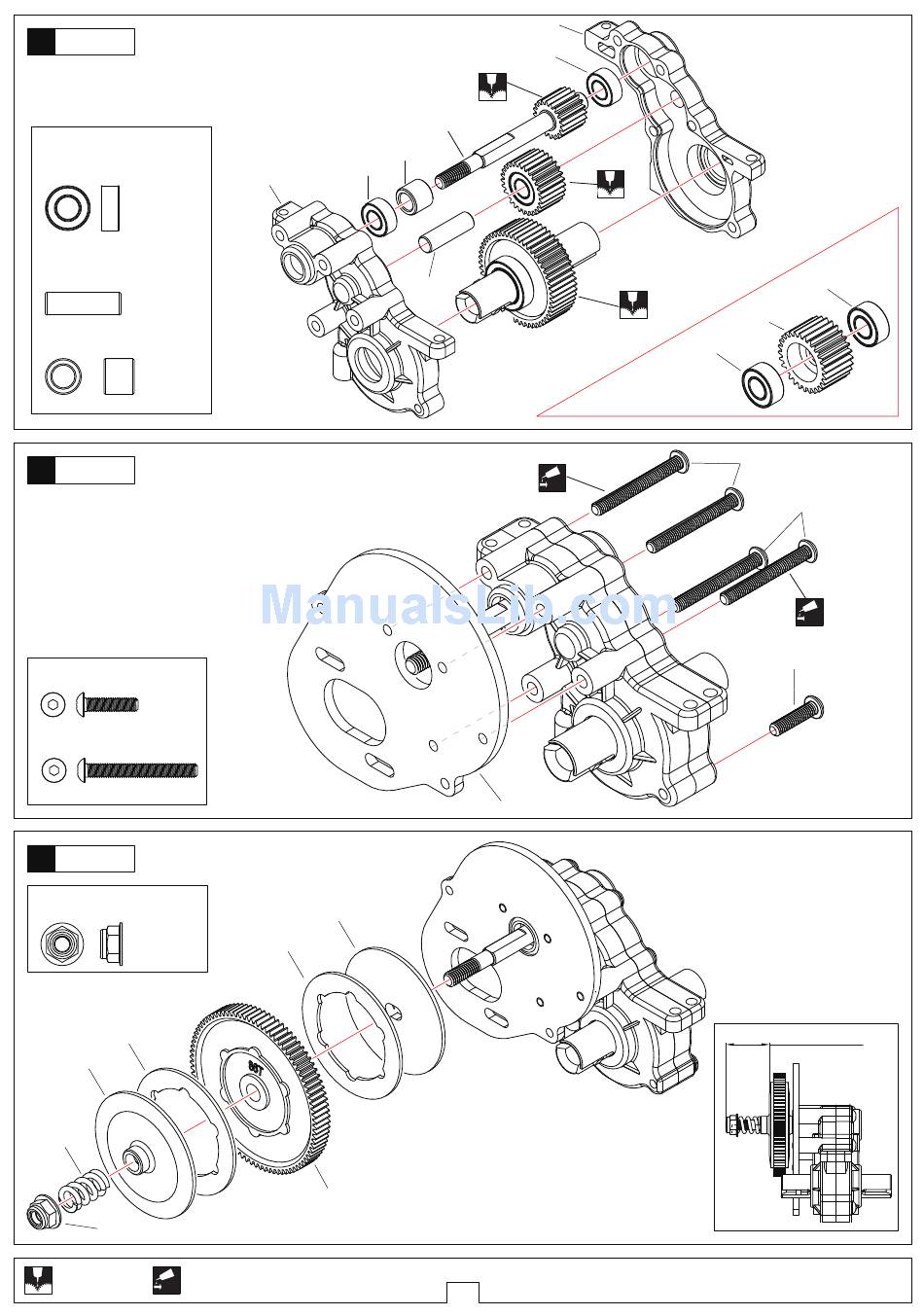

Team C TS2 Manual page 12

17
Transmission
T02100 5x10x4 Ball bearing
..................4
T02051 5x16.8 Idler gear shaft
..................1
T02041 5x8x6.7 Top shaft spacer
...............1
18
Motor Mount
T02082 M3x12 Screw
............1
T02082 M3x25 Screw
.........4
19
Spur Gear
T02084 M4 Flanged Nylon Nut
...............1
T02038
T02039
T02040
T02084
Apply threadlocker(screw cement)
Apply Grease
Screw
Cement
<Right>
T02041
T02100
T02006
T02051
T02039
T02038
TG2001(86T)
T02006
T02100
T02052
Screw
Cement
T02036
8
<Left>
T02100
TS2031
T02100
T02082(3x25)
T02082(3x25)
Screw
Cement
T02082(3x12)
approx.18mm
