Console connections: Power

There is no on/off switch on the DDX-USR module, so operation begins as soon
as power is applied. The supplied power adapter uses a locking-type plug to help
prevent accidental disconnections; please follow the instructions given right whenever
disconnecting a power adapter.

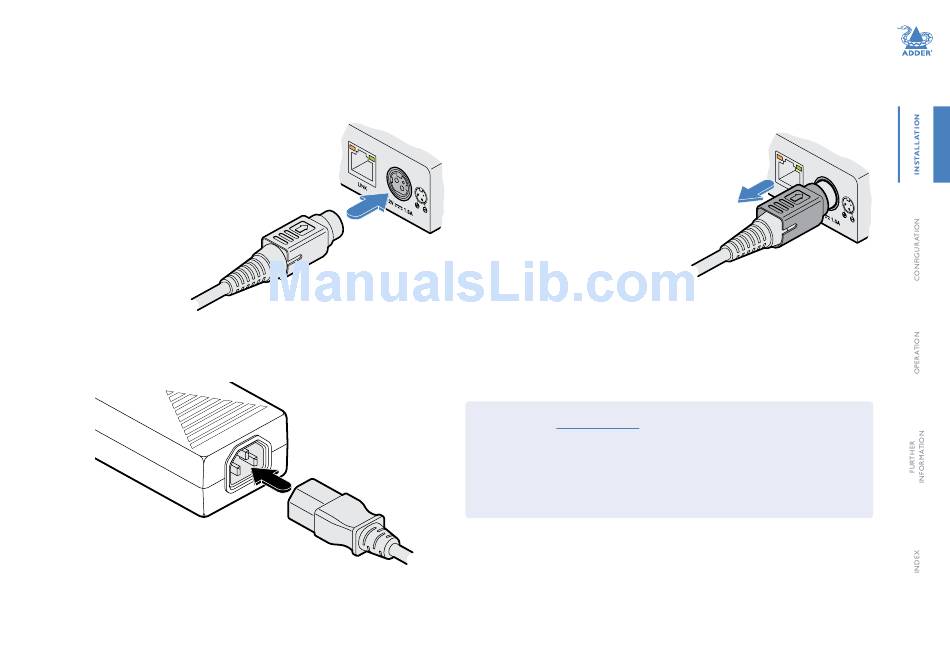

To connect the power adapter
1 Attach the output plug of the supplied power adapter to
the power input socket on the rear panel of the DDX-USR
module.
From the
power adapter
2 Connect the IEC connector of the supplied country-specific power cord to the socket
of the power adapter.
3 Connect the power cord to a nearby main supply socket.
To disconnect the power adapter
1 Isolate the power adapter from the mains supply.
2 Grasp the outer body of the power adapter plug
where it connects with the module.
3 Gently pull the body of the outer plug away from
the module. As the body of the plug slides back,
it will release from the socket and you can fully
withdraw the whole plug.
IMPORTANT: Please read and adhere to the electrical safety information
given within the section of this guide. In particular, do not
Safety information
use an unearthed power socket or extension cable.
Note: Both the modules and the power supplies generate heat when in operation and will
become warm to the touch. Do not enclose them or place them in locations where air cannot
circulate to cool the equipment. Do not operate the equipment in ambient temperatures
exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose
surface temperature exceeds 40 degrees Centigrade.
Gently pull back the plug outer
body to release the lock
13
