Console connections: Audio

The DDX-USR module supports stereo speakers, headphones and also a microphone
port. All audio devices are presented at the linked host computer as USB audio devices.
Note: In multi-head installations, the audio devices must be attached only to the DDX-USR
module that drives the main display.

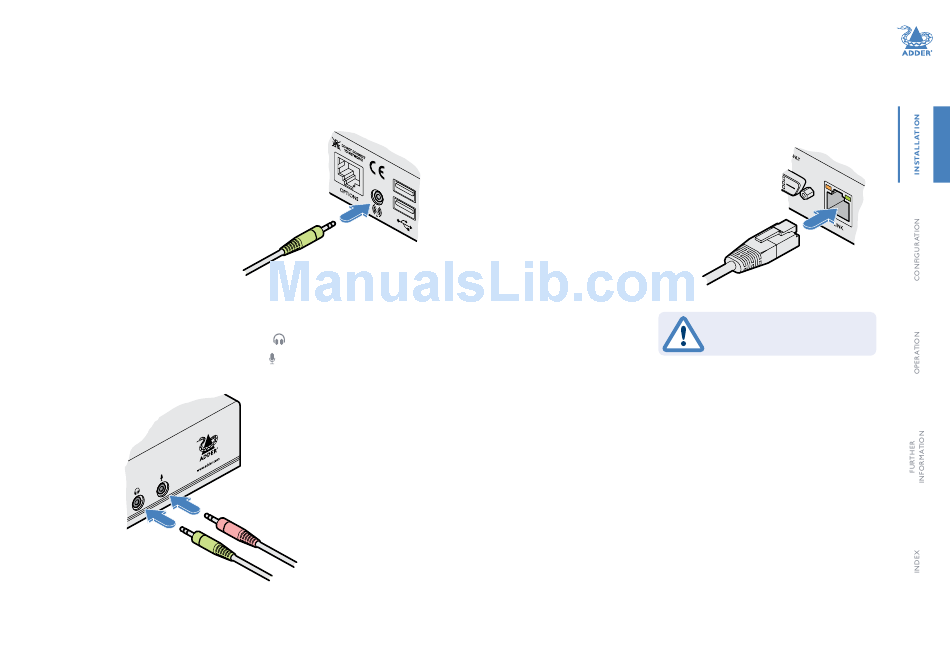

To connect your speakers
1 Connect your speakers to the audio line out socket on
the user module rear panel.
From your speakers
To connect your headphones/microphone
1 Connect your headphones to the socket labeled
2 Connect your microphone to the socket labeled
on the user module front panel.
on the user module front panel.
From your microphone
From your headphones

Console connections: Data link

Each DDX-USR module is linked via a CATx cable either to a central DDX switch
module or directly to a DDX-CAM module (for a single system installation).
For best results use CAT7 cables to link all DDX-CAM modules - do not exceed 50
metres (164 feet).
To link the DDX-USR module
1 Connect a suitable CATx cable to the LINK socket on the rear panel of the DDX-USR
module. Connect the other end of the cable to either
a DDX switch or directly to a DDX-CAM computer
module.
From DDX switch or

Console connections: Options port

The options port is reserved for future use.
DDX-CAM
This is NOT an Ethernet/network
port and must NEVER be connected
to any networking equipment.
12
