Tennant 1100 Operator And Parts Manual

Tennant 1100 Operator And Parts Manual

Portable carpet extractor
Hide thumbs Also See for 1100:
Table of Contents

Advertisement

Quick Links

See also: Operator and Parts Manual
Model No.:
607721
607729 – Pac
TENNANT COMPANY
Commercial Products
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
FAX: 1–800–678–4240
CUSTOMER SERVICE: 1–800-982-7658
Home
Find... Go To..
1100
Portable Carpet Extractor
Operator and Parts Manual
Rev. 00 (11-99)
607722

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant 1100

Summary of Contents for Tennant 1100

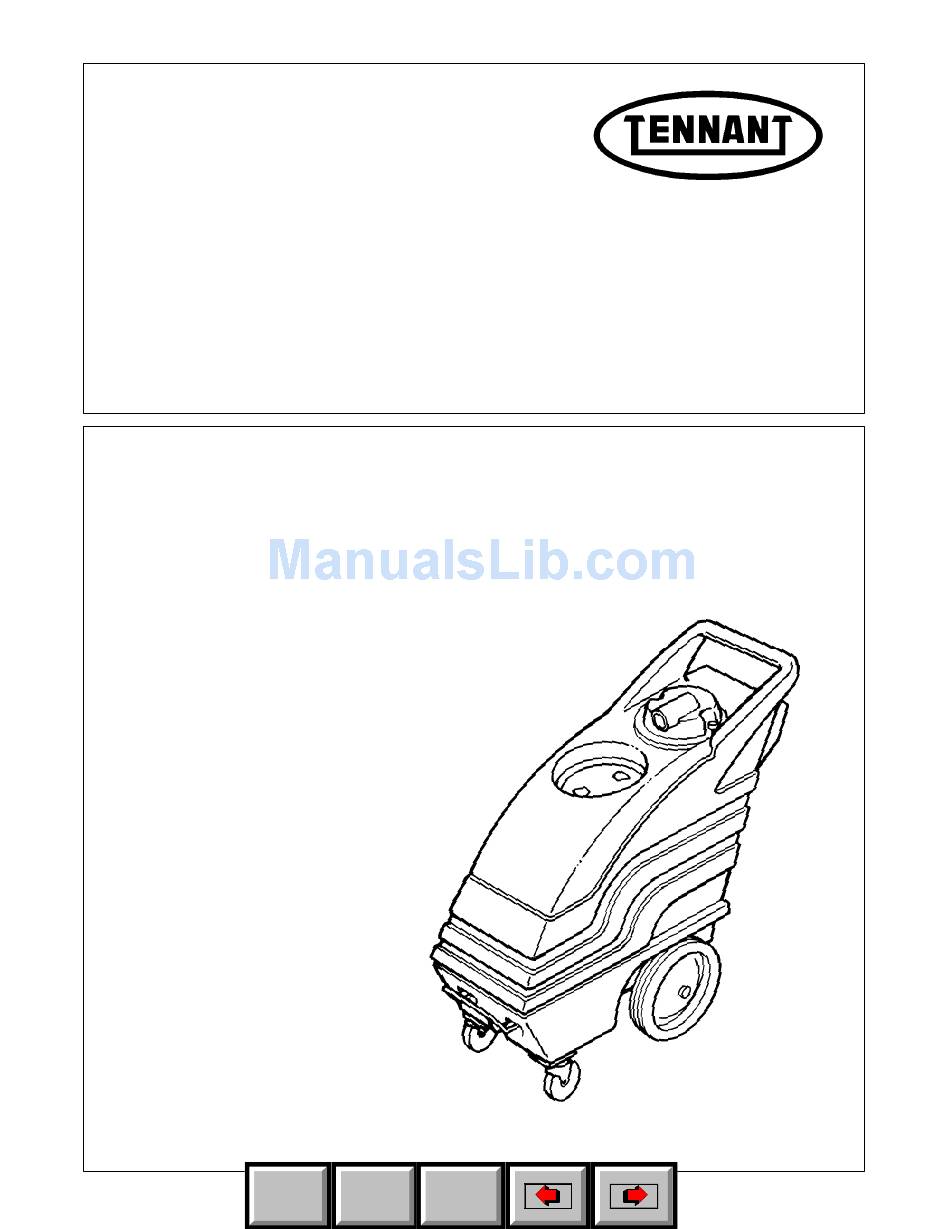

  • Page 1 1100 Portable Carpet Extractor Model No.: Operator and Parts Manual 607721 607729 – Pac TENNANT COMPANY Commercial Products 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 607722 FAX: 1–800–678–4240 Rev. 00 (11-99) CUSTOMER SERVICE: 1–800-982-7658 Home Find... Go To..

  • Page 2: Table Of Contents

    Parts and supplies may be ordered by phone or mail Serial No.- from any authorized parts and service center, distributor or from any of the manufacturer’s E1999 Tennant Company Printed in U.S.A. subsidiaries. This machine will provide excellent service. However, the best results will be obtained at minimum costs if: The machine is operated with reasonable care.

  • Page 3: Safety Precautions

    Do not stretch cord. – Do not handle plug with wet hands. – Keep cord away from heated surfaces. – Report machine damage or faulty operation immediately. – Follow mixing and handling instructions on chemical containers. Tennant 1100 (11–99) Home Find... Go To..

  • Page 4: Machine Components

    1. Unscrew and remove flat clear lid. Fill solution bladder with 38 liters (10 gal) of hot water, 60 C FIG. 2. (140 F) maximum (Figure 1). 5. Route hoses through front lift handle (Figure 3). Tennant 1100 (07–99) Home Find... Go To..

  • Page 5: Machine Operation

    Release 3. Activate ON/OFF switch to ”ON”. trigger 150 mm (6 in) from end of stroke (Figure 5). Tennant 1100 (11–99) Home Find... Go To..

  • Page 6: Draining Recovery Tank

    1. Turn switch off and disconnect power cord. FOR SAFETY: When servicing machine, unplug cord from wall outlet. 2. Remove drain hose from holder, position a discharge bucket under drain hose and twist off drain hose knob (Figure 7). Tennant 1100 (11–99) Home Find... Go To..

  • Page 7: Storing Machine

    7.5 L (2 gal) of hot 5. Squeeze trigger on tool for 30 seconds. water, 60 C (140 F) maximum. b. Spray solution into a bucket . 6. Allow antifreeze to remain in system. Tennant 1100 (11–99) Home Find... Go To..

  • Page 8: Trouble Shooting

    Install valve rebuild kit or contact Service Center. Hose split or fittings loose. Replace hose and tighten fittings. Quick coupler and plug not fully Reconnect quick coupler. engaged. Valve stem worn. Replace or contact Service Center. Tennant 1100 (07–99) Home Find... Go To..

  • Page 9: Specifications

    127 mm (5 in) Hand Tool/1 tip = 1 ltr (32oz) per minute VACUUM MOTOR 120 volt, 3–stage, 1.66 hp, 13 amp,1560 watts SEALED WATER LIFT 3.5m (137 in) DECIBEL RATING AT OPERATOR’S EAR, INDOORS ON 80dB(A) CARPET Tennant 1100 (07–99) Home Find... Go To..

  • Page 10: Parts List

    PARTS LIST RECOVERY/SOLUTION TANK GROUP Tennant 1100 (02–97) Home Find... Go To..
  • Page 11 SCREEN, TANK 607725 TANK, RECOVERY, TEAL 602715 BLADDER, SOLUTION DECAL LIST Ref. Part No. Description Qty. 608130 DECAL, SIDE ”1100” 120619 DECAL, WARNING, EXTRACTORS 120906 DECAL, IMPORTANT–DRAIN 120907 DECAL, IMPORTANT–ALWAYS CLOSE 120399 DECAL, DO NOT ALLOW FOAM 120210 DECAL, TENNANT LOGO Tennant 1100 (07–99)
  • Page 12 PARTS LIST MAIN CHASSIS GROUP Tennant 1100 (02–97) Home Find... Go To..
  • Page 13 SCREW, 3/8–16X1/4 140017 WASHER, LOCK 231026.BK BRACKET, HANDLE 607723 CHASSIS, TEAL 140552 140916 CLAMP 140000 WASHER, FLAT 140501 140900 SCREW, 10–24X3/4 140889 SCREW, 1/4–20X3/4 140016 WASHER, LOCK 140000 WASHER, FLAT 600451 PLATE, BLADDER Tennant 1100 (07–99) Home Find... Go To..
  • Page 14 2.5FT 600451 PLATE, BLADDER 140016 WASHER, LOCK 1/4” 140000 WASHER, FLAT 140889 SCREW, MCH 1/4–20X3/4 140011 WASHER, FLAT 3/16 140917 SPACER, NYLON 607723 CHASSIS, TEAL 140354 SCREW, 10–24X3” 140899 SCREW, 10–24X1–1/4 6032.6 SCREW Tennant 1100 (07–99) Home Find... Go To..
  • Page 15 KIT, PRESSURE SWITCH (VITON) 190134 KIT, DIAPHRAGM ONLY 190128 KIT, UPPER PUMP HOUSING 190124 KIT, CHECK VALVE ONLY 190171 KIT, VALVE (VITON) 190131 KIT, SERVICE 190130 KIT, LOWER PUMP HOUSING 180103 PUMP, 100 PSI Tennant 1100 (07–99) Home Find... Go To..

  • Page 16: Electrical Diagram

    WIRE DIAGRAM BLACK BLACK MAIN WHITE SWITCH GREEN HANDLE CORD POWER 14–4 CORD BLACK GREEN VACUUM GREEN MOTOR SOLUTION PUMP Tennant 1100 (07–99) Home Find... Go To..

  • Page 17: Optional Parts

    HOSE, SOLUTION 25’ 150913 COUPLER, QUICK SER. 60 150933 PLUG, QUICK COUPLER 150615 NIPPLE 160400 HOSE, VACUUM 15’ W/ CUFFS 160401 HOSE, VACUUM 25’ W/ CUFFS 160430 CUFF, HOSE 1–1/2” 160451 CONNECTOR, VACUUM HOSE 1–1/2” Tennant 1100 (02–97) Home Find... Go To..
  • Page 18 NIPPLE, HEX 1/4” 140058 WASHER 700062 ASM., SPRAY BAR 150700 CROSS 150600 NIPPLE 150401 ELBOW, 90_ 1/4FX1/4F 200993 SPRAY BODY 200996 SCREEN, SPRAY BODY 200964 200994 CAP, SPRAY BODY PLATE, GLIDE END FASTENERS Tennant 1100 (10–96) Home Find... Go To..
