Summary of Contents for Hark Barrel Spit HK0529

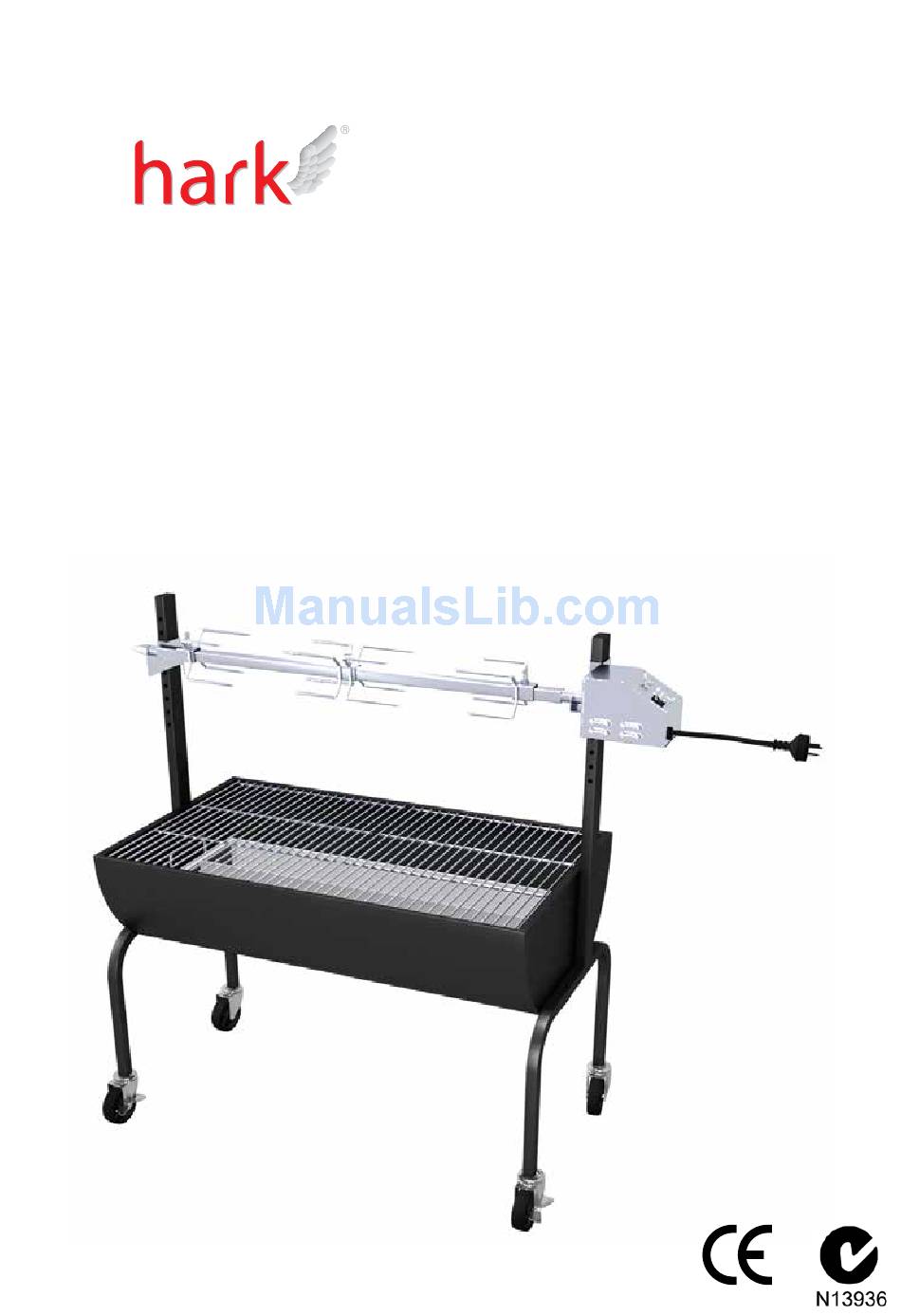

- Page 1 BARREL SPIT g r i l l r o a s t s m o k e ASSEMBLY AND OPERATION INSTRUCTIONS...
- Page 3 Barrel spit Warranty Details Hark Enterprises Pty Ltd warrants that this genuine HARK® brand product is free from defects in workmanship and materials for 12 months from the date of purchase. If as a result of normal use in compliance with the manufacturer’s instructions the product fails to operate within the warranty period, we will repair or replace the product.
-
Page 4: Before Assembly
Model No.: HK0529 Product Name: BARREL SPIT Line drawings are not to scale. Actual products may differ from drawing depending on the model purchased. Specifications are subject to change without notice. FOR OUTDOOR USE ONLY. PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING. -
Page 5: Outdoor Use Only
READ ALL INSTRUCTIONS, WARNINGS & SAFEGUARDS PRIOR TO ASSEMBLY & OPERATION. FAILURE TO DO SO MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. DANGER DANGER - The Hark Barrel Spit ("spit") is for - The spit is HOT while in use and after use. Always ®... -
Page 6: Parts List
Hardware List PARTS LIST Description M6 X 30 Screw M6 Flange Nut Parts List Description Grill body Charcoal tray Caster wheels Cooking grid Motor (with bracket) Spit rod End suport bracket Single sided 4 prong skewer Leg brace Double sided 4 prong skewer Neck brace Single 2 prong skewer Angle lock pin... - Page 7 A. ASSEMBLY OF THE BARBECUE STEP 1 ATTACH CASTER WHEELS — Attach 1 x plain caster wheel and 1 x locking caster wheel to each leg as per Fig. 1. The locking caster wheel should be attached to the ‘longer’ leg. Fig 1 ...
- Page 8 STEP 3 POSITION CHARCOAL TRAY — Place the charcoal tray into the bottom of the grill body. Place the 2 cooking grids on the top ledge if using the BBQ function. Fig 3 STEP 4 POSITION MOTOR — Refer to Fig 4. Slide the electric motor with bracket onto one vertical upright and use an angle locking pin to fix the height position where the rotisserie spit rod will be located.
- Page 9 STEP 5 POSITION END SUPPORT BRACKET — Refer to Fig 5. Slide the end support bracket onto the other vertical upright. And use an angle locking pin to fix the height position. When you install the rotisserie spit rod, you can adjust and fix the final height position of the support bracket, in order to have the spit rod level.
-
Page 10: Rotisserie Set Up
ROTISSERIE FORKS AND ATTACHMENTS The Barrel Spit has been supplied with a variety of rotisserie forks and attachments for different types of Rotisserie Cooking. Single 4 prong skewer Double 4 prong skewer Single 4 prong skewer Single 2 prong skewer Neck brace Spit rod Leg brace... - Page 11 Multiple Cuts of Meat or Chickens Single Sided Skewer Double Sided Skewer The double sided skewer is positioned in the middle of the spit rod and the food is positioned either side of this. The single sided skewers are then placed on either end and pushed together to secure the meat in place.
-
Page 12: Lighting Your Fire
LIGHTING YOUR FIRE — Remember, patience is a virtue! Cooking with charcoal and wood is more complicated than using gas but you will get a much better result. Always allow yourself plenty of time to prepare the fire prior to cooking. —... - Page 13 Hark Enterprises Pty Ltd Unit 11, 41-49 Norcal Rd, Nunawading, VIC 3131 T: 1300 799 787 E: service @ hark.com.au W: www.hark.com.au...
