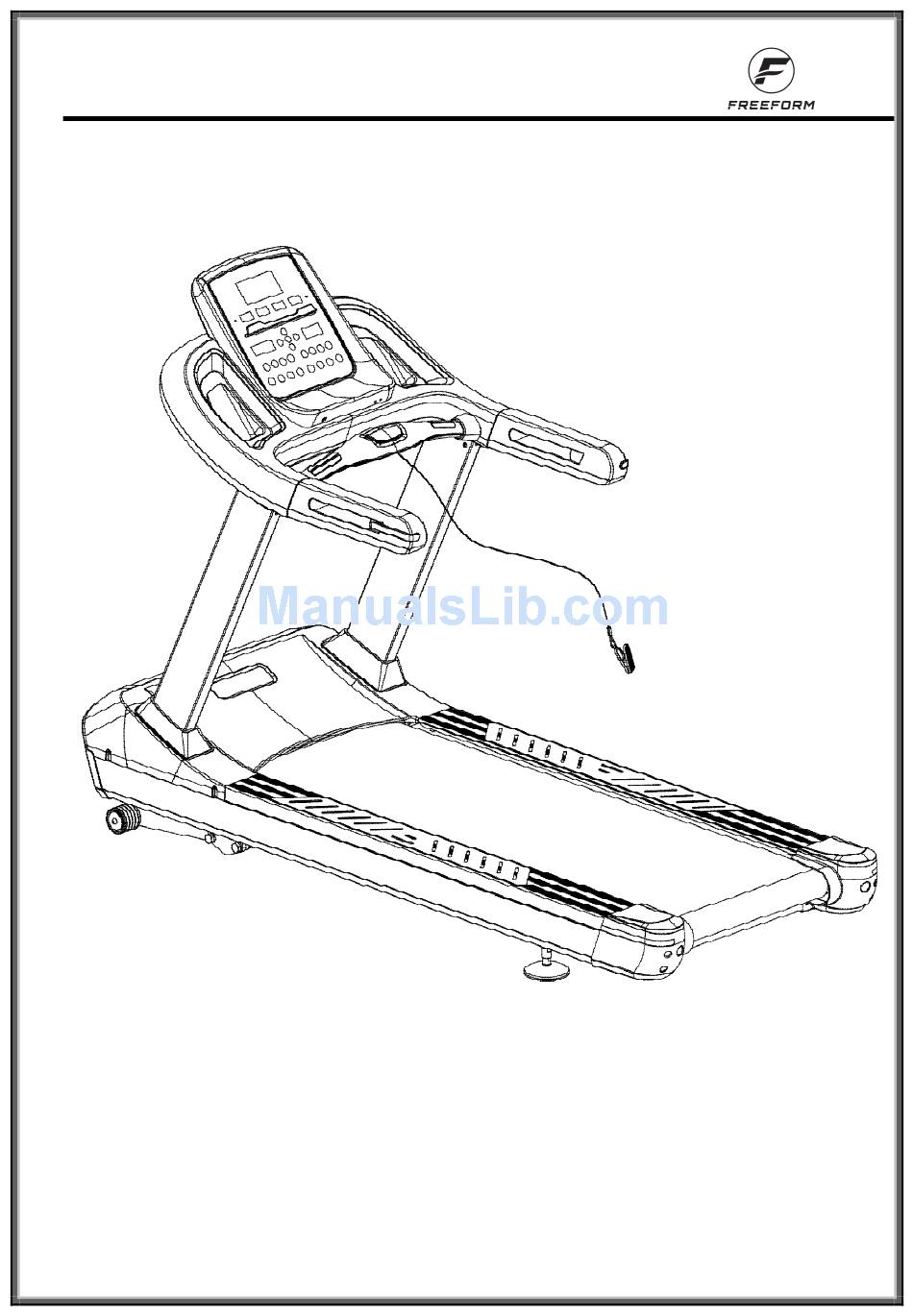

F2000 Treadmill
Special tips:
1.
Before installation and operation, please read this operation manual carefully.
2.
Please save this manual for future reference.
3.
Product may vary slightly from the item pictured due to model upgrades
Operating Instructions Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Freeform F2000

  • Page 1 F2000 Treadmill Operating Instructions Manual Special tips: Before installation and operation, please read this operation manual carefully. Please save this manual for future reference. Product may vary slightly from the item pictured due to model upgrades...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. Danger To reduce the risk of electric shock disconnect your treadmill from the electrical outlet –...
  • Page 3: Important Operation Instructions

    2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power. 4) NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near a pool, or in any other high humidity environment. IMPORTANT OPERATION INSTRUCTIONS 1) Insert the power plug into the socket directly.
  • Page 4: Specification

    ASSEMBLY INSTRUCTIONS When you open the carton, you will find the below spare parts: Parts List: NO. DES. Specification NO. DES. Specification Nos. Main Frame Left handle bar Left upright tube Right handle bar Right upright tube Bolt M8*15 Bolt M10*20 Washer M5*16...
  • Page 5 Notice: Do not get through power before complete assembly Step 1: 1. Open the carton, get out the above spare parts, and put the Main Frame on the level ground. 2.Use the Phillips screwdriver (81) to remove the screw ST4.2*20(116) ; 3.Use the 8#Allen wrench (79) to remove the bolt M10*20 (106) and the spring washer (126),...
  • Page 6 Step 4: 1. Disassemble bolt M6*12 (113) by using 5#Allen wrench (80), remove the motor top cover (11). Step 5: 1.Fix the left and right upright tubes (C, D) to the main frame (1) with bolt M10*20 (106),spring washer (126) and flat washer (120) by using 8#Allen wrench (79).
  • Page 7 Step 7: 1. Insert left and right upright tube covers (15, 16) into left and right upright tubes (C, D). 2. Fix the console (A) to the left and right upright tubes (C, D) with bolt M10*20 (106), spring washer (126) and flat washer (120) by using 8#Allen wrench (79).
  • Page 8 Step10: 1. Fix the Left and right upright tube covers (15、16) to the motor top cover (11) . Step11: 1. Fix the left and right handle bar (E、 F) to the console (A) with bolt M8*15(133) and washer (124) by using 5# Allen Wrench (80).
  • Page 9: Safety Key Instructions

    SAFETY KEY INSTRUCTIONS 1. Attach the clip of the safety pulling rope (64) to your cloth. 2. For any emergency situation, press the emergency button(63) or pull out the safety pulling rope(64), the treadmill will stop immediately .
  • Page 10: Grounding Methods

    GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
  • Page 11: Window Display

    OPERATION GUIDE WINDOW DISPLAY 1.” Time” window: Display running time. Display the exercise time positive direction clock from 0: 00-18 hours and 12mins ,when count to the end, the machine will not stop and count again from 0:00;When count down, it will show from the setting time to 0:00, when down to 0:00 , the machine will stop smoothly and show ‘...
  • Page 12: Button Function

    by mode, this matrix window will show 400m running track. Once you finish running a circle, the machine will remind with sound of BI and show the number of circles you have run. When press the “program” button, the window will display MATRIX of program. Under the count down situation of time、...
  • Page 13: Start-Up Quickly (Manual)

    ”PLAY/ PAUSE” button: Press this button, you can stop or restart the music. 10.Self-lubrication function: In order to maintain the machine better, this machine is designed with self-lubrication system, which will make machine lubricate the running belt automatically with oil storage. Usually speaking, this machine will lubricate automatically for every 20 kilometer with volume of 2-3ml.
  • Page 14: Manual Mode

    THE OPERATION OF EXERCISE PROCESS: 1. Press speed-down will reduce the running speed. 2. Press speed-up will increase the running speed. 3. Press incline down will reduce the incline section. 4. Press incline up will increase the incline section. 5. Press speed shortcut button will adjust speed correspondingly. 6.
  • Page 15: Program Exercise Chart

    PROGRAM EXERCISE CHART Each program will divide into 10 grades for the exercise time and each time section has the speed and incline accordingly. TIME INTERVAL=SETTING TIME/10 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 16: Self-Define Program

    INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SELF-DEFINE PROGRAM Besides 24 inner installed programs, there are 3 user self-define programs: U1, U2, U3 1. User self-define program setting: In the initial situation, press “ program” continuously till U1,U2,U3, and the “ time ” window glitter, show the time 15:00, press “...
  • Page 17: Safety Lock Function

    Press “SPEED+”、“SPEED -” to set F-1 – F4 ( refer to the following chart), after that, press “ MODE” to set F-5, grasp the hand pulse, the window will display your body quality index after 3 seconds. The body quality index is to test the relation between height and weight. The body FAT suits for any male and female, to adjust the weight according it together with other body quality index.
  • Page 18: Exercise Instructions

    EXERCISE INSTRUCTIONS WARM UP STAGE If you are over 35 years old, or not very healthy, also it’s your first time exercise, please consult with your doctor or professional person. Before you use the motorized treadmill, please learn how to control the machine, know well how to start, stop, adjust the speed and so on, don’t stand on the machine at this time.
  • Page 19: Maintenance Instructions

    Consult with your physician or health professional before starting your workout. The professional people can help you make up the suitable exercise time-chart according to your age and health condition; determine the velocity of movement, the intensity of exercise. Please stop at once, If you feel chest tightness, chest pain, irregular heart beat, breath difficulty, dizziness or other discomfort during exercise.
  • Page 20 WALKING BELT CENTERING AND TENSION ADJUSTMENT DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive roller wear. TO CENTER WALKING BELT: ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ●...
  • Page 21: Exploded Drawing

    EXPLODED DRAWING...
  • Page 22: Parts List

    PARTS LIST PART PART Description Description Right handle bar Main Frame Handle bar decoration Incline Bracket strip Wheel bushing Console Bracket AC single wire Left upright tube Brown AC single wire Right upright tube Blue Magnetic ring Front roller Magnetic core Rear roller T shape Allen Wrench Motor belt...
  • Page 23 Bolt M8*12 Wheel Ball bearing with Bolt M6*12 prismatic base Screw PCB board ST4.2*12 Top signal wire Screw ST4.2*13 Middle signal wire Screw ST4.2*20 Bottom signal wire Screw ST4.2*8 Console top cover (φ11*φ Extra large washer C 34*3.0) Console bottom cover Flat washer C Console middle top Flat washer C...
  • Page 24: Troubleshooting

    TROUBLE SHOOTING There are some indication lights on the right of on/off button, if there is something wrong with machine, the light will indicate the problem, you can check as below: 1.Signal transfer problem: The signal light will be on, please check by following steps: A- Please check the connection of top and middle and lower sign wires are well connected.
  • Page 25 / domestic, non-commercial / non-fee paying environment. FreeForm F1000 and F2000 treadmills are graded for commercial usage with one of the best warranties in the industry for this coverage. This warranty is valid for the original owner of the equipment and is not transferable.
  • Page 26 This warranty adheres to all Australian Consumer Rights applicable to this product. We at FreeForm take pride in our after sales service. If you have any queries or concerns regarding your FreeForm purchase simply contact our friendly customer service team.
