F20 Treadmill
Special tips:
1.
Please read this operation manual carefully before installation and operation.
2.
Save this manual for future reference.
3.
Product may vary slightly from the item pictured due to model upgrades.
Operating Instructions Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freeform F20

Summary of Contents for Freeform F20

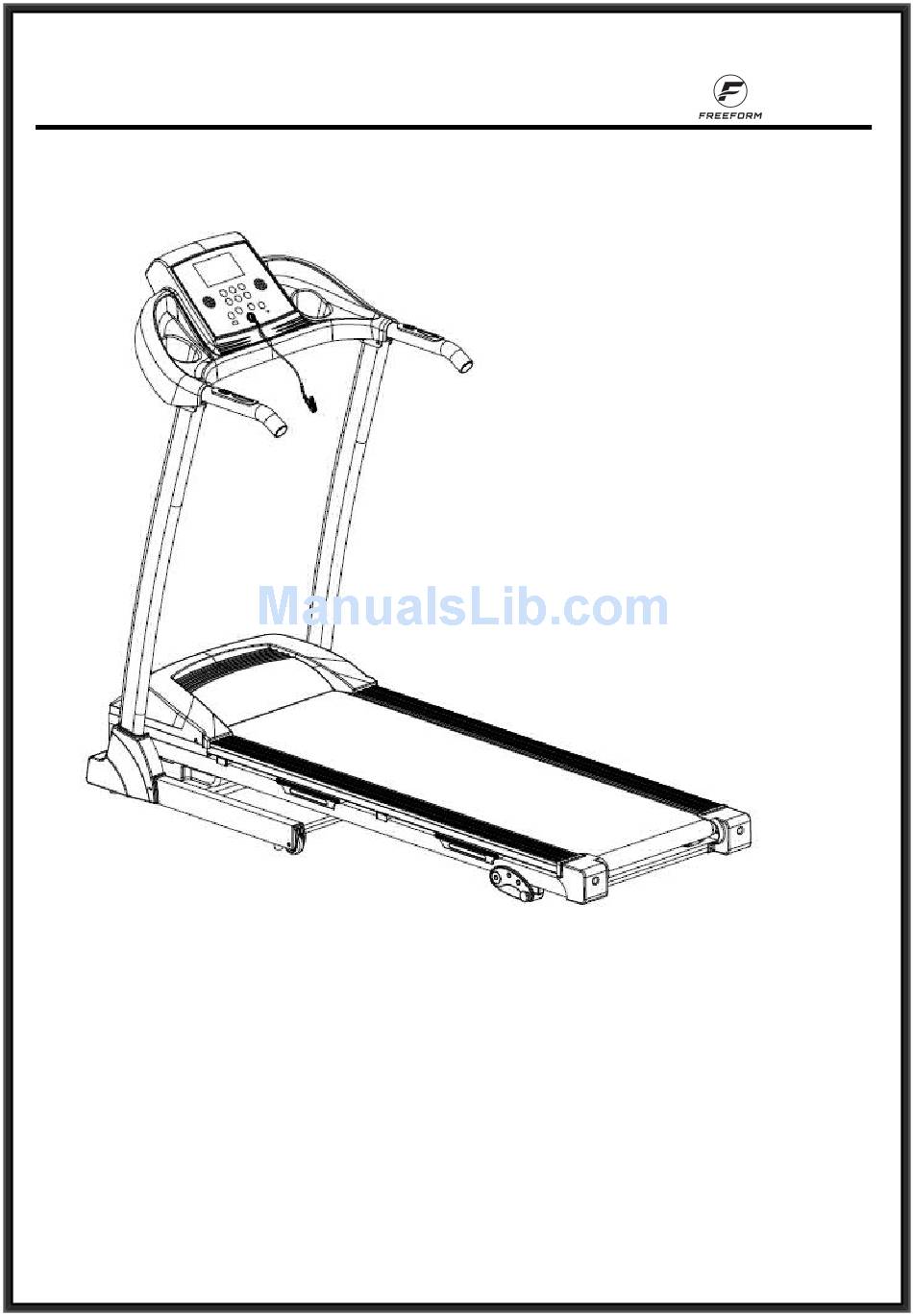

  • Page 1 F20 Treadmill Operating Instructions Manual Special tips: Please read this operation manual carefully before installation and operation. Save this manual for future reference. Product may vary slightly from the item pictured due to model upgrades.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. Danger To reduce the risk of electric shock disconnect your treadmill from the electrical outlet –...

  • Page 3: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.

  • Page 4: Parts List

    Warning: Now here we suggest that you should consult with your physician or health professional before starting your workout, especially for ages above 35 or people with existing health problems. We take no responsible for any accidents or injuries if you don’t following our specification. Treadmill will be carefully assembled and covered the motor shield, then connect to the power.
  • Page 5 Notice: Do not connect power before assembly completion Step 1: Open the carton, take out the above spare parts and put the main frame on the level ground. Step 2: Lift up the console A and upright tube B with the arrow direction. Notice: When you lift up A and B, make sure do not press the wires inside the upright tubes;...
  • Page 6 Step 4: Fix the console to the main frame with M8*15 allen (39) and washer (55) by using 5# Allen wrench(12). Step 5 ： Fix the Left & Right upright tube cover to the base frame. Step 6 ： Put the safety key B to the console A magnet area.

  • Page 7: Folding Instructions

    FOLDING INSTRUCTIONS Pulling Up: Put your hand on A position then lift up the base frame till hearing the sound that the air pressure bar B is locked into the tube. Pulling Down: Support place A with one hand, then kick the air pressure bar at the position B, press the base frame, then it will fall down...

  • Page 8: Grounding Methods

    GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 9: Window Display

    OPERATION GUIDE WINDOW DISPLAY 1.“ speed “ window: Display the speed, the speed range is 0.8--12km/h or 0.8--6km/h, 1 grid means 1 km/h.When setting programes, show PI-P9, when setting mode, show H1-H3. 2. ” time” window: Display running time. Display the exercise time positive direction clock from 0 ： 00- 99 ：...

  • Page 10: Start-Up Quickly(Manual)

    is calories counting down mode). When setting each mode, you can press speed +/- to set the data, press “ START” to start the machine 3. “ START ” button: When getting through the power and safety key attached, press this button at any time to start the machine.

  • Page 11: Inner Install Program

    INNER INSTALL PROGRAM Press “PROGRAM” button SPEED window will display P1-P9 to choose the program you like. Setting of running time, then the TIME window display glittering. Display the advance setting time10:00, press “SPEED+”, “SPEED-” to set up the exercise time what you need. Press “START” button to start the inner install program, the inner install program is divided into 10 sect.

  • Page 12: Range Of Program

    RANGE OF PROGRAM Initial Initial Data Set Range Display Range 0:00 － 99:59 TIME(MIN:SECOND) 0:00 10:00 5:00-99:00 SPEED(K/h) 0.8-12(0.8-6) 0.8-12(0.8-6) 0.00 － 99.9 DISTANCE(KM) 0.00 1.00 0.50-99.9 PULSE(hypo/min) 50-200 0 － 999 CALORIE(THERM) 10-999 BODY TESTER: At the beginning state, press “ PROGRAM” continuely entering FAT body fat tester, press “ MODE “ enter F-1 、...

  • Page 13: Exercise Instructions

    TURN OFF: Turn off the power: You can turn off the power to stop the treadmill, it won’t be damaged at any time. CAUTION: 1. We recommend that you maintain a slow speed at the beginning of a session and hold on to the handrails until you become comfortable and familiar with the treadmill.
  • Page 14 RUNNING BELTS AND TREADMILL LUBRICANT We have put the lubricant on the running board and running belt. The friction between the running belts and running board affects a lot to the life and function of the treadmill, therefore, we suggest checking the board regularly. Should there be any wear on the board, please contact our service center.
  • Page 15 CENTER THE RUNNING BELT: 1.Put the treadmill on a flat ground and have the treadmill run at 3.73-5mph to check if it drifts 2.If it drifts to the right side, turn adjusting bolts on right side 1/4 circle clockwisely, check if it drifts. Repeat the steps above until it centers, see picture A.

  • Page 16: Exploded Drawing

    EXPLODED DRAWING...
  • Page 17 PARTS LIST Base Frame Allen M8*40 Main Frame Allen M8*40 Computer Bracket Allen M8*45 Left Upright Allen M10*30 Right Upright Allen M6*55 Motor Bracket Allen M6*45 Fixing pin Allen M6*35 Turnning Bushing Bolt ST4.2*20 Front Roller Bolt M5*8 Rear Roller Rubber cushion S=13 、...

  • Page 18: Troubleshooting

    TROUBLE SHOOTING 1 、 Probable reason for computer not workable after power start: The wire from computer to bottom control board didn’t connected well or the transformer was burnt out. Check the each wire from computer to control board, make sure they are connected well. If the wire is destroyed , change it. If the above can not settle the problem, try to change a good transformer.
