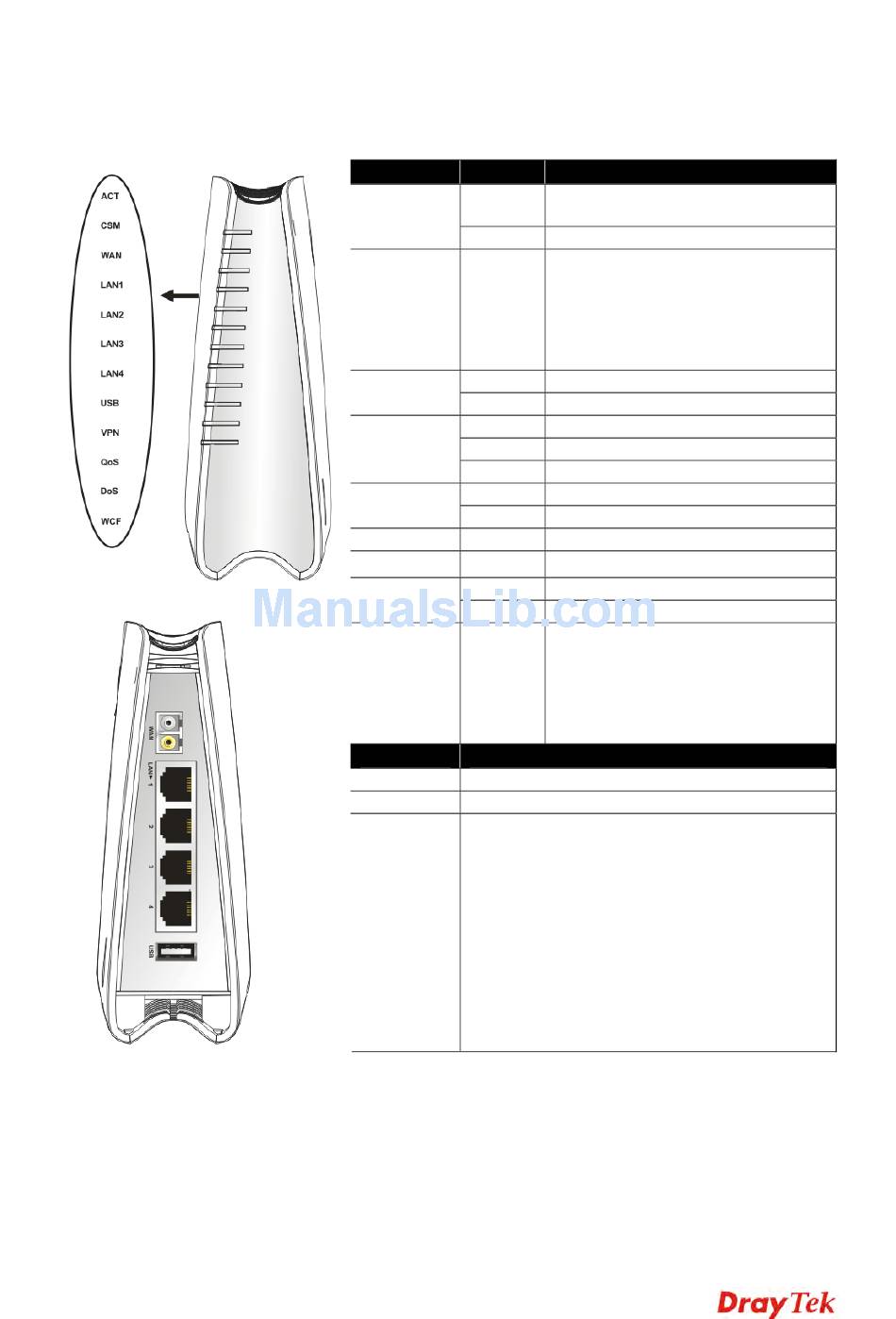

Panel Explanation; For Vigor2110F - Draytek Vigor 2110f Series Quick Start Manual

1 . 1 P a n e l E x p
1 . 1 P a n e l E x p
1 . 1 . 1 F o r V i g o
1 . 1 . 1 F o r V i g o
Vigor2110F Series Quick Start Guide
l a n a t i o n
l a n a t i o n
r 2 1 1 0 F
r 2 1 1 0 F
LED
ACT
(Activity)
CSM
WAN
LAN 1/2/3/4
USB
VPN
QoS
DoS
WCF
Interface
WAN
LAN (1-4)
USB
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On The profile(s) of CSM (Content
Security Management) for IM/P2P,
URL/Web Content Filter application
can be enabled from Firewall
>>General Setup. (Such profile must
be established under CSM menu).
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The profile(s) of CSM (Content
Security Management) for Web
Content Filter application can be
enabled from Firewall >>General
Setup. (Such profile must be
established under CSM menu)
Description
Connector for accessing the Internet.
Connectors for local networked devices.
Connector for USB storage device (Pen
Driver/Mobile HD) or printer.
2
