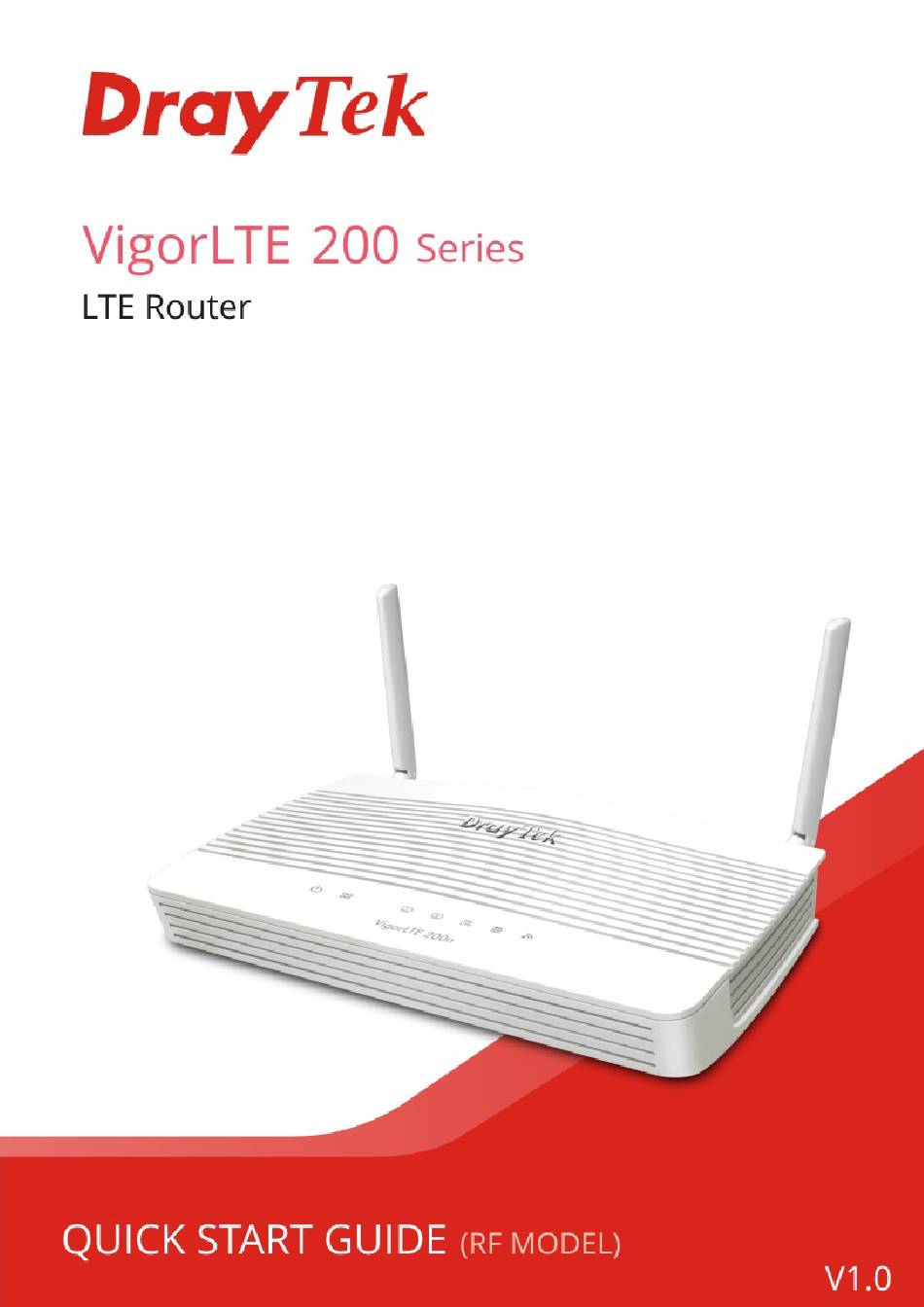

  • Page 2 VigorLTE 200 Series LTE Router Quick Start Guide (For RF Model) Version: 1.0 Firmware Version: V3.8.11 (For future update, please visit DrayTek web site) Date: May 2, 2019...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
  • Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type VigorLTE 200 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://www.draytek.com.tw/ftp/VigorLTE 200/Document/CE/ Manufacturer: DrayTek Corp.
  • Page 5 Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna/transmitter should be kept at least 20 cm away from human body. More update, please visit www.draytek.com.

  • Page 6: Table Of Contents

    1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 4. Hardware Installation ................... 5 4.1 Network Connection ........................5 4.2 Wall-Mounted Installation ......................6 5. Software Configuration ..................7 5.1 Quick Start Wizard for Network Connection................7 6.

  • Page 7: Introduction

    VigorLTE 200 series is a router equipped with an LTE module which allows you to access the Internet via a SIM card. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the performance of VPN greatly and offers several protocols (such as IPSec/PPTP/L2TP).

  • Page 8: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router LTE Antenna Quick Start Guide RJ-45 Cable (Ethernet) The type of the power adapter depends on the country that the router will be installed.

  • Page 9: Panel Explanation

    Status Explanation The router is powered off. Blinking The router is powered on and running normally. The router is ready to access Internet. The router is not ready to access Internet. Blinking Slowly: The network connection is ready. Quickly: The network connection is establishing.
  • Page 10 VigorLTE 200, VigorLTE 200n, Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button.

  • Page 11: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Install the SIM card into the card slot. The back plate of the SIM card slot must be removed first and the direction of card notch must be on the left side.

  • Page 12: Wall-Mounted Installation

    Vigor router has keyhole type mounting slots on the underside. A template is provided on the Vigor router packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction.

  • Page 13: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web User Interface.
  • Page 14 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. If your router can be under an environment with high speed NAT, the configuration provide here can help you to deploy and use the router quickly. The first screen of Quick Start Wizard is entering login password.
  • Page 15 On the next page, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if USB interface is used, please choose LTE. Then click Next for next step. WAN1 and LTE will bring up different configuration page.

  • Page 16: Customer Service

    Web registration is preferred. You can register your Vigor router via http://www.draytek.com. & & Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com...

This manual is also suitable for:

Vigorlte 200Vigorlte 200n
