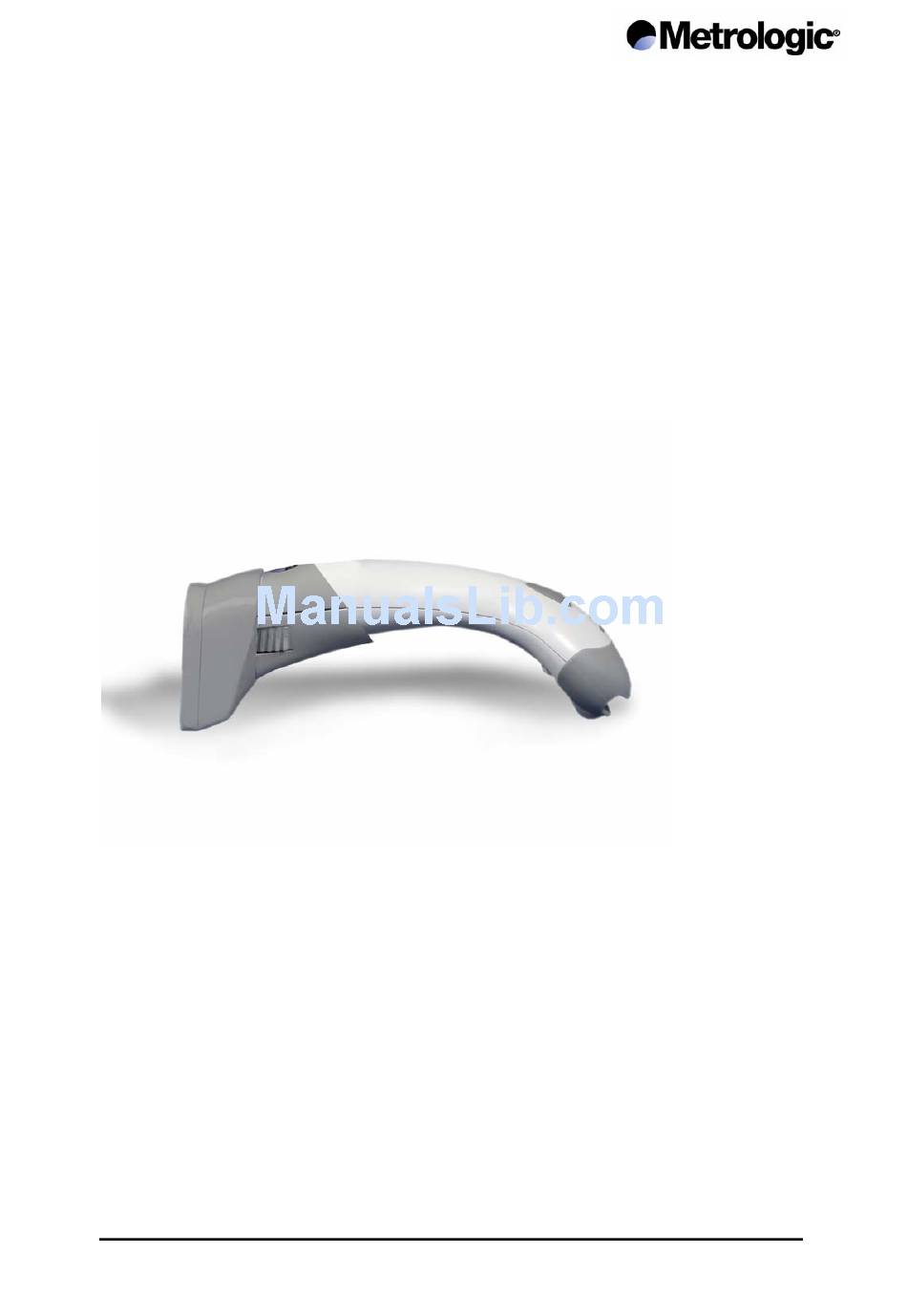

- Page 1 MS9530 Series Voyager® RF Single Line Hand-Held RF Bar Code Scanner Installation and User’s Guide PRELIMINARY MS9530 Voyager RF Printed: September 2002 Version: 1.1 Status: Approved...
-
Page 2: Table Of Contents
Table of Contents Voyager RF Scanner – Overview ... 3 Base Station... 4 Unpacking List... 5 Connecting the Base Station to the host ... 6 Linking the Voyager RF to the Base Station ... 7 Fixing Voyager RF ID numbers ... 9 Base Station Testing Bar Code ... -
Page 3: Voyager Rf Scanner - Overview

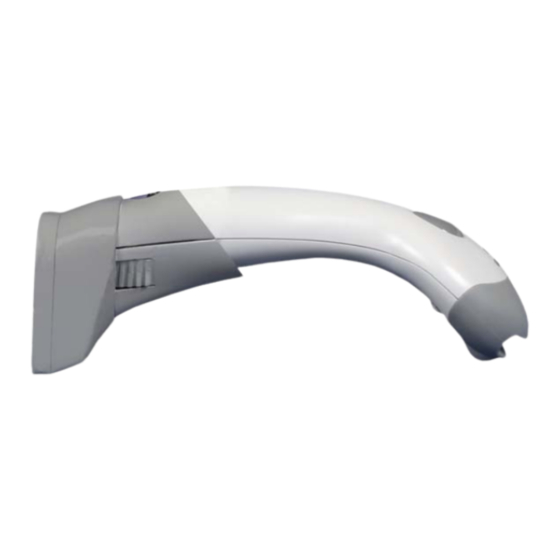

Product Overview The MS9530 Series Voyager RF is a wireless single line hand-held scanner with one bi-directional RF channel radio which provides about 20-30 meters portability. It has got a battery pack which can be removed from the unit to be charged through a Wall-Power supply in about 110 min. -
Page 4: Base Station
BASE STATION The Base Station is a interface decoder to which the Voyager is connected via a virtual RS232 port. Its function is to receive RF data from Voyager RF and transmit it to the Host. Therefore, all the standard features that can be used when connecting a RS232 device to a Base Station, as explained in the Base Station Configuration Guide, can be obtained from the Base Station when working with the Voyager RF. -
Page 5: Unpacking List
UNPACKING LIST The kit is packed according to its functionality: Transmitter: • Voyager RF: Reader + Battery Pack • Wall-Power Supply for Battery Pack charging • Voyager RF Configuration Manual • Voyager RF installation and User guide Base Station: • Base Station •... -
Page 6: Connecting The Base Station To The Host
CONNECTING THE BASE STATION TO THE HOST WEDGE INTERFACE 1. Turn off the Host system 2. Connect the cable Y-XX between the keyboard and Host When Power supply required (it is recommended all the times for better RF transmissions), check that the voltage matches the AC outlet and then connect Power up the Host system RS232 INTERFACE... -
Page 7: Linking The Voyager Rf To The Base Station
• If no Link is performed, an error beep will sound. In this case press Code Gate button to continue. Otherwise, if link is performed the scanner will operate normally. • Read Enter/Exit Configuration Mode barcode • Read the Recall Defaults barcode (MetroSelect Single Line Voyager Configuration guide) to default Voyager parameters. - Page 8 Custom Defaults, Scanner Operation-Led Options, Scanner Operation- Host Scanner Commands, Scanner Operation-Test Modes, MS 9500 Voyager-Activation Range, MS 9500 Voyager-CodeGate Status Failure to observe the above will result in the scanner operating with reduced functionality. NOTE ABOUT RF DEFAULTS: This barcode will default the RF parameters of Scanner: •...
-
Page 9: Fixing Voyager Rf Id Numbers
FIXING VOYAGER RF ID NUMBERS This section explains how to fix an Identifier number to each Voyager RF. Basically, each Base Station can work with up to 5 VoyagerRF’s at the same time. To enable this facility, an Identifier Number (ID) must be configured to each Voyager RF. - Page 10 The system is ready to work. Please note again, that each time a Voyager RF is activated, it indicates its ID number just before linking with Base Station with steady RED and GREEN LED’s whilst the YELLOW LED flashes an appropriate number of times in relation to its ID number.
-
Page 11: Base Station Testing Barcode
BASE STATION TESTING BARCODE The Base Station will accept all data from Voyager RF where the Base Serial Number is “0000000000”. Use this Test Barcode as Base Serial Number when programming the Voyager RF Serial Number to fix the Voyager RF in test Mode. This Barcode is for testing purposes and should NEVER can be considered as functional Base Station Serial Number. -
Page 12: Battery Pack
5 hours. Taking into account that that the scanner will go into standby mode while not in use for an average of 2.5 minutes, you can expect that in normal use the unit can be used for in excess of 8 hours per day with one battery pack. - Page 13 To avoid having low battery messages appearing, it is recommended that the battery pack is disconnected from the scanner when not in use over an extended period of time. MS9530 Voyager RF Printed: September 2002 Version: 1.1...
-
Page 14: Visual Indicators
RED and GREEN will be on and YELLOW will flash continuously. 2. The scanner will check Flash integrity. If there is an error, RED and GREEN will be on and YELLOW will flash once. After this the unit will enter into user RF Flash mode (Same as when METEOR RF Barcode is read. -
Page 15: Low Battery Message
Low Battery Message When the battery starts to loose its charge, the scanner detects it and makes a Razzberry sound every time a new reading is performed. The YELLOW, RED and GREEN LED’s will also flash alternatively. However, the Voyager RF will continue to operate. -
Page 16: Programming Modes
Guide. Meanwhile, the MetroSelect Single Line Configuration Guide is used to control scanner and reading parameters, the Base Station Configuration Guide is mostly used to control data transmission to Host. PC Windows Based programs are provided to configure both Base Station and Voyager RF units: MetroSelect2 (RF version) to configure Voyager RF via RF (not yet available). -
Page 17: Metroset
MetroSet It is possible to download/upload settings from MetroSet 2 (PC based software) to each Voyager RF by radio. In order to do that, read the MetroSet RF barcode with the Voyager RF that you want to work with and follow MetroSet RF instructions. Always read this barcode before running the MetroSet RF upload/download commands. -
Page 18: Software Version
SOFTWARE VERSION It is possible to find out the software of Voyager RF as well as the Base Station to which the unit is linked with. Scanning the following barcode, the Base Station will transmit the actual software revision with the following format: MI9530 BASE STATION: #50200, MARCH 2002.| MS9530: BODY/OS #14655/50100 MS9530 Voyager RF... -
Page 19: Eml
EML Handshake is a defined data formatting handshake that allows the Voyager RF to send and receive data from the Host System through the Base Station. To be able to use this feature, the Base Station: • Must be connected via RS232 to the Host System using the M-01 cable •... -
Page 20: Specifications
SPECIFICATIONS RF LINK SPECIFICATIONS Frequencies: Bandwidth: Modulation: RF Protocol: Output Power Voyager RF: Output Power Base Station: Operating Range: Specifications subject to change without notice ELECTRICAL VOYAGER RF Input Voltage: Battery Operating Life: Battery Idle Time: Operating current: DC Transformer: Laser Class: BASE STATION Input Voltage:...
