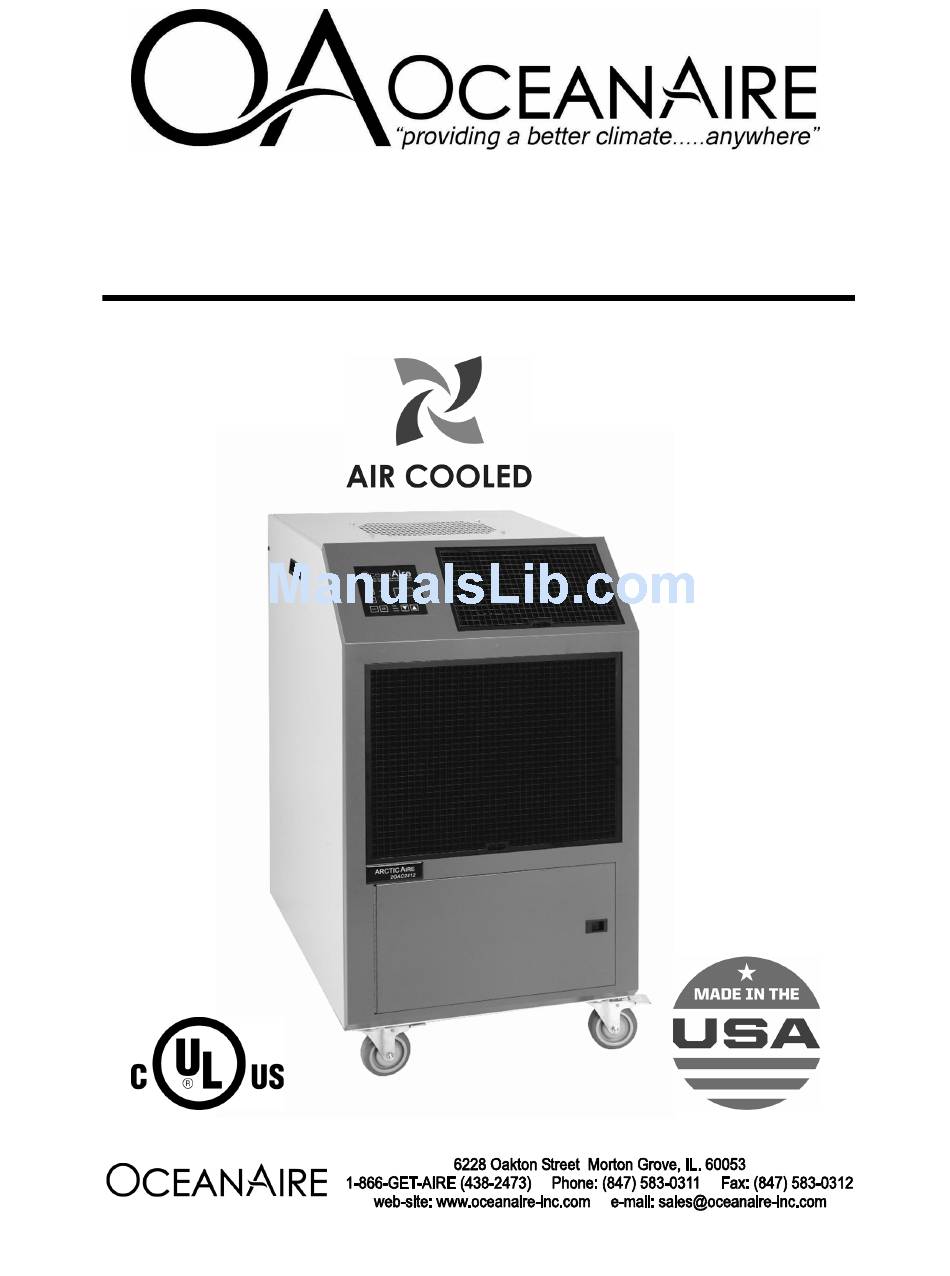

- Page 1 2OAC series Deluxe Portable Air-Cooled Spot Cooler ENGINEERING, INSTALLATION AND SERVICE MANUAL Form EISM-2OAC, 110114 Rev 1...
-
Page 2: Table Of Contents
TABLE OF CONENTS PAGE GENERAL DESCRIPTION …......... PRODUCT DATA AND SPECIFICATIONS.... UNIT DESCRIPTION Standard Features........Applications / Operation......Electrical..........Use of Extension Cords......Three Phase Monitor....... Condensate..........Accessories………........9 - 15 Installation..........Electronic Controller......... 17-19 SERVICE Replacement Parts Procedure....Troubleshooting Guide......Preventive Maintenance...... -
Page 3: General Description

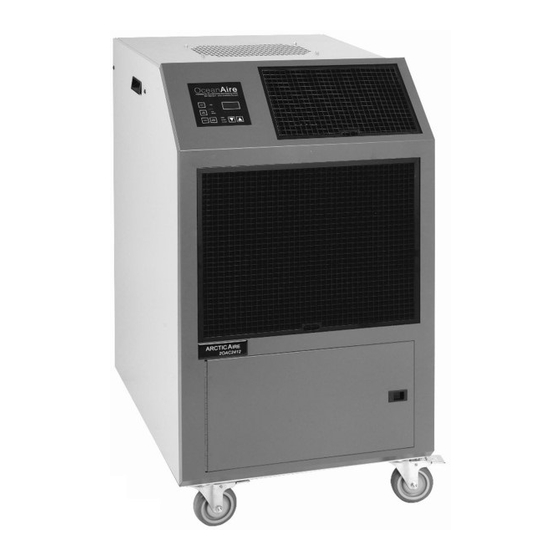

GENERAL DESCRIPTION The Oceanaire 2OAC is a portable air-cooled spot cooler designed for permanent or temporary spot cooling or heating applications. The entire air conditioning unit has been built in an premium sheet metal cabinet, equipped with heavy-duty casters for mobility. All 2OAC models come with a 10-foot power cord for electrical connec- tion and added mobility in service. -
Page 4: Product Data And Specifications
2OAC SPECIFICATIONS... -
Page 5: Standard Features
STANDARD FEATURES CABINET The 2OAC Series spot cooler has a cabinet that is constructed of 18 gauge steel with a polyester powder coated finish that will compliment any decor. The cool blue front com- pliments any surrounding space, and is insulated with sound-absorbing insulation for cool, quiet comfort. -
Page 6: Applications / Operation
APPLICATIONS COOLING MODE—SPOT COOLER The 2OAC can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning where cooling the entire space is impractical. Cool air is discharged from the unit and is directed where it is needed. -
Page 7: Electrical
SERVICE CORD All 2OAC-Series units are equipped with the standard ten foot long service cord with plug configurations and receptacle requirements as shown in this chart. 2OAC1211, 2OAC1811, 2OAC2412 and 2OAC3612 units come with LCDI (Leakage Current Detection & Interruption) devices that serve as a means of electrical protection. -
Page 8: Use Of Extension Cords
USE OF EXTENSION CORDS CAUTION: FOR MODEL 2OAC1211 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACH- MENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODEL 2OAC1811 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 20 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACH- MENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODEL 2OAC2412 AN EXTENSION CORD CAN BE USED PROVIDED IT IS... -
Page 10: Condensate
CONDENSATE RESERVOIR TANK For 2OAC Models 2OAC12, 2OAC18, 2OAC24 and 2OAC36, a 5-gallon polyethylene tank is provided to collect condensate. The tank is located in the lower, front section of the unit. A high water level cut-out switch is used to stop the compressor and condenser fan automatically when the tank's pre-set water level has been reached. -
Page 11: Accessories
ACCESSORIES CK-12 CK-16 CK-12PL CK-16 2DDA-6 2DDA-10 2DDA-16 2NK-1 2NK-2 2NK-3 DEP-10 2DCP-1 2DEP-12 2DCP-2 DEP-16 DCP-5 2OAC UNIT... - Page 12 2OACH – 2OAC ACCESSORIES NOZZLE KIT 2NK-1 (2 X 4-Inch) 2OAC12 2NK-2 (2 X 6-Inch) 2OAC18, 24 2NK-3 (2 X 8-Inch) 2OAC36, 60 EVAPORATOR RETURN AIR PLENUM DEP-10 (10-Inch Round) 2OAC12 2DEP-12 (12-Inch Round) 2OAC18, 24 DEP-16 (16-Inch Round) 2OAC36, 60 DISCHARGE DUCT ADAPTER 2DDA-6 (6-Inch Round)
- Page 13 ACCESSORIES 2 x 2 CEILING DUCT-PANEL CEILING PANEL DUCT KIT, CK-12, CK-16 A ceiling panel kit is available for discharging the VINYL COATED condenser air above a drop ceiling.. The ceiling FABRIC DUCT panel duct kits are furnished with a white vinyl coated flexible duct that allows for convenient installation.
- Page 14 ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY (2NK) The optional discharge nozzle kits are used to direct the condi- tioned air to a specific target area. By concentrating the airflow, the nozzles increase the air velocity towards production lines to cool personnel or equipment. In server rooms, the nozzles can be used to induce airflow through the rack to remove the hot air from the area of the equipment.
- Page 15 ACCESSORIES CONDENSER RETURN AIR PLENUM, 2DCP Condenser return air plenums are available for installations where it is required to duct air to the inlet of the condenser. The plenum easily attaches with one screw to the back of the unit, and is provided with flange(s) for connecting 12-inch flexible ducting. A conden- ser return air plenums can substantially reduce air noise and allows the unit to operate without drawing condenser air from the conditioned space.
- Page 16 ACCESSORIES EVAPORATOR RETURN AIR PLENUM, 2DEP Evaporator return air plenums are available for installations where it is required to duct air to the inlet of the evaporator. The evaporator return air plenums allow the user to connect round duct (flexible or rigid) to the return air intake to reduce air noise and increase the number of options for solving difficult cooling problems.
-
Page 17: Accessories
ACCESSORIES Discharge Duct Adapter, 2DDA Discharge duct adapters are available for applications where ducted evaporator discharge is required. The adapters can be easily installed on the unit without fasteners, and be installed for either vertical or horizontal ducting. The standard discharge grille is removed and the 2DDA is attached in the grill opening. -
Page 18: Installation
INSTALLATION INSTRUCTIONS RECEIVING—INSPECTION: Upon receiving your 2OAC unit, inspect the packaging for any damage. All units are shipped on a skid, and packaged in a triple-wall carton for added protection. In shipment, some wear may occur on the packaging. If the packaging is heavily damaged or broken, file a claim with the freight company immediately. - Page 19 Deluxe Electronic Controller The 2OAC controller is equipped with many features for a more pre- cise level of cooling and operation. Additionally, the controller can be removed from the unit and installed for remote operation, if desired— accessory parts may be required. OCEANAIRE DELUXE ELECTRONIC CONTROLLER When power is connected, the controller will display “888”...
- Page 20 FAN SPEED—The operator can select between AUTO and MANUAL fan speed control. Pressing the FAN SPEED button, will switch speed from AUTO to MANUAL. In MANUAL mode, pressing the FAN SPEED button will change fan speed from low to high. In AUTO the fan speed is controlled automatically.
- Page 21 2OAC PROGRAM PARAMETERS MODEL CODE SETTINGS 2OAC12 P1 = 85, P2 = 35 2OAC18 P1 = 80, P2 = 50 2OAC24 P1 = 70, P2 = 50 2OAC36 P1 = 85, P2 = 40 2OAC60 P1 = 85, P2 = 45 NOTICE Program Parameters are NOT controller default values.
-
Page 22: Electronic Controller
REPLACEMENT PROCEDURE FOR PARTS IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A LICENSED TECHNICIAN WARNING—TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING A. FAN MOTORS 1. Remove cabinet's left-side panel (when looking at the front of the unit). 2. -
Page 23: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI (on models with LCDI), and reset LCDI. -
Page 24: Preventive Maintenance
PREVENTIVE MAINTENANCE 2OAC Spot Coolers are designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: BLOWER MOTORS The motors on all units have permanently lubricated bearings. No oiling is necessary FILTERS A clogged filter will cause the unit to operate at greatly reduced... -
Page 25: Interior View
2OAC12 INTERIOR VIEW... -
Page 34: Warranty Statement
MANUFACTURER’S LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer the Product is shown to have a defect in material or workmanship, during the warranty period, the manufacturer will repair or replace, at its option, that part of the Product which is shown to be defective. - Page 35 USEFUL INFORMATION MODEL: SERIAL NUMBER: DATE PURCHASED: INSTALLED BY: DATE INSTALLED: For Technical Support, or to locate a distributor for service parts, contact Oceanaire at (847) 583-0311 or 1-866-GETAIRE (438-2473). Please indicate the Model Number and Serial Number of the unit to assure proper information and service parts.
- Page 36 Form EISM-2OAC, 110114 Rev 1...
