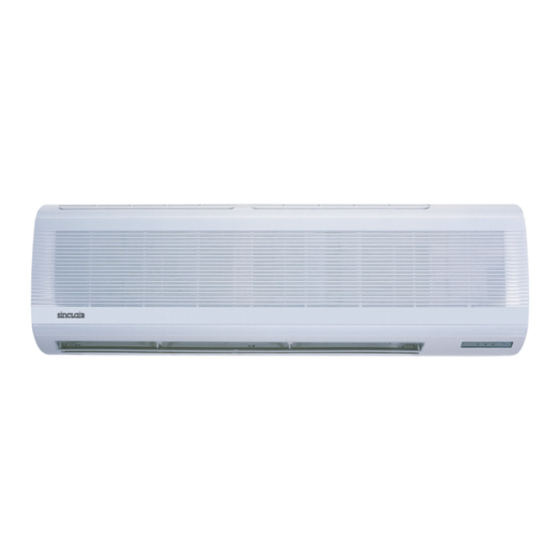

USER'S MANUAL
TITAN SERIES
ASH-28AT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASH-28AT and is the answer not in the manual?

Questions and answers

Related Manuals for Sinclair ASH-28AT

Summary of Contents for Sinclair ASH-28AT

  • Page 1 USER'S MANUAL TITAN SERIES ASH-28AT...

  • Page 3: Table Of Contents

    Functions and Working temperature range CONTENTS Operation mechanism Technical specifications Important notices Structure description Name and Function-Remote control Please read this Name and Function-Remote control(Remove the cover) OWNERS MANUAL carefully prior to COOL mode operation procedure HEAT mode operation procedure DRY mode operation procedure SLEEP mode operation procedure AUTO mode operation procedure...
  • Page 4 For to prevent flicker impressions during the start of the compressor (technical process)following installation conditions do apply. 1 ASH-28AT will be connected only to a supply with the relevant system impedance no more than Zmax=0.267 Ω 2 The power connection for the air conditioner has to be done at the main power distribution. This distribution has to be of an low impedance.

  • Page 5: Functions And Working Temperature Range

    Functions Dehumidifying in rainy or humid season Cooling in summer In hot summer,air conditioner can cool room air by Without reducing room temp.,air conditioner can dehumidify and make room air dry and comfortable. transfering heat out. Heating in winter (heat pump type) Operating automatically According to room temp.

  • Page 6: Operation Mechanism

    Operation mechanism Cooling cycle Connected with pipes,indoor unit and outdoor unit form a refrigeration system.With power,compressor takes in low temp.and low pressure refrigerant vapour from evaporator of indoor unit,presses it into high temp.and high pressure gas,then discharges it into condenser of outdoor unit.By help of axialflow fan,heat is removed to outdoor air from the gas which then condenses into liquid.After capillary tube throtting,the liquid drops temp.and pressure, flows into evaporator.There,by help of cross-flow fan,the liquid absorbs heat from room air,evaporates and becomes low pressure vapour which then flows into compressor again,beginning next cooling cycle.Therefore,...
  • Page 7 (1) Schematic diagram of cool only type 1.Compressor 2.Outdoor heat-exchanger 3.Filter 4.Capillary tube 5.Stop valve 6.Connecting pipes 7.Indoor heat-exchanger 8.Accumulator (2) Schematic diagram of heat pump type 1.Compressor 2. 4-way electromagnetic valve 3.Outdoor heat-exchanger 4.Filter 5.Master capillary tube 6.Check valve 7.Auxiliary capillary tube 8.Stop valve 9.Connecting pipes...

  • Page 8: Technical Specification

    Technical specification Model ASH-28AT Funcitions Cool/Heat Cooling capacity(W) 8000 Heating capacity(W) 8800 Power supply 230V~50Hz Rated input Cooling(W) 4000 Heating(W) 3600 Input power Cooling(W) 2800 Heating(W) 2800 Refrigerant R410A 2600g Noise dB(A) Indoor Outdoor Climate type Moisture protection IP24 Isolation...

  • Page 9: Important Notices

    Important notices Air Conditioner should be Do not cut or pull strongly power 230V operated with stable voltage lines and connecting lines. in range of 198-253V 1Ph, otherwise, compressor would vibrate terribly to d a m a g e r e f r i g e r a t i o n system.

  • Page 10: Structure Description

    Str uctur e descr iption Air in ⑴ ⑵ ⑶ ⑺ ⑷ ⑹ ⑸ Air out ⑴ ⑴Handling switch AUTO ⑵Wiring cover ⑾ TEST ⑶　 S urface panel ⑷Filter STOP ⑸Deflector ⑻ ⑹ ⑹Singal window ⑺Front panel ⑻Piping and wiring HEAT ⑼Drain hose COOL...

  • Page 11: Name And Function-Remote Control

    Remote control operation procedure Name and Function-Remote control Note: Be sure that there are no obstructions. The remote control signal can be received at a distance of up to about 10m. Don’t drop or throw the remote control. Don’t place the remote control in a location exposed to direct sunlight. SWING button When it is pressed, the louvers...

  • Page 12: Name And Function-Remote Control(Remove The Cover)

    Name and Function-Remote control. (Remove the cover) Note: This type of remote controller is a kind of new current controller. some buttons of the controller which are not available to this Air condi- tioner will not be described below. Liquid crystal displayer. It shows all set contents.

  • Page 13: Cool Mode Operation Procedure

    COOL mode operation procedure According to difference between room temp. and set temp., microcomputer can control cooling on or not. If room temp. is higher than set temp., compressor runs at COOL mode. If room temp. is lower than set temp., compressor stops and only indoor fan motor runs. SET TEMP.

  • Page 14: Heat Mode Operation Procedure

    HEAT mode operation procedure If room temp. is lower than set temp., compressor runs at HEAT mode; If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan motor runs. SET TEMP. should be in range of 16 to 30 3.Press SWING button, the louvers start to rotate...

  • Page 15: Dry Mode Operation Procedure

    DRY mode operation procedure If room temp. is lower than set temp., compressor , outdoor and indoor fan motor stop. If room temp. is between of set temp., Air conditioner is drying. If room temp. is higher than set temp., it’s at COOL mode. SET TEMP.

  • Page 16: Sleep Mode Operation Procedure

    SLEEP mode operation procedure When the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1 in 1 hour and 2 in 2 hours. Indoor fan motor runs at low speed. When the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1 in 1 hour and in 2 hours.

  • Page 17: Auto Mode Operation Procedure

    AUTO mode operation procedure At AUTO mode operation, standard SET TEMP. is 25 for COOL mode and 20 for HEAT mode. 1.Plug in, Press ON/OFF button, then air conditioner is turned on. 2.According to room temp., micro- computer can automatically set operation mode,so as for best effect.

  • Page 18: Timer Mode Operation Procedure

    TIMER mode operation procedure At stopping,press TIMER ON button, set ON TIME in range of 0 to 24 hour to start the unit automatically. At operating, press TIMER OFF button.set OFF TIME in range of 0 to 24 hour to stop the unit automatically.

  • Page 19: How To Insert Batteries

    How to insert batteries 1.Remove the cover from the back of the remote control. 2.Insert the two batteries ( Two AAA dry - cell batteries ) and press but- ton “ACL”. 3.Re - attach the cover. NOTE: Don’t confuse the new and worn or different batteries.

  • Page 20: Emergency Run Operation Procedure

    Emergency run operation procedure If Wireless remote controller lost,open the surface panel and operate as following: Manual switch (Auto, Test, Run, Stop) a. When turning it to Auto position, unit will run in Auto mode, if there is remote control signal, it will run at the remote control signal.

  • Page 21: Special Performance

    Special performance When power is failed Time delay in heating * All operations stop. * To avoid cold air,indoor fan motor does not start * Press ON/OFF button to restore operations. till compressor works for 30 seconds. * If made mistakes in operation,plug out,then plug in * To keep heating,when room temp.

  • Page 22: Installation Precaution

    Installation precaution Noise Installation position * Drain the condensed water from indoor unit into * Install on place firmly enough to avoid transmitting ground pipe. or increasing noise and vibration. * Do not put objects in front of outdoor unit air outlet, * Install indoor unit far away TV set or radio etc., to to avoid increasing noise.

  • Page 23: Care And Maintenance

    Care and maintenance Cleaning filters Cleaning unit 1.Switch off first before cleaning. Air filters should be cleaned once every two weeks. 1.Open surface panel only after air conditioner stops at Switch off only after ai r c ondi ti oner all.

  • Page 24: When Malfunction Happening

    When malfunction happening Please check the following items before ask for repair,it saves your time and money. Fault phenomenon Trouble shooting * Is power fail? * Is plug out? Air conditioner * Is power fuse or switch off? does not operate * Is voltage higher than 264V or lower than 206V? at all.

  • Page 25: Installation Dimension Diagram

    The installation must be done by trained and qualified service personnel with reliability according to this manual. Contact with service center of SINCLAIR before installation to avoid the malfunction due to unprofessional installation. When picking up and moving the units, you must be guided by trained and qualified personnel.

  • Page 26: Installation Location

    6. Be sure that the installation conforms to the installation dimension diagram. NOTE: Install in the following place may cause malfunction. If it is unavoidable, contact with service center of SINCLAIR please. Place where oil (machine oil ) is used. The place where a lot of salinities such as coast exists.

  • Page 27: Install The Indoor Unit

    Install the indoor unit Install the rear panel 1.Always mount the rear panel horizontally. 2.Fix the rear panel on the selected location with screws supplied with the unit. 3.Be sure that the rear panel has been fixed firmly enough to withstand the weight of an adult of 60kg, furthermore, the weight should be evenly shared by each screw.
  • Page 28 Fig.4 NOTE: All the electrical work must be done by qualified personnel according to relative wiring regulation and this manual. The power supply is type Y connection. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

  • Page 29: Install The Outdoor Unit

    Install the outdoor unit Install the connection pipe 1.Align the center of the piping flare with the relevant valve. 2.Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer to the diagram at right. Note: Exceeding tightening torque will damage the flare surface.

  • Page 30: Connecting The Pipe

    Install the outdoor unit Connecting the pipe 1.Remove the flare nuts from the cut - off valves of the outdoor unit. 2.Align the center of the piping flare with the relevant valve, and screw in the flare nut about 3~4 turns by hand. 3.Tighten the flare nut with spanner and torque wrench.

  • Page 31: Routine Check After Installation

    Routine check after installation Check after installation Items to be checked Possible malfunction Situation Has the air conditioner been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient refrigerating Have you done the refrigerant leakage test? capacity.

  • Page 32: Environmental Information

    ENVIRONMENTAL INFORMATION This unit contains fluorinated gases with greenhouse effect covered by the Kyoto Protocol. Maintenance and disposal must be carried out by qualified persons only. Refrigerant gas R410A, GWP = 1730 EXTRA REFRIGERANT CHARGE Pursuant to Regulation EC 842/2006 on certain fluorinated greenhouse gases, in case of extra refrigerant charge, it is compulsory to: Fill in the label accompanying the unit inserting the factory quantity of refrigerant charge (see the technical label), the extra refrigerant charge and the total charge.
