EB15439
Purchase Date
1
ITEM #0464472
SARATOGA

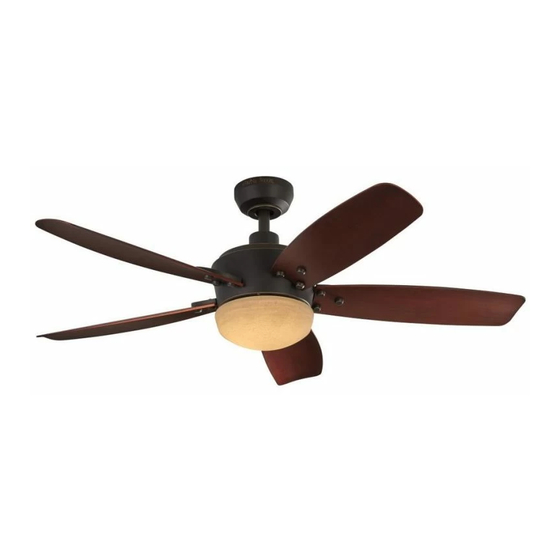

CEILING FAN
MODEL #00798
ETL MODEL #60-STG
Español p. 18
Lowes.com/harborbreeze
Advertisement
Table of Contents
Related Manuals for Harbor Breeze SARATOGA 00798
Summary of Contents for Harbor Breeze SARATOGA 00798
-
Page 1: Ceiling Fan
ITEM #0464472 SARATOGA CEILING FAN MODEL #00798 ETL MODEL #60-STG Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Español p. 18 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m. -
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING • ELECTRIC SHOCK HAZARD - To reduce the risk of electric shock, do not use this fan with any Safety Information....................... 3 solid-state speed control device. • ELECTRIC SHOCK HAZARD - To reduce the risk of electric shock, make sure electricity has Package Contents....................... -
Page 3: Package Contents
PACKAGE CONTENTS HARDWARE CONTENTS (shown actual size) Blade Arm Screw Decorative Screw Qty. 15 Qty. 11 Wire Connector Qty. 4 Blade Screw Qty. 16 PART DESCRIPTION QUANTITY Mounting Bracket Canopy Canopy Cover PREPARATION Yoke Cover Before beginning assembly of product, make sure all parts are present. Compare parts with package 6 in. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 4. Insert downrod (E) through canopy (B), canopy cover (C), 1. Determine mounting method. and yoke cover (D). Thread wires from fan motor A-Downrod Mount (standard or angled ceiling) assembly through downrod (E). B-Angle Mount (standard ceiling only) IMPORTANT: If angle mounting, check to make sure the ceiling angle is not steeper than 20˚. - Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 7. Connect BLACK wire from fan to BLACK wire from 10. Slide canopy cover (C) over two screws and rotate ceiling. Connect WHITE wire from fan to WHITE clockwise until it locks. wire from ceiling. Connect all GROUNDED Supply circuit (GREEN) wires together from fan to GREEN/ Note: Adjust screws as necessary until canopy (B) and...
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 16. Loosen two preassembled screws from fitter plate (I). 13. Loosen two preassembled screws from fan motor Remove and save remaining preassembled screw. assembly (H). Remove and save remaining preassembled screw. Screw screw screw Screw 17. Connect BLUE wire from fan motor assembly (H) to 14.
-
Page 7: Remote Control Transmitter
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS OPERATING INSTRUCTIONS REMOTE CONTROL TRANSMITTER: 19. Install bulbs (L) into sockets. Note: The receiver is already wired and built into the fan housing from the factory. Receiver assembly is not needed. “Tap” refers to pressing a button on the remote for less than one second. “Press and hold” refers to IMPORTANT NOTE: The fan has an energy-saving pressing a button and holding the button down for one second then release the button. -
Page 8: Care And Maintenance
OPERATING INSTRUCTIONS CARE AND MAINTENANCE • To reduce the risk of fire, electric shock or injury to persons, care and maintain this fan. Fan On/Off (See Fig. 2): • Fan On/Off controls power to the fan. • IMPORTANT: Shut off main power supply before beginning any maintenance. •... -
Page 9: Troubleshooting
EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. PART DESCRIPTION PART# Blade Arm 104000-0228UB Blade 108004-005661 Decorative Screw 109000-0563UB Blade Screw 119000-2043BD Remote Pack 990319-011400 Printed in China Harbor Breeze is a registered ® trademark of LF, LLC. All rights reserved. Lowes.com/harborbreeze Lowes.com/harborbreeze...
