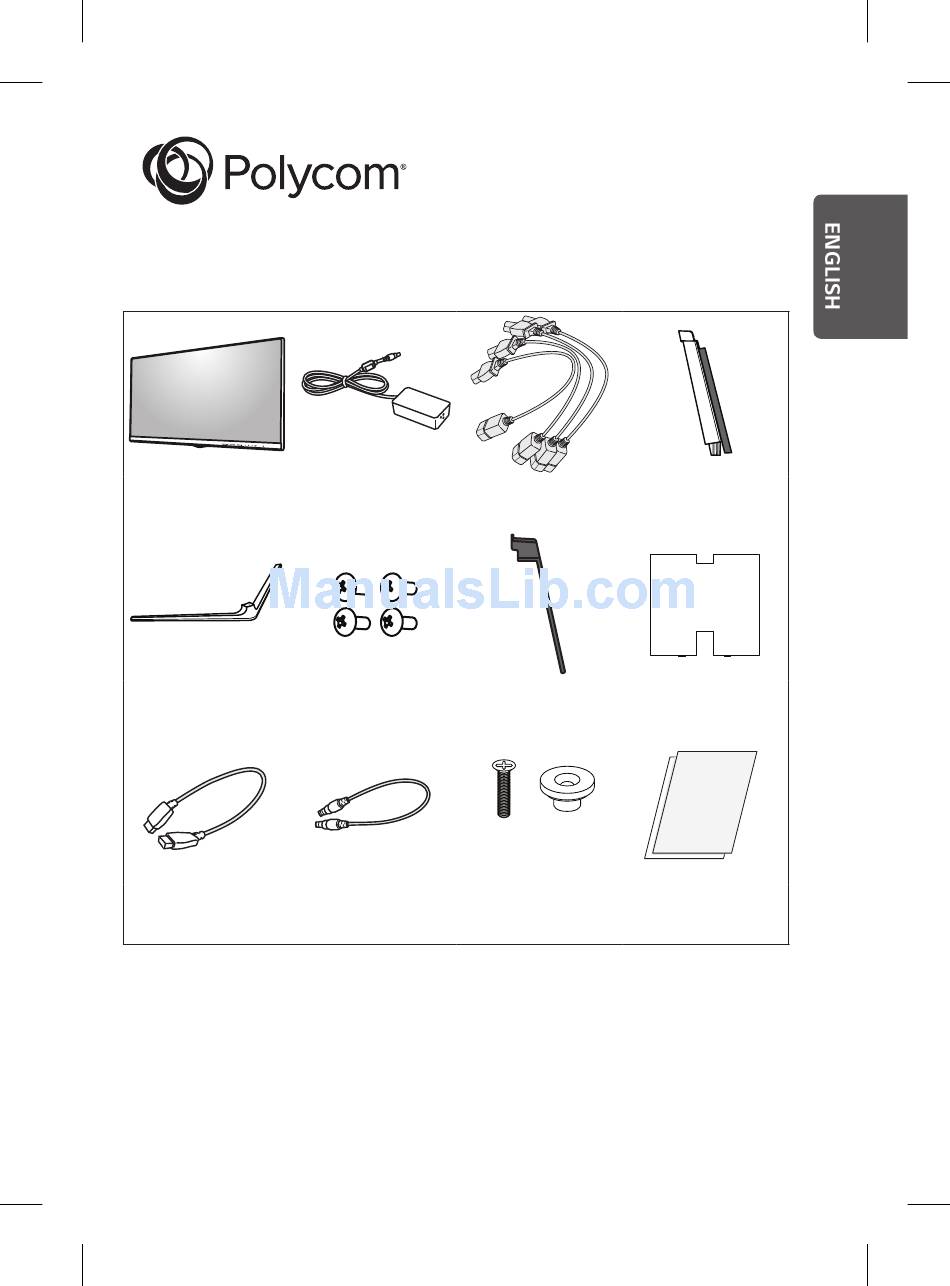

Set Up the Polycom® RealPresence® Group Convene™
Display
Stand base
HDMI cable
DC-to-DC jumper
© 2015, Polycom, Inc. All rights reserved. POLYCOM® and the names and marks as-
sociated with Polycom's products are trademarks and/or service marks of Polycom,
Inc. and are registered and/or common law marks in the United States and various
other countries. No portion hereof may be reproduced or transmitted in any form or
by any means, for any purpose other than the recipient's personal use, without the
express written permission of Polycom.
P/no. MFL69143011 (1503-REV00)
AC/DC adapter
Screws (4 pcs)
(M4 X L10)
2 Screws and
cable
www.polycom.com
*MFL69143011*
4 AC Power
Stand body
adapters
Cable cover
Rear cover
Easy Setup Guide
2 T-Nuts
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the realpresence group convene and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom realpresence group convene

Summary of Contents for Polycom realpresence group convene

  • Page 1 2 T-Nuts www.polycom.com © 2015, Polycom, Inc. All rights reserved. POLYCOM® and the names and marks as- sociated with Polycom’s products are trademarks and/or service marks of Polycom, Inc. and are registered and/or common law marks in the United States and various other countries.

  • Page 2: Assemble The Stand

    Open ASSEMBLE THE STAND brack Gath Use the packing material from the lower portion of the display as a platform for assembly. Do not stand the unit up until the installation and cabling are complete. INSTALL THE CAMERA Unpack the RealPresence Group Series co- dec and camera.
  • Page 3 Open the hinge on the camera and insert the hinge into the camera bracket on the rear top of the display. Gather the excess cable and secure with the cable ties. Do not carry display by holding the base. Do not carry the display upside down by just holding the base.

  • Page 4: Connect Cables

    Plug the DC-to-DC jumper between the display and the codec. Connect and route all cables through the cable management channel. Note: Generic cables If you use generic cables not certified by LG and Polycom, the screen may not display or there may be image noise.
  • Page 5 INSTALL THE CODEC Install the RealPresence Group Series codec by inserting the T-nuts into the keyholes on the back of the display. Connect the DC power, LAN, HDMI, and camera cables to the codec. Refer to the RealPresence Group Series 500 Setup Sheet for details. Route the LAN and DC power supply cables between the codec and dis- play and then through the cable channel at the rear of the stand.
  • Page 6 MANAGE THE CABLES Insta Stand Hinge the s Cable cover Arrange the cables so that they run below the stand hinge and then cover them with the cable cover from the bottom up. You can disassemble the cable cover by following the assembly instruc- tions in reverse order.

  • Page 7: Install The Rear Cover

    INSTALL THE REAR COVER Install the rear cover on the stand by fitting the hooks on the cover into the slots on the back of the display and sliding into place. over...

  • Page 8: Connect Power

    CONNECT POWER Four AC power adapter cables are supplied with the display. Select the ap- propriate AC power adapter cable for your geographic region. Connect the cable to the power supply input. Connect the AC power cable, provided with the RealPresence Group Series codec, to the AC power adapter cable. (shipped with codec) DC Switch...
  • Page 9 CONNECT THE HEADPHONES (OPTIONAL) e ap- Bottom Center of t the the Display cable.

  • Page 10: Power On The System

    Automatic Power Down after four hours and it will not wake up for a video call without manually turning on the display. When the codec finishes booting up, refer to the Polycom RealPresence Group Series Administrator Guide for details on codec settings configuration and IP connectivity.

  • Page 11: Adjust The Angle

    ADJUST THE ANGLE Rear Front Warnings When you adjust the angle, do not hold the stand as shown on the following illustration. You may injure your fingers. Be careful not to touch or press the screen area when adjusting the angle of the monitor.
  • Page 12 HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. For more information about the components of the RealPresence Group Series Media Center, refer to the documentation at http://support.polycom.com/PolycomService/support/us/support/video/ group_series/group_packaged_solutions.html .
  • Page 13 arks...
