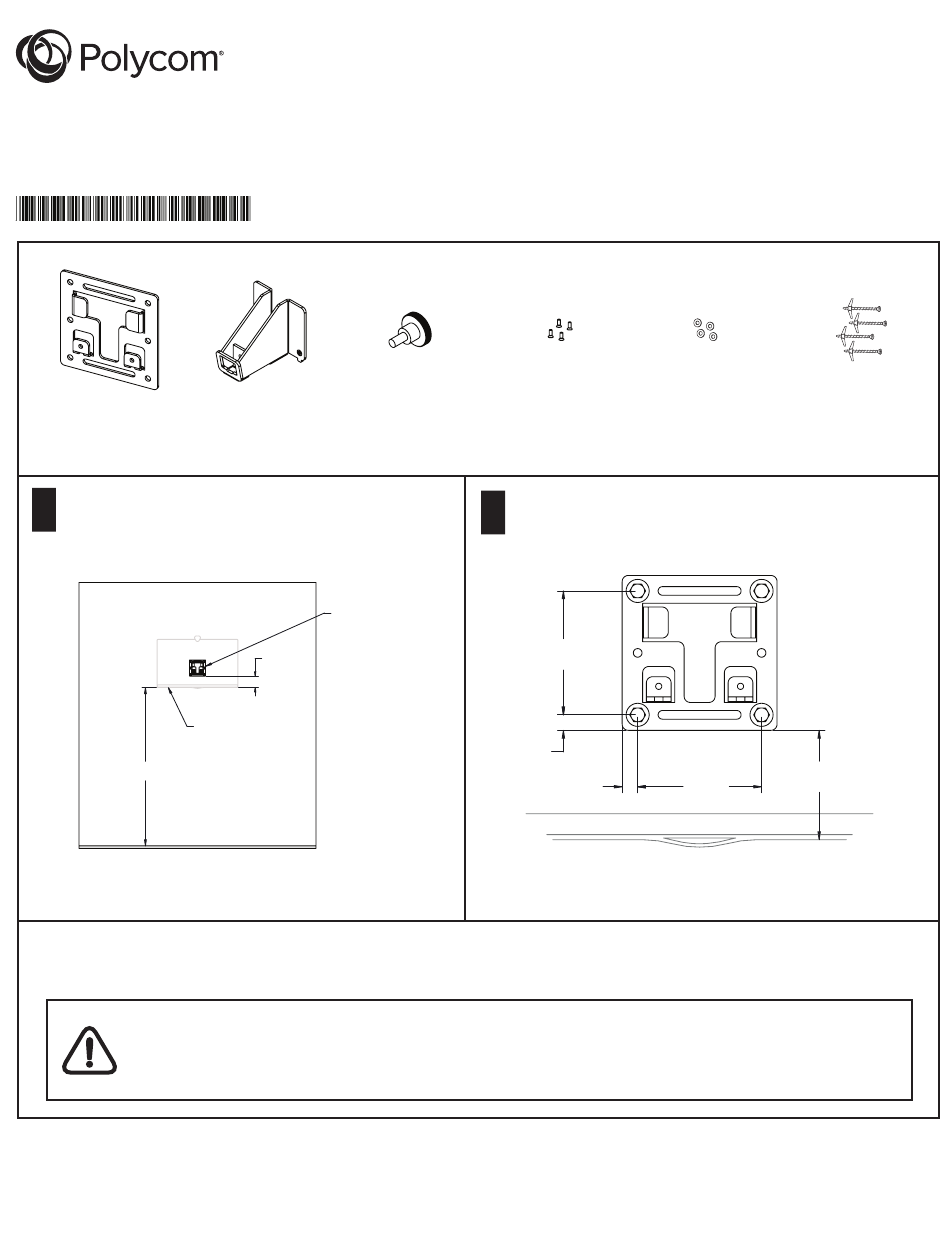

Polycom RealPresence Group Convene Wall Mount Setup Sheet Supplement

This supplement describes how to install the Polycom
RealPresence Group Convene stand. Refer to the
1725-71937-001A
Wall Mount Plate Wall Mount Plate Arm
1343-71937-001 Bracket
1342-71937-001
Determine the desired location of the display and the location
1
of the wall mount plate as shown below.
Room Wall
Bottom Face of
Display
Desired Display Height Location
For more information about the components of the RealPresence Group Convene, refer to the documentation at
http://support.polycom.com/PolycomService/support/us/support/video/group_series/group_packaged_solutions.html.
This product is intended for professional installation by a qualified installer. It is essential to correctly assess the
strength of the wall to ensure that the wall mounting hardware can safely anchor the product. If the installation of the
wall mounting hardware is not done correctly, the product could fall and cause severe injury or property damage.
Polycom is not liable for any injury or damage caused by mishandling or improper installation.
© 2015, Polycom, Inc. All rights reserved. POLYCOM® and the names and marks associated with Polycom's products are trademarks and/or service marks of
Polycom, Inc. and are registered and/or common law marks in the United States and various other countries. No portion hereof may be reproduced
or transmitted in any form or by any means, for any purpose other than the recipient's personal use, without the express written permission of Polycom.
Polycom ® RealPresence
Wall Mount Setup Sheet Supplement
®
RealPresence
the Polycom RealPresence Group Convene Setup Sheet for more information.
(2) M4 x 8 Knurled
Thumb Screw
1601-71937-001
Wall Mount Plate
1343-71937-001
3.5"
(88 mm)
www.polycom.com
® Group Convene
®
Group Convene Wall Mount instead of the supplied
TM

Supplied hardware for drywall applications

(4) 1/4-20 x 2-1/2" (4) 1/4" Washer
Hex Head Bolt 1602-61465-001
1601-61806-001
Drill the mounting holes for the wall mount plate as shown using
2
the VESA 100 mm x 100 mm hole pattern. If needed, use the wall
plate as a template for drilling the holes.
3.9"
(100 mm)
.5"
(13 mm)
.5" (13 mm)
TM
(4) 1/4-20
Toggle Anchor Insert
1650-28296-001
3.5"
(88 mm)
3.9"
(100 mm)
1
