Magnum MEC46 Product Instruction Manual

Binding system
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Product instruction manual
Magnum® MEC46 Binding System
Magnum MEC46 has been designed to be user friendly,
however we strongly recommend you take a few minutes
to read through this manual to ensure correct operation.
Keep this manual safe for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEC46 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum MEC46

Summary of Contents for Magnum MEC46

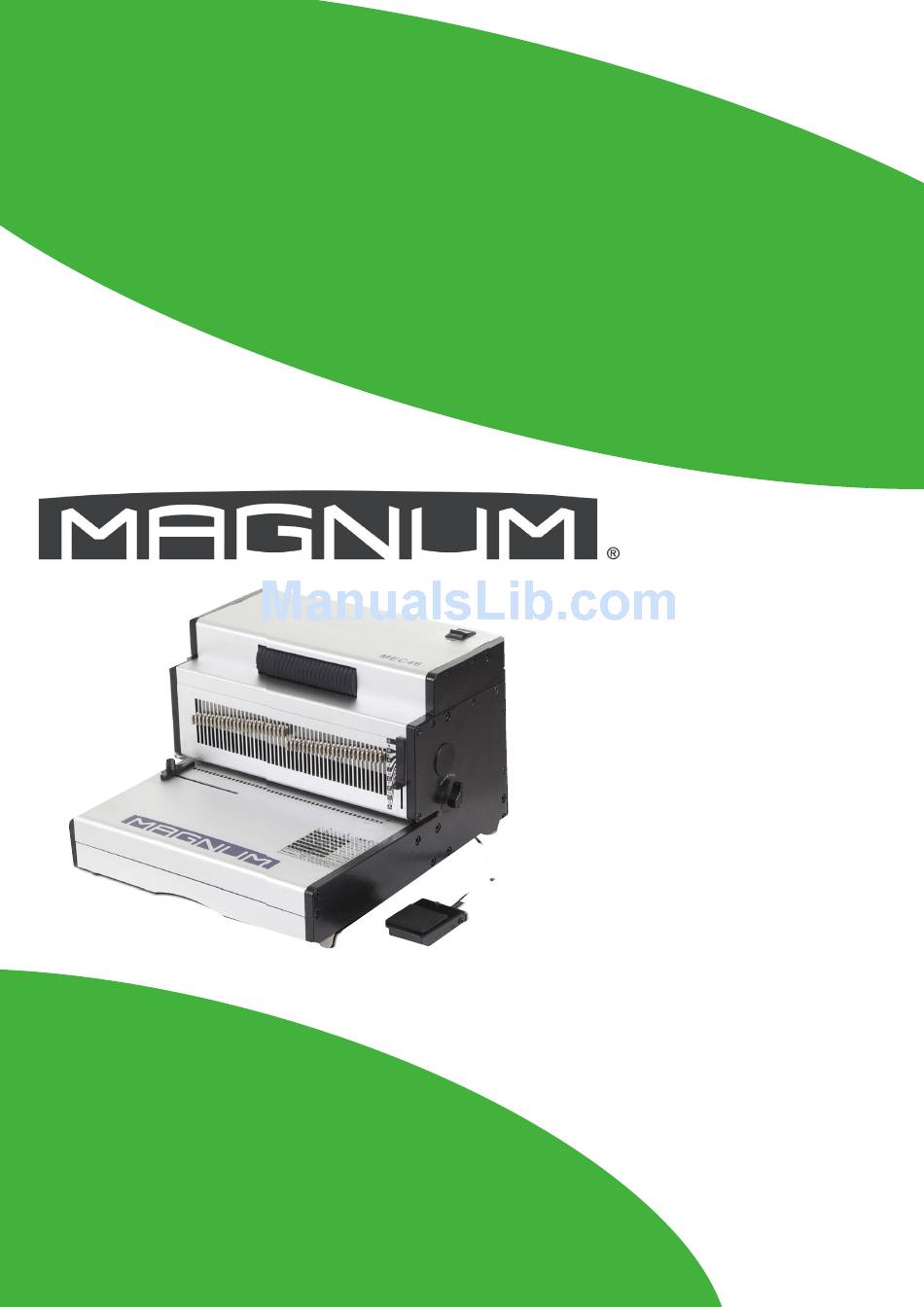

  • Page 1 Product instruction manual Magnum® MEC46 Binding System Magnum MEC46 has been designed to be user friendly, however we strongly recommend you take a few minutes to read through this manual to ensure correct operation. Keep this manual safe for future reference.

  • Page 2: Important Safety Instructions

    Inserting roller ENGLISH Punch/bind button Back margin adjustment Adjustable edge guide Coil diameter selector Foot pedal Waste tray CAPABILITIES Punching Capacity Technical Data Recommended Paper sheets Paper dimensions Punching holes 25 sheet PVC COVER 2 sheets Slot pitch 6.28mm Adjustable edge guide yes- rotary Voltage: 220-240VAC 50/60Hz...
  • Page 3 COIL DIAMETER & DOCUMENT SIZES Coil diameter sizes To select the correct size coil for a document use the document measure card,stick on the baseplate. SET UP Ensure the machine is on Check the waste tray is empty Fit the supplied power lead to Turn the "bind/punch"...
  • Page 4 ENGLISH BINDING A DOCUMENT MAX 25 (80gsm) Punch front and back covers Punch sheets in small batches Switch the inserting roller on. Collate the document. Load the first. so as ont to overload the coil on to the first 3 holes. machine or the user.

  • Page 5: Troubleshooting

    TROUBLESHOOTING Problem Clause Solution The machine doesn't bind/punch Machine is not switched on Switch on machine at rear Punched holes are not central Edge guide not set Adjust edge guide until hole pattern is correct Check waste tray is empty. Check for blockage Machine will not punch Blockage to paperentry...

  • Page 6: Warranty & Incorrect Use

    IMPORTANT INFORMATION Your Magnum Binding System should reach you in perfect condition, however please retain all of the original packaging once you have unpacked your Binding System in case you need to return it for repair. If your system arrives damaged or faulty in anyway, this must be reported to your supplier immediately.
