Atlas AE 60 Operating Instructions Manual

Spin/pull tool
Hide thumbs

Advertisement

Quick Links

Download this manual
AE 60
OpErAting instructiOns

Advertisement

loading
Need help?

Need help?

Do you have a question about the AE 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas AE 60

Summary of Contents for Atlas AE 60

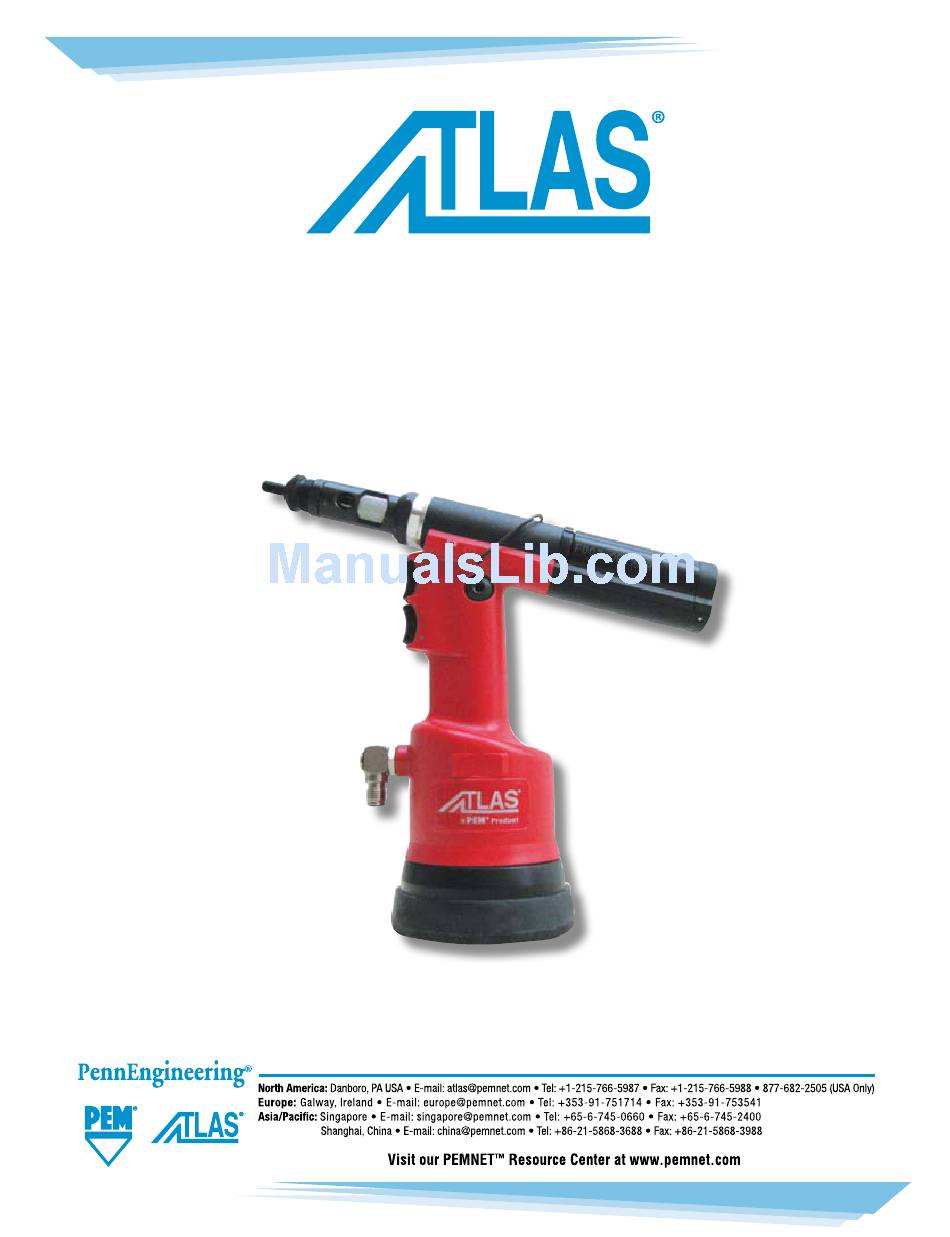

  • Page 1 AE 60 OpErAting instructiOns...

  • Page 2: Safety Measures And Requirements

    GENERAL NOTES AND USE The tool can be employed only for threaded inserts with thread of M3 to M8 (metreic tool) or #6-32 to 5/16-18 (unified tool) diameter. The AE 60 oil WARNING! Before using the pneumatic system assures more power than the tool, assemble the protection pneumatic system used for other models.

  • Page 3: Main Components

    MAIN COMPONENTS A)............................Threaded tie rod B)................................Head C)..........................Ring-nut clamping head D)........................Tensile strength pushbutton E)..........................Unscrewing pushbutton F)......................Insertion Pin Hole Dechucking clutch G).......................... Regulation stroke ring nut H)........................... Balancer connection I)................................Motor L)............................... Oil tank plug M)........................Compressed air connection N)............................

  • Page 4: Technical Data

    TECHNICAL DATA • Working pressure..........................6 BAR • Min. int. diam. of the compressed air feeding hose............min. diam = 8mm • Air consumption per cycle........................ 3.6 Lt. • Max power......................... 6 BAR -14224 N • Weight............................2.130 Kg • Working temperature........................-5˚/+50˚C •...
  • Page 5 OPERATING INSTRUCTIONS Make sure that the couple tie-rod/head mounted on your riveting tool is suitable for the insert to clamp; otherwise, change size accordingly. Usually the riveting tool is supplied with the couple tie-rod/head corresponding to a M8 thread. Before using the riveting tool and after any change of size, perform the following operations according to the size and thickness of the part to clamp.

  • Page 6: Change Of Size

    CHANGE OF SIZE Depending on insert thread, it is necessary to replace the couple “tie-rod/head” as follows: Picture 1. Loosen the ring nut by means of a 25-mm standard spanner and remove the riveting tool head. Picture 2. Make the pin supplied pass through the pertinent service hole located on the cone carrying head and apply a light pressure on the head inwards, in order to dechuck the tie rod clutch, at the same time, unscrew the tie rod and extract it.
  • Page 7 TOPPING UP THE OIL-DYNAMIC CIRCUIT You need to top up the oil-dynamic circuit after a long period of work, when you note a power loss. Put the riveting tool (DWELL AND NOT FED) in a horizontal position and remove the plug (A), by means of a 5 mm Allen wrench (equipped with the riveting tool);...
  • Page 8 SPARE PARTS - METRIC TOOL PennEngineering • www.pemnet.com...
  • Page 9 SPARE PARTS - METRIC TOOL CODE QTY. DESCRIPTION 721779 Tool body 712269 Body cover 711684 Cylinder bottom 721685 Pneumatic piston 711780 Connector 721689 Oleodynamic cylinder 711781 Stem 711691 Silencer 711692 Screw M7x1 711782 Dampener 711694 Lower coil 711695 Threaded sleeve 721698 Valve body 711700...
  • Page 10 SPARE PARTS - METRIC TOOL PennEngineering • www.pemnet.com...
  • Page 11 SPARE PARTS - METRIC TOOL CODE QTY. DESCRIPTION 710376 O ring -2-9 P 710918 O ring -2-5 P 710919 O ring -2-4 P 710003 O ring -5-052 P 710342 O ring -2-17 P 710594 O ring -2-12 P 711061 O ring -5-614 P 711731 O ring -2-18 (N552/90) P 711732...
  • Page 12 SPARE PARTS - UNIFIED TOOL PennEngineering • www.pemnet.com...
  • Page 13 SPARE PARTS - UNIFIED TOOL CODE QTY. DESCRIPTION 721779 Tool body 712269 Body cover 711684 Cylinder bottom 721685 Pneumatic piston 711780 Connector 721689 Oleodynamic cylinder 711781 Stem 711691 Silencer 711692 Screw M7x1 711782 Dampener 711694 Lower coil 711695 Threaded sleeve 721698 Valve body 711700...
  • Page 14 SPARE PARTS - UNIFIED TOOL PennEngineering • www.pemnet.com...
  • Page 15 SPARE PARTS - UNIFIED TOOL CODE QTY. DESCRIPTION 710376 O ring -2-9 P 710918 O ring -2-5 P 710919 O ring -2-4 P 710003 O ring -5-052 P 710342 O ring -2-17 P 710594 O ring -2-12 P 711061 O ring -5-614 P 711731 O ring -2-18 (N552/90) P 711732...
  • Page 16 SPARE PARTS METRIC AND UNIFIED TOOLS CODE QTY. DESCRIPTION 71345169 Connector 71C00764 Bearing 61801 71345646 Gear cage 71345644 Planetary gear 71345643 Crown gear 71345642 Washer 71C00763 Bearing AY7 ZZ C2 71345640 Connector 71C00761 Spring pin 71345639 Tongue 71345638 Rotor 71345637 Outside body 71345641 Back cap...
