1. INTRODUCTION

1.1 General Description

MAGPRO96 is an analogue addressable fire panel with maximum coverage of 96 zones and connecting 1 to 4 loops.
The panel supports communication protocol MAGPRO (MAGPRO96-L250 loop controller).
In the configuration of the MAGPRO96 panel can be implemented up to 4 MAGPRO96-L250 loop controllers.
An arbitrary number of devices can be added to each zone thus ensuring the easy adaptation of the system to any type
of configuration.
To avoid or significantly diminish problems when mounting the system it must be carefully planned prior to installa-
tion. This includes: establishing an address for every device and planning a name of maximum 40 digits (including the
spaces) for each address, thereby ensuring easy access to the device.
According to the acting standards for establishing fire systems and the plan of the building, the devices must be grouped
in zones.
!
Every MAGPRO96-L250 loop controller provides up to 250 devices (detectors, sounders
and modules, regardless of the type).

1.2 General Specifications

The front panel consists of graphic LCD display (dimensions 240x320) with a built-in touch screen and a light-emitting
diode indication. Separate operator and engineer passwords provide access to the functions of the panel. The internal
space of the box is protected with the help of secret screws.
Up to four loop controllers MAGPRO96-L250 can be supplemented to the mother board.
The system can be expanded by connecting several fire panels MAGPRO96 to the Ethernet, using TCP/IP for com-
munication between them.
The panel has a built-in real time clock and calendar, allowing day and night time modes of work.
Switching over between the two modes can be automatic or manual. Events like FIRE, RESET, FAULT, etc., are saved in
the memory, thereby creating an event log-file. It contains the time and date, the address of the device, the type (module
or detector), the name of the device, the zone, the name of the zone, etc.
4

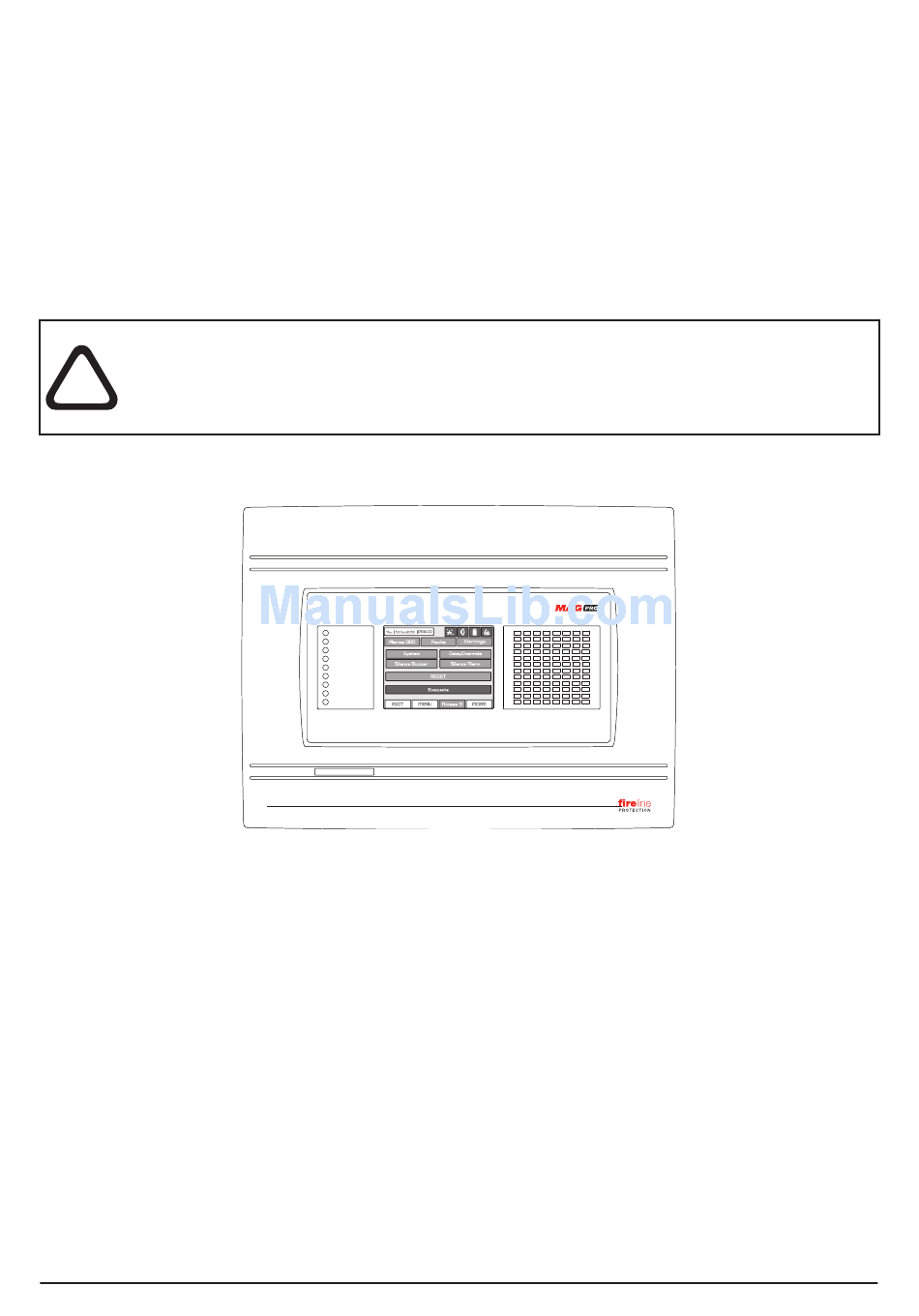

General view of the MAGPRO96 Fire Panel
