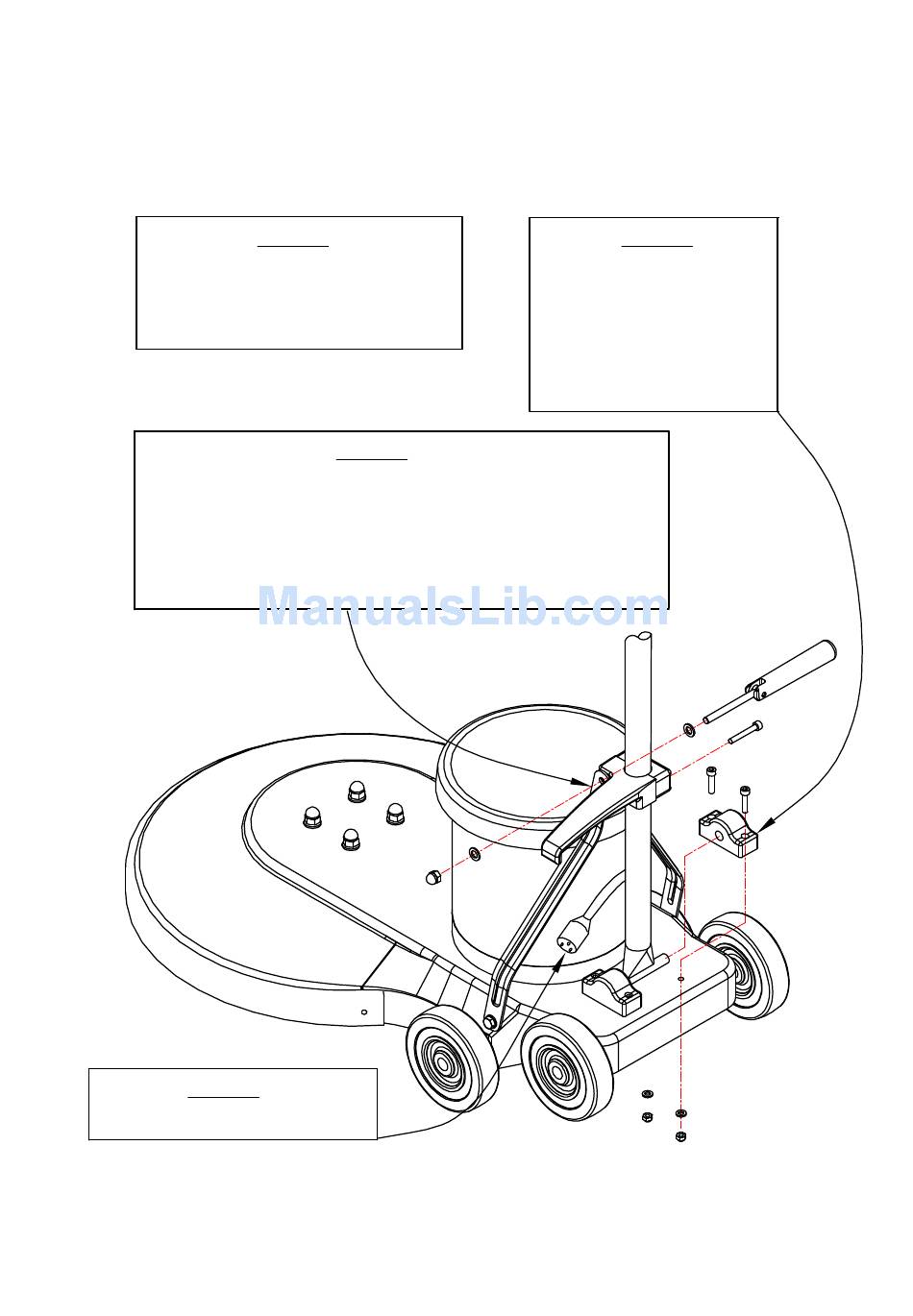

Handle Release Assembly Instructions

STEP 1
1) Remove nut and space from handle bracket
assembly.
2) Push the two handle brackets forward so
they lean against the motor.
1) Place cord wrap assembly (2 pieces) in place and snug them together with
6mm hex bolt. (Actual cord wrap faces to the left of the machine when you are
standing behind it.)
2) Assemble hardware in the following order: spacer, left handle bracket,
nylock nut. (Do not over tighten nylock nut. Only tighten it enough to hold
handle in place when compression lever is in the down position.)
STEP 4
1) Connect the power cords together.
STEP 3
-5-
STEP 2
1) Remove handle clamp clocks
with 5mm hex head bolts.
2) Place handle assembly into
handle clamp blocks.
3) Reattach the blocks to the
base with the 5mm hex head
bolts.
