2-1-3 Chassis Removal
7 POWER CORD
9 REMOVE 6 SCREWS
6 REMOVE CONNECTOR
8 REMOVE CONNECTOR
0 ASSY, PWB MAIN FRONT
qs REMOVE 3 SCREWS
1 REMOVE 4 SCREWS
3 ASSY LOADER
qd ASSY, PWB MAIN DVD
5 FAN-DC
4 REMOVE 2 SCREWS
2 SHIELD LOADER
qa REMOVE 5 SCREWS

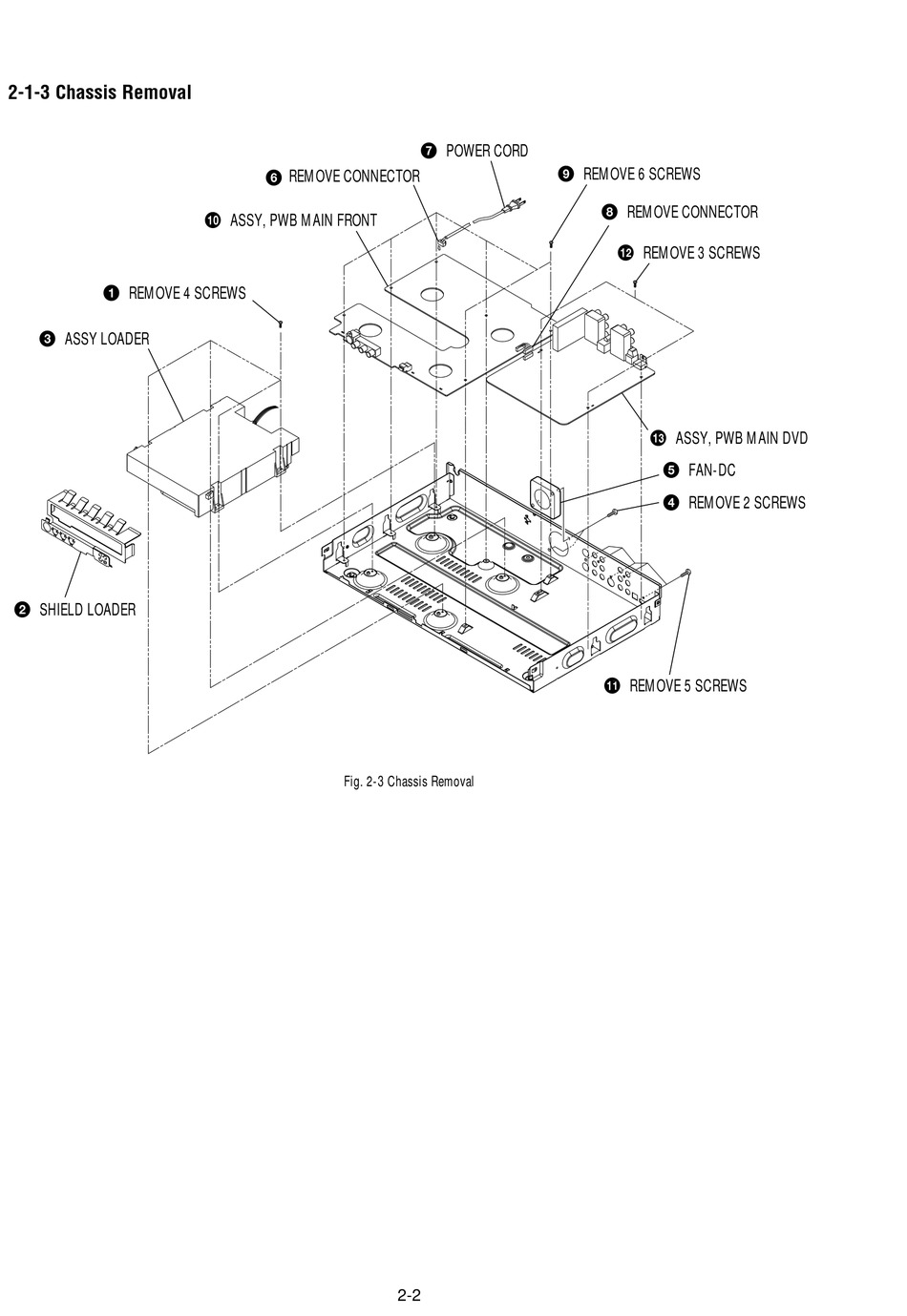

Fig. 2-3 Chassis Removal
